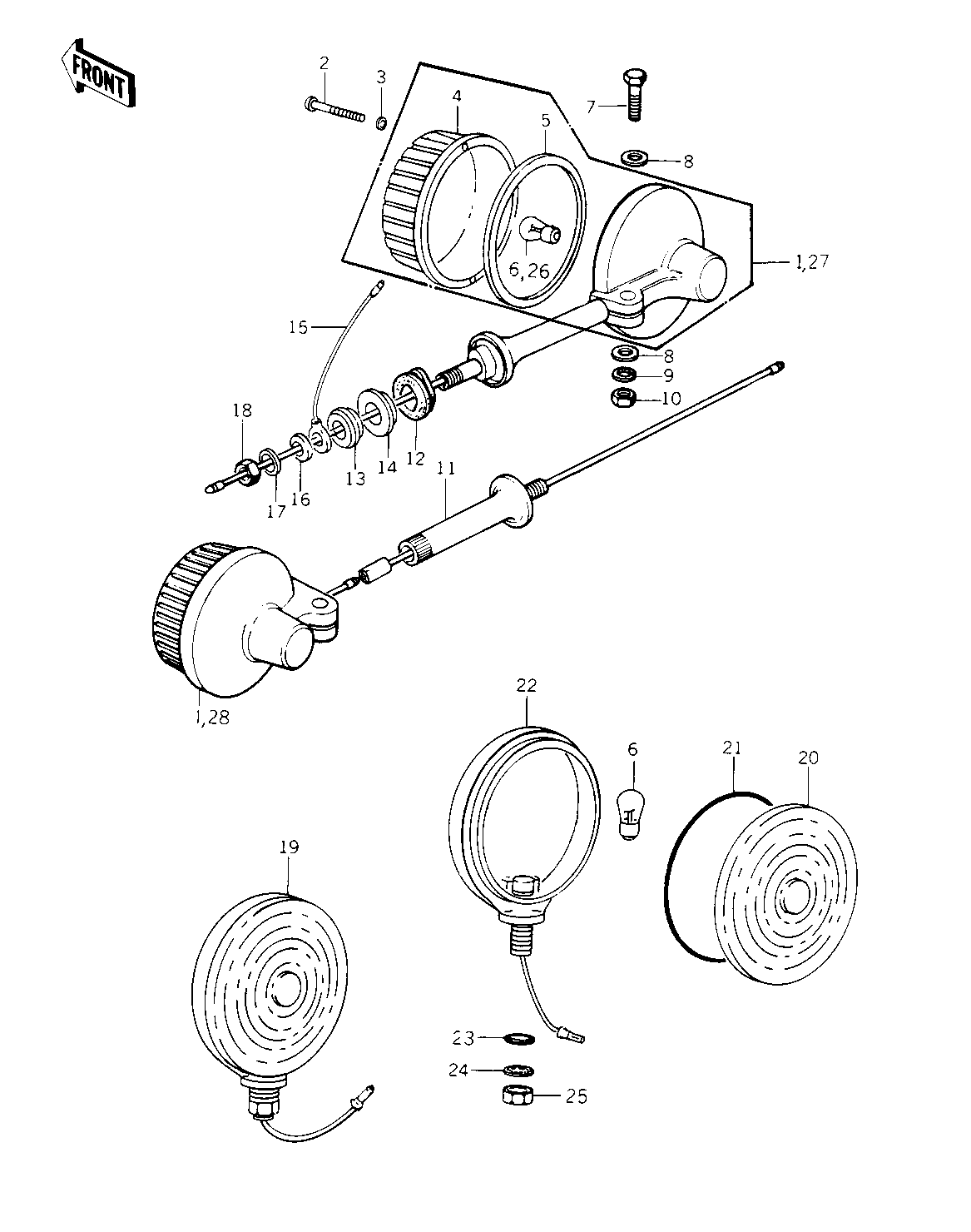

1978 Police 1000 - TURN SIGNALS ('78 C1/C1A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASSY,TURN SIGNA 1 23040-034 2 KZ1000-C1
SCREW-PAN HEAD,4X35 2 220E0435A 4
WASHER-PLAIN,4MM 3 23058-002 4
LENS-SIGNAL LAMP 4 23048-1024 2
GASKET,TURN SIG LAMP 5 23050-002 2
BULB 12V 32CP 6 92069-055 4
BOLT-UPSET 7 112G0630 2
WASHER PLAIN 6MM 8 411B0600 4
WASHER SPRING 6MM 9 461F0600 2
NUT 6MM 10 311B0600 2
BRACKET-TURN SIG LAM 11 23078-001 2
BRACKET,TURN SIG LAM 11 23051-1006 2 KZ1000-C1A
DAMPER,TURN SIG FITT 12 92075-1014 2
COLLAR,TURN SIG FITT 13 92027-1025 2
DAMPER RUBBER,SIG LM 14 92075-158 2
WIRE,LEAD 15 26011-095 2
WASHER PLAIN 10MM 16 411B1000 2
WASHER SPRING 10MM 17 461F1000 2
NUT 10MM 18 315B1000 2
LAMP ASSY, TURN, REA 19 23040-055 2 INCLUDES DAMPER, NUT & WASHER
LENS,REAR TURN SIGNA 20 23048-018 2 STD, AMBER
LENS,RED REAR TS OPT 21 23048-019 2 OPT, RED
LENS,BLUE REAR TS OP 21 23048-020 2 OPT, BLUE
"0" RING,REAR TURN S 21 92055-103 2
LAMP ASSY, TURN, REA 22 23040-055 2
GASKET OIL PIPE BANJ 23 92065-037 2
WASHER LOCK 12MM 24 464G1200 2
NUT 25 340BA1600 2
BULB,12V 23/8W 26 92069-060 2 KZ1000-C1A
LIGHT ASSY,TRN SG,R. 27 23040-1005 1 KZ1000-C1A
LIGHT ASSY,TRN,SG,L. 28 23040-1006 1 KZ1000-C1A
