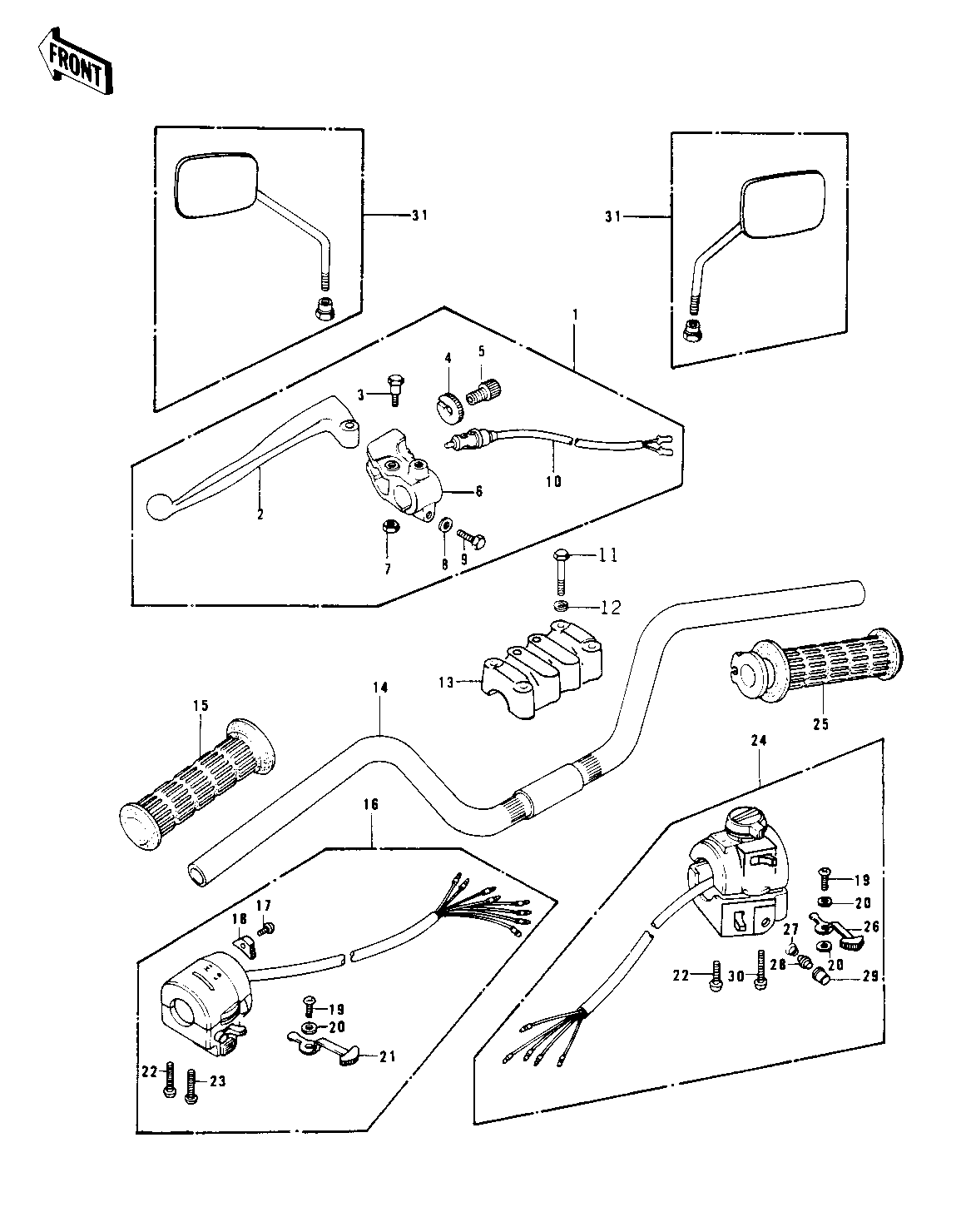

1978 Police 1000 - HANDLEBAR ('78 C1/C1A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER ASSY,CLUTCH | 1 | 46076-054 | 1 | ||
| LEVER,CLUTCH | 2 | 46092-023 | 1 | ||
| BOLT,HEX HEAD | 3 | 92007-047 | 1 | ||
| NUT,CABLE ADUST NUT | 4 | 46056-007 | 1 | ||
| SCREW CABLE ADJUST | 5 | 46055-003 | 1 | ||
| HOLDER,CLUTCH LEVER | 6 | 46094-019 | 1 | ||
| NUT | 7 | 92019-008 | 1 | ||
| WASHER PLAIN 6MM | 8 | 410B0600 | 1 | ||
| BOLT HEX HEAD 6X25 | 9 | 110N0625 | 1 | ||
| SWITCH,CLUTCH | 10 | 27043-002 | 1 | ||
| BOLT 8X38 | 11 | 92001-1405 | 4 | ||
| WASHER SPRING 8MM | 12 | 461F0800 | 4 | ||
| HOLDER,HANDLEBAR | 13 | 46012-1001 | 1 | ||
| HANDLE | 14 | 46003-4008 | 1 | ||
| RUBBER,L.H GRIP | 15 | 46075-028 | 1 | ||
| HOUSING-ASSY-CNTL,LH | 16 | 46091-4002 | 1 | ||
| SCREW CNTSNK HD 3X8 | 17 | 221B0308A | 1 | ||
| KNOB,LIGHTING SW L.H | 18 | 46044-013 | 1 | ||
| SCREW PAN HEAD 3X5 | 19 | 220B0305A | 2 | ||
| WASHER | 20 | 92095-010 | 3 | ||
| KNOB,LIGHTING SW L.H | 21 | 46043-005 | 1 | ||
| SCREW PAN HEAD 5X30 | 22 | 220B0530 | 2 | ||
| SCREW-PAN-CROS | 23 | 220B0535 | 1 | ||
| HOUSING ASSY,R.H | 24 | 46091-1009 | 1 | ||
| GRIP ASSY,THROTTLE | 25 | 46019-038 | 1 | ||
| KNOB,LIGHTING SW R.H | 26 | 46043-004 | 1 | ||
| SWITCH ASSY,HORN BUT | 27 | 27010-1009 | 1 | ||
| SWITCH ASSY,HORN BUT | 28 | 27010-1009 | 1 | ||
| SWITCH ASSY,HORN BUT | 29 | 27010-1009 | 1 | ||
| SCREW-PAN-CROS | 30 | 220B0540 | 1 | ||
| REAR VIEW MIRROR | 31 | 56001-1006 | 2 |
