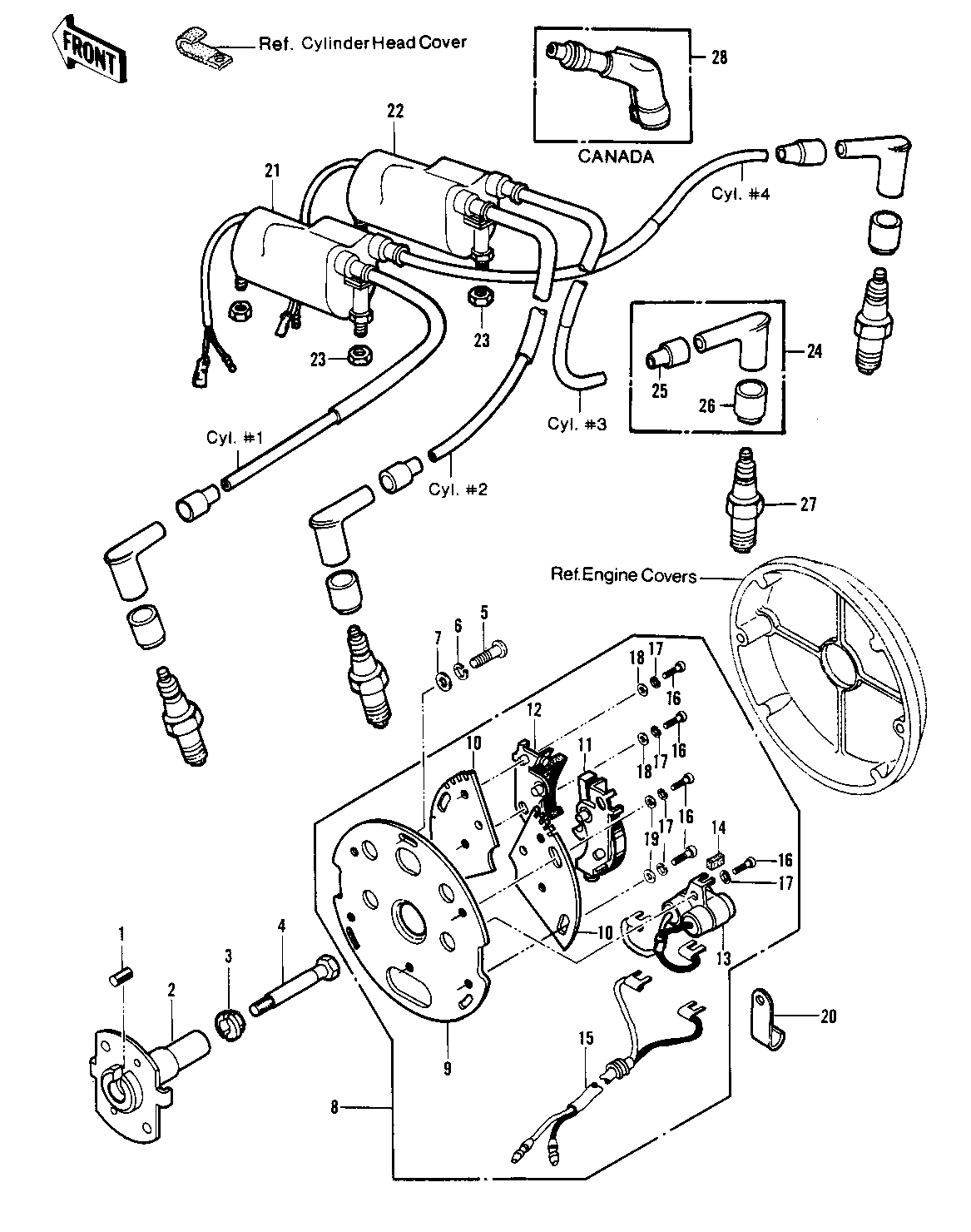

1978 Police 1000 - IGNITION ('78 C1/C1A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-SPRING,4X8 | 1 | 555A0408 | 1 | ||
| ADVANCER,SPARK | 2 | 21148-010 | 1 | ||
| WASHER,SPARK ADVANCE | 3 | 92022-244 | 1 | ||
| BOLT,SPARK ADVANCER | 4 | 92001-113 | 1 | ||
| SCREW PAN HEAD 5X12 | 5 | 220B0512 | 3 | ||
| WASHER SPRING 5MM | 6 | 461F0500 | 3 | ||
| WASHER PLAIN 5MM | 7 | 411B0500 | 3 | ||
| BREAKER,CONTACT | 8 | 21135-011 | 1 | ||
| .PLATE,CONTACT BREAKE | 9 | 21021-004 | 1 | ||
| .PLATE,CONTACT BREAKE | 10 | 21156-010 | 2 | ||
| .BREAKER,CONTACT | 11 | 21008-027 | 1 | "L" MARK | |
| .BREAKER,CONTACT | 12 | 21008-028 | 1 | "R" MARK | |
| .CONDENSER | 13 | 21013-035 | 1 | ||
| .FELT OIL | 14 | 21019-005 | 1 | ||
| .WIRING HARNESS,BRAKE | 15 | 21029-037 | 1 | ||
| .SCREW PAN HEAD 4X8 | 16 | 220B0408 | 9 | ||
| .WASHER SPRING 4MM | 17 | 461F0400 | 9 | ||
| .WASHER PLAIN 4MM | 18 | 410B0400 | 4 | BREAKER PLATE | |
| .WASHER PLAIN 4MM | 19 | 410B0400 | 4 | BASE PLATE | |
| WASHER PLAIN 4MM | 19 | 410B0400 | 4 | BASE PLATE | |
| CLAMP,WIRING HARNESS | 20 | 21126-008 | 4 | ||
| IGNITION COIL | 21 | 21121-1003 | 1 | CYL. NOS. 1 & 4 | |
| COIL,IGNITION,#2&3 | 22 | 21121-1004 | 1 | CYL. NOS. 2 & 3 | |
| NUT,LOCK 6MM | 23 | 92017-014 | 4 | ||
| UNAVAILABLE IN PRICE BOOK | 24 | 21160-1010 | 4 | USA | |
| .GROMMET,SPARK PLG CA | 25 | 21132-005 | 4 | USA | |
| .GROMMET-PLUG CAP,A | 26 | 21131-004 | 4 | USA | |
| SPARK PLUG B8ES | 27 | B8ES | 4 | ||
| SPARK PLUG B8ES | 27 | B8ES | AL | ||
| SPARK PLUG W24ES-U | 27 | W24ESU | AL | ||
| CAP,SPARK PLUG | 28 | 21160-005 | 4 | CANADA |
| PIN-SPRING,4X8 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADVANCER,SPARK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPARK ADVANCE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SPARK ADVANCER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X12 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BREAKER,CONTACT | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .PLATE,CONTACT BREAKE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .PLATE,CONTACT BREAKE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| .BREAKER,CONTACT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | "L" MARK |
| .BREAKER,CONTACT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | "R" MARK |
| .CONDENSER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .FELT OIL | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .WIRING HARNESS,BRAKE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .SCREW PAN HEAD 4X8 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| .WASHER SPRING 4MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| .WASHER PLAIN 4MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | BREAKER PLATE |
| .WASHER PLAIN 4MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | BASE PLATE |
| WASHER PLAIN 4MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | BASE PLATE |
| CLAMP,WIRING HARNESS | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| IGNITION COIL | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CYL. NOS. 1 & 4 |
| COIL,IGNITION,#2&3 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CYL. NOS. 2 & 3 |
| NUT,LOCK 6MM | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | USA |
| .GROMMET,SPARK PLG CA | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | USA |
| .GROMMET-PLUG CAP,A | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | USA |
| SPARK PLUG B8ES | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B8ES | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | AL |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG W24ES-U | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | AL |
| DESTINATION | |
| REMARKS | |
| CAP,SPARK PLUG | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | CANADA |
