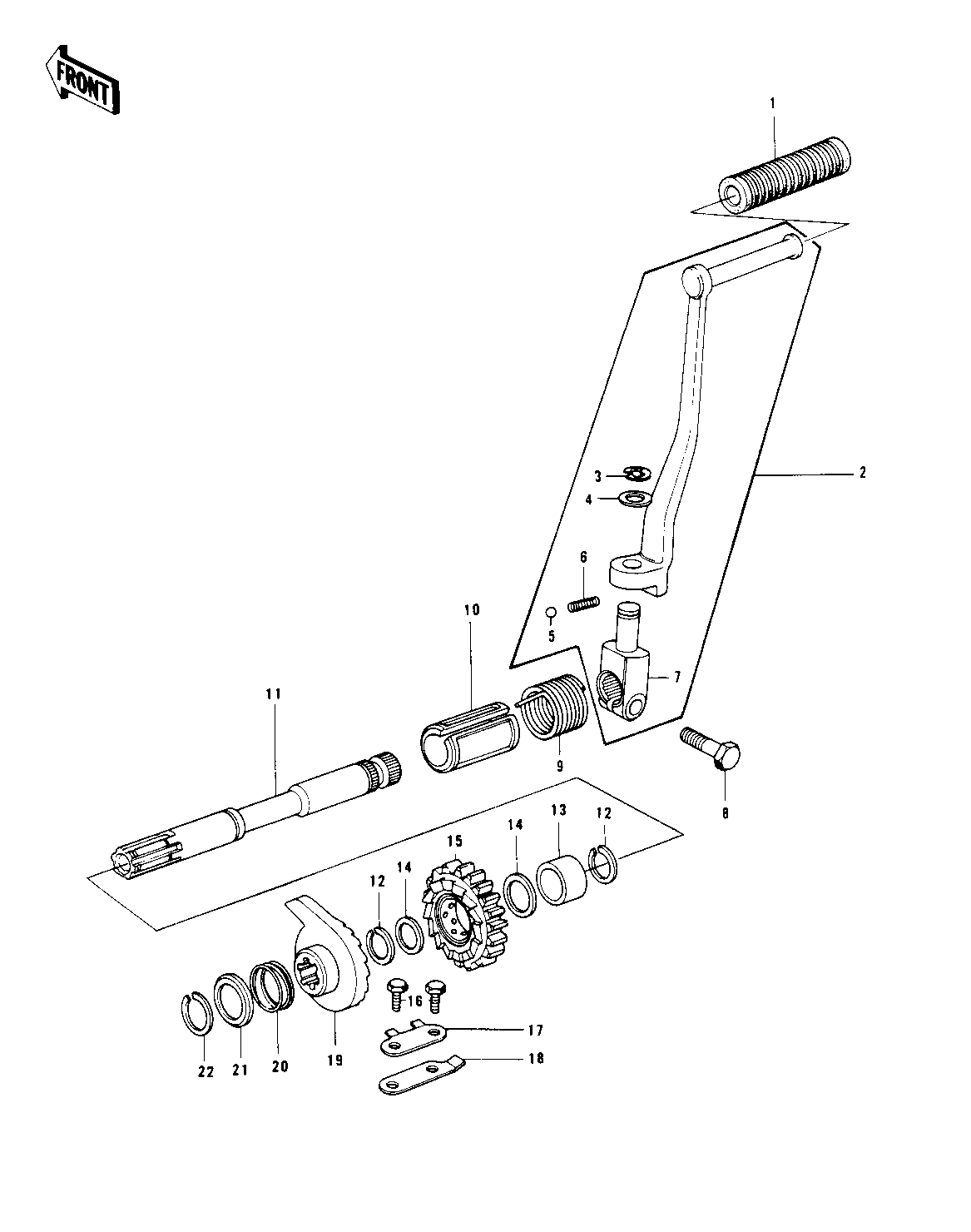

1978 Police 1000 - KICKSTARTER MECHANISM ('78 C1/C1A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RUBBER KICK PEDAL | 1 | 13063-004 | 1 | ||
| PEDAL,KICKSTARTER | 2 | 13058-044 | 1 | ||
| CIRCLIP 10MM | 3 | 482J0100 | 1 | ||
| WASHER BRAKE PEDAL | 4 | 92022-085 | 1 | ||
| BALL STEEL 1/4' | 5 | 600A0800 | 1 | ||
| SPRING KICK PEDAL | 6 | 92081-020 | 1 | ||
| BOSS-KICK PEDAL | 7 | 13061-014 | 1 | ||
| BOLT-HEX HEAD,10X25 | 8 | 114B1025 | 1 | ||
| SPRING,KICKSTARTER | 9 | 92082-004 | 1 | ||
| GUID,KICK SHAFT | 10 | 13070-005 | 1 | ||
| SHAFT,KICKSTARTER | 11 | 13066-029 | 1 | KZ1000-C1 | |
| SHAFT,KICKSTARTER | 11 | 13066-1004 | 1 | KZ1000-C1A | |
| CIRCLIP,25MM | 12 | 92033-025 | 2 | ||
| COLLAR,KICKSHAFT | 13 | 92028-126 | 1 | ||
| WASHER,PLAIN,22MM | 14 | 92022-207 | 2 | ||
| GEAR,KICKSTARTER 19T | 15 | 13068-028 | 1 | KZ1000-C1 | |
| GEAR,KICKSTARTER | 15 | 59051-1006 | 1 | KZ1000-C1A | |
| BOLT-UPSET 6X14 | 16 | 112B0614 | 2 | ||
| WASHER-LOCK | 17 | 92024-036 | 1 | ||
| STOPPER,KICKSTARTER | 18 | 13072-012 | 1 | ||
| RATCHET,KICK SHAFT | 19 | 13078-011 | 1 | ||
| SPRING RATCHET | 20 | 92081-104 | 1 | ||
| CAP,KICKSTARTER | 21 | 92102-008 | 1 | ||
| CIRCLIP,19MM | 22 | 480J1900 | 1 |
