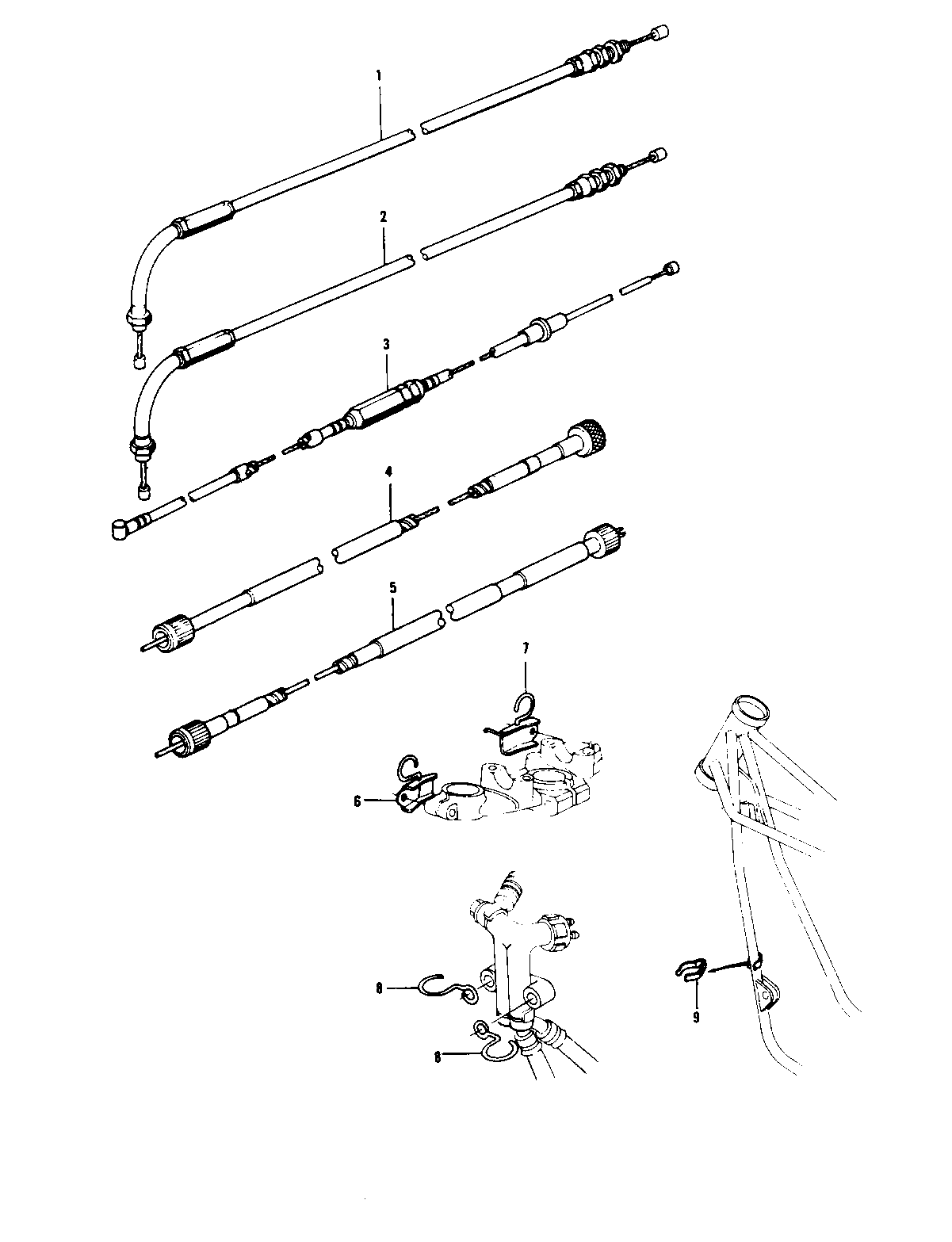

1979 KZ1000 LTD - CABLES ('79-'80 B3/B4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,THROTTLE,PULL | 1 | 54012-142 | 1 | KZ1000-B3 | |
| CABLE,THROTTLE (OPEN) | 1 | 54012-1016 | 1 | KZ1000-B4 | |
| CABLE,THRO.CONT.CLOSE | 2 | 54012-143 | 1 | KZ1000-B3 | |
| CABLE,THROTTLE (CLOS) | 2 | 54012-1017 | 1 | KZ1000-B4 | |
| CABLE,CLUTCH | 3 | 54011-089 | 1 | ||
| CABLE,TACHOMETER | 4 | 54018-015 | 1 | ||
| CABLE,SPEEDOMETER | 5 | 54001-1010 | 1 | KZ1000-B3 | |
| CABLE,SPEEDOMETER | 5 | 54001-1010 | 1 | KZ1000-B3 | |
| CABLE,SPEEDOMETER | 5 | 54001-1024 | 1 | KZ1000-B4 | |
| CLAMP,CABLE | 6 | 92037-090 | 1 | ||
| CLAMP,CABLE | 7 | 92037-104 | 1 | ||
| CLAMP,CABLE | 8 | 92037-092 | 2 | ||
| CLAMP,CABLE | 9 | 92037-093 | 1 |
| CABLE,THROTTLE,PULL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-B3 |
| CABLE,THROTTLE (OPEN) | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-B4 |
| CABLE,THRO.CONT.CLOSE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-B3 |
| CABLE,THROTTLE (CLOS) | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-B4 |
| CABLE,CLUTCH | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,TACHOMETER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,SPEEDOMETER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-B3 |
| CABLE,SPEEDOMETER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-B3 |
| CABLE,SPEEDOMETER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-B4 |
| CLAMP,CABLE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CABLE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CABLE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CABLE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
