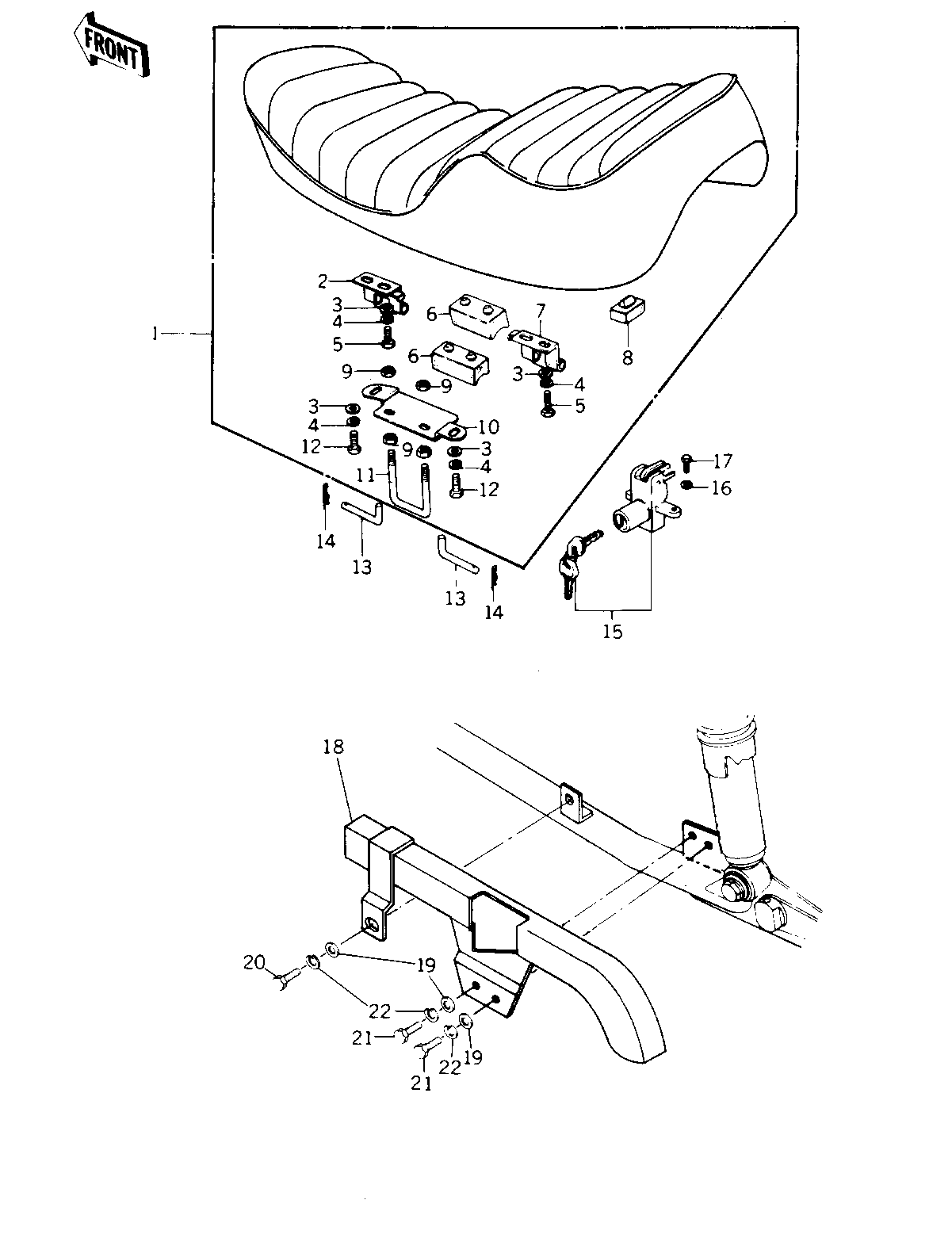

1979 KZ1000 LTD - SEAT/CHAIN COVER ('79-'80 B3/B4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT,LTD 900/1000 | 1 | 53001-130 | 1 | ||
| HINGE,REAR | 2 | 53009-030 | 1 | ||
| WASHER PLAIN 6MM | 3 | 411B0600 | 6 | ||
| WASHER SPRING 6MM | 4 | 461F0600 | 6 | ||
| BOLT-UPSET,6X16 | 5 | 112G0616 | 4 | ||
| DAMPER RUBBER,SEAT | 6 | 92075-139 | 3 | ||
| HINGE,REAR | 7 | 53009-032 | 1 | ||
| DAMPER RUBBER | 8 | 92075-099 | 1 | ||
| NUT 6MM | 9 | 311B0600 | 4 | ||
| BRACKET,SEAT CATCH | 10 | 53058-003 | 1 | ||
| CATCH, SEAT | 11 | 53056-002 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 12 | 110B0-014 | 2 | ||
| PIN,DUAL SEAT PIVOT | 13 | 53011-008 | 2 | ||
| COTTER PIN | 14 | 92041-003 | 2 | ||
| LOCK-ASSY,SEAT | 15 | 27016-5010 | 1 | KZ1000-B3 | |
| LOCK-ASSY,SEAT | 15 | 27016-5010 | 1 | KZ1000-B4 | |
| WASHER SPRING 6MM | 16 | 461F0600 | 1 | ||
| BOLT-UPSET,6X12 | 17 | 112G0612 | 1 | ||
| CASE-CHAIN | 18 | 36014-069 | 1 | ||
| WASHER-PLAIN,6MM | 19 | 411D0600 | 3 | ||
| BOLT-HEX HEAD,6X16 | 20 | 110N0616 | 1 | ||
| BOLT-UPSET | 21 | 112G0614 | 2 | ||
| WASHER SPRING 6MM | 22 | 461F0600 | 3 |
