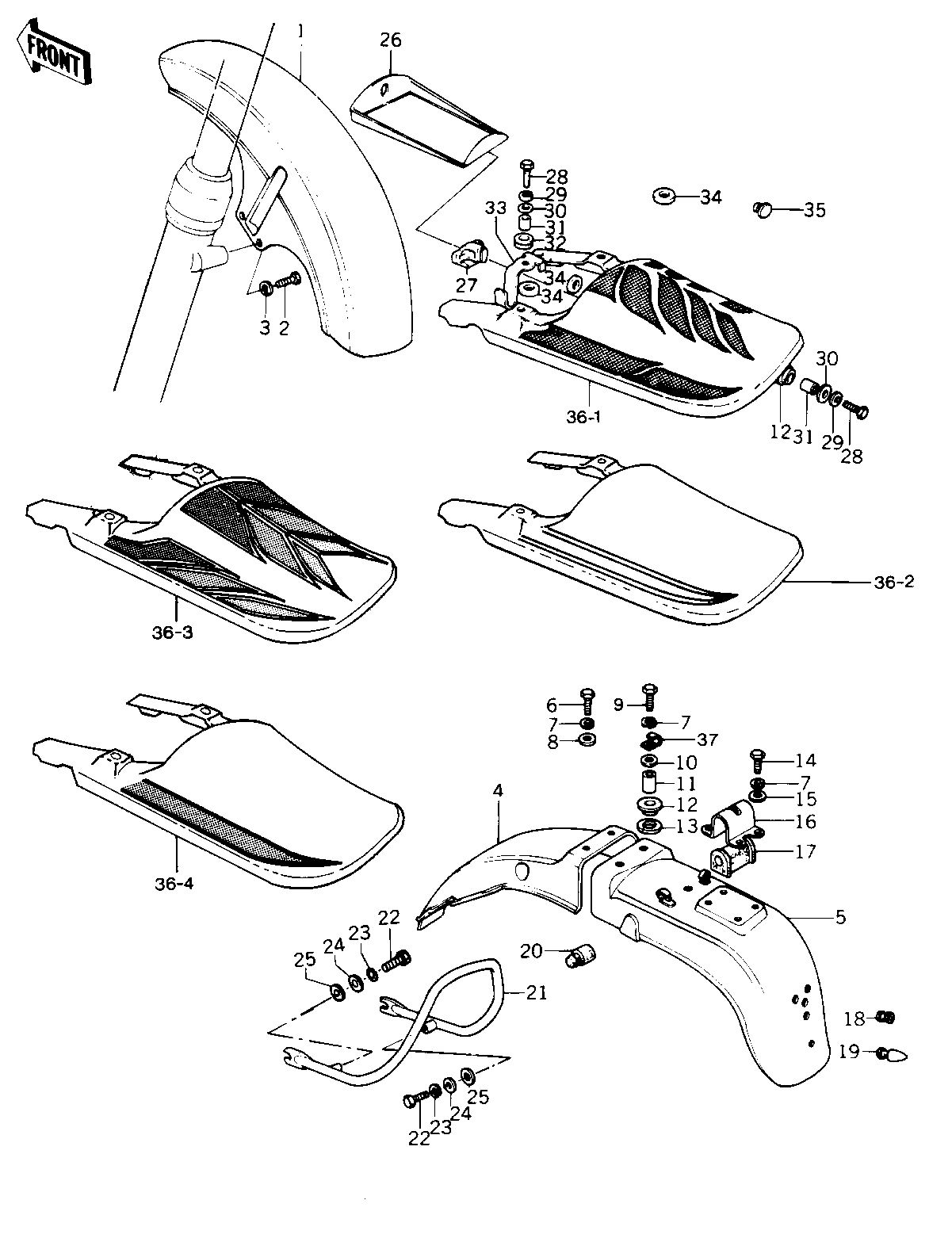

1979 KZ1000 LTD - FENDERS/SEAT COVER ('79-'80 B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR 1 35004-1047 1
BOLT-SMALL-UPSET,8X18 2 115G0818 4
WASHER SPRING 8MM 3 461F0800 4
FENDER-RR 4 35022-154 1 FRONT
FENDER-RR 5 35022-151 1 REAR
BOLT-UPSET 6X14 6 112B0614 2
WASHER SPRING 6MM 7 461F0600 8
WASHER PLAIN 8 92022-024 2
BOLT-UPSET 9 112G0625 2
WASHER,PLAIN,7MM 10 92022-228 2
COLLAR 11 92027-241 2
RUBBER,FENDER COVER 12 92075-174 2
DAMPER RUBBER 13 92075-175 2
BOLT-UPSET,6X16 14 112G0616 4
WASHER PLAIN 6MM 15 411B0600 4
BRACKET,REAR FENDER 16 35026-006 1
DAMPER RUBBER,RR FEND 17 92075-132 1
GROMMET HARNESS 10MM 18 92071-019 1
DAMPER RUBBER 19 92075-266 1
DAMPER RUBBER,RR FEND 20 92075-135 2
REAR STAY 21 35032-040 1
BOLT-UPSET,10X22 22 112B1022 2
WASHER SPRING 10MM 23 461F1000 2
WASHER PLAIN 10MM 24 411B1000 2
WASHER-PL-10.5X26X2.3 25 92022-044 2
CASE 26 32099-018 1
PLUG,CASE RUBBER 27 92074-024 1
BOLT-UPSET 28 112G0625 4
WASHER SPRING 6MM 29 461F0600 4
WASHER,PLAIN,7MM 30 92022-228 4
COLLAR,REAR FENDER 31 92027-162 4
RUBBER,FENDER COVER 32 92075-174 4
BRACKET,HELMET HOLDER 33 32122-010 1
DAMPER RUBBER 34 92075-175 4
PLUG,BACKREST HOLE 35 92074-022 2
REAR FENDER COVER GRN (Canada) 36-1 53043-013-8J 1 KZ1000-B3
REAR FENDER COVER EBY 36-2 53043-5502-8G 1 KZ1000-B3
COVER,REAR FENDER,BLU 36-3 53043-013-8K 1 KZ1000-B4
COVER,REAR FENDER,EBY 36-4 53043-5504-8G 1 KZ1000-B4
CLAMP,WIRING HARNESS 37 92037-1069 1
