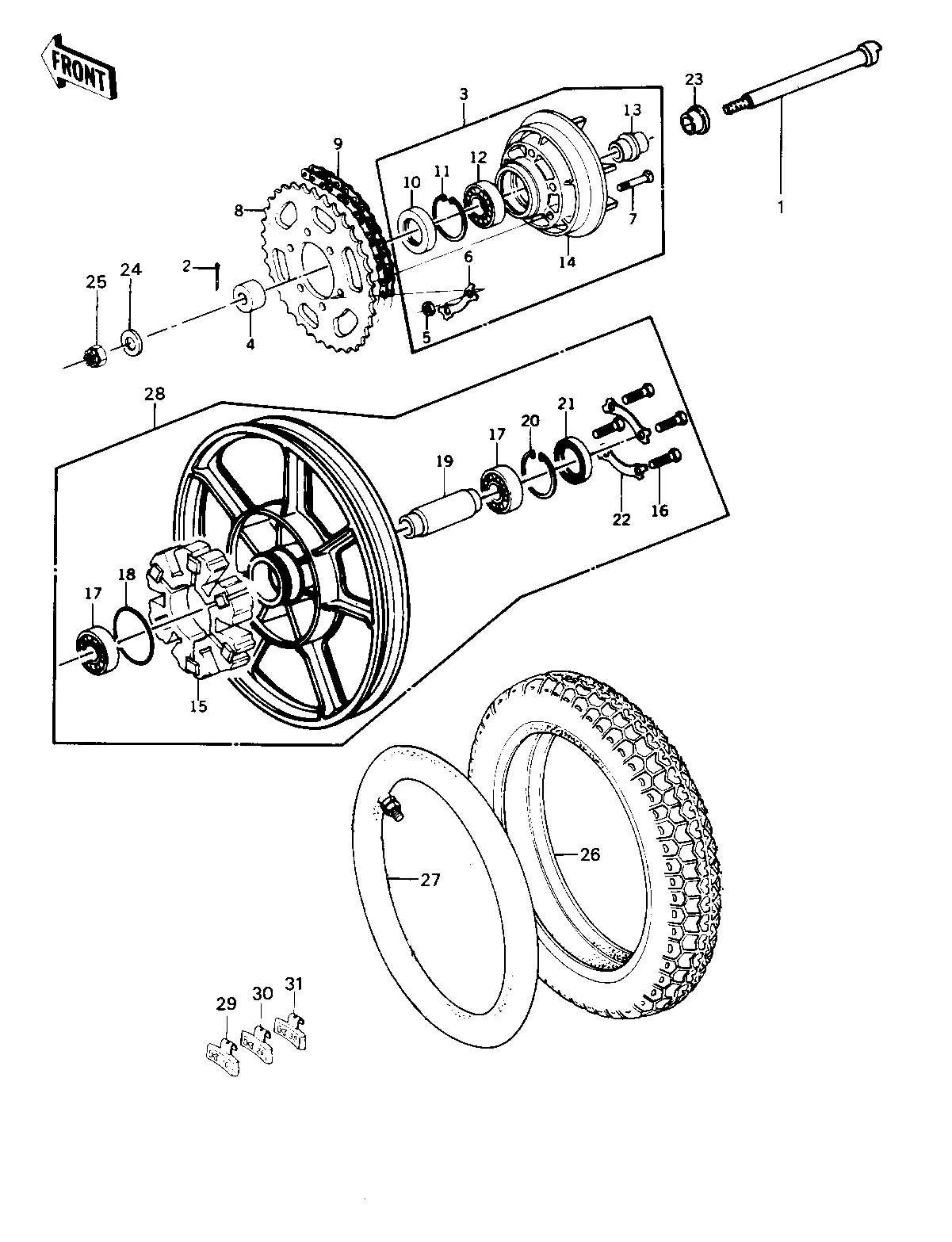

1979 KZ1000 LTD - REAR WHEEL/HUB/TIRE/CHAIN ('79-'80 B3/B4
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,REAR | 1 | 42031-034 | 1 | ||
| PIN-COTTER,4.0X35 | 2 | 550D4035 | 1 | ||
| COUPLING ASSY,RR HUB | 3 | 42008-040 | 1 | ||
| COLLAR,REAR AXLE | 4 | 42032-071 | 1 | ||
| NUT 10MM | 5 | 42045-005 | 6 | ||
| WASHER LOCK | 6 | 92088-007 | 3 | ||
| BOLT-REAR SPROCKET | 7 | 92003-087 | 6 | ||
| REAR SPROCKET,33T | 8 | 42041-1010 | 1 | ||
| DR CHAIN 630X92 | 9 | 92057-107 | 1 | ||
| OIL SEAL | 10 | 92050-027 | 1 | ||
| CIRCLIP,62M/M | 11 | 92033-1044 | 1 | ||
| BALL BEARING,#6206 | 12 | 601B6206 | 1 | ||
| SLEEVE,RR HUB COUPLNG | 13 | 42036-033 | 1 | ||
| SHOCK DAMPER,REAR HUB | 15 | 42014-033 | 1 | ||
| BOLT,HEX HEAD,10X30 | 16 | 92001-1173 | 4 | ||
| BEARING,BALL,#6304ZZ | 17 | 601B6304ZZ | 2 | ||
| "0" RING,65MM | 18 | 671B2565 | 1 | ||
| COLLAR,RR HUB BEARING | 19 | 42010-040 | 1 | ||
| RING,SNAP,56.2M/M | 20 | 92033-1043 | 1 | ||
| OIL SEAL WTC35527 | 21 | 92052-006 | 1 | ||
| WASHER,LOCK | 22 | 92088-023 | 2 | ||
| COLLAR, REAR AXLE | 23 | 92027-1177 | 1 | ||
| WASHER,PLAIN,20MM | 24 | 92022-248 | 1 | ||
| NUT CASTLE,18MM | 25 | 42045-018 | 1 | ||
| TIRE 510-16 MT90 R | 26 | 41021-072 | 1 | ||
| TUBE 510-16 | 27 | K41022-1651 | 1 | ||
| SOLID WHEEL ASSY,REAR | 28 | 41073-1043 | 1 | ||
| BALANCER-WHEEL,10G | 29 | 41075-1011 | AR | ||
| BALANCER-WHEEL,20G | 30 | 41075-1012 | AR | ||
| BALANCER-WHEEL,30G | 31 | 41075-1013 | AR |
| AXLE,REAR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING ASSY,RR HUB | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR AXLE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-REAR SPROCKET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| REAR SPROCKET,33T | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DR CHAIN 630X92 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,62M/M | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL BEARING,#6206 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,RR HUB COUPLNG | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCK DAMPER,REAR HUB | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,10X30 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL,#6304ZZ | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,65MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RR HUB BEARING | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,SNAP,56.2M/M | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL WTC35527 | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR, REAR AXLE | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,20MM | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE,18MM | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 510-16 MT90 R | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE 510-16 | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOLID WHEEL ASSY,REAR | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALANCER-WHEEL,10G | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BALANCER-WHEEL,20G | |
| REF # | 30 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BALANCER-WHEEL,30G | |
| REF # | 31 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
