Parts Diagrams |

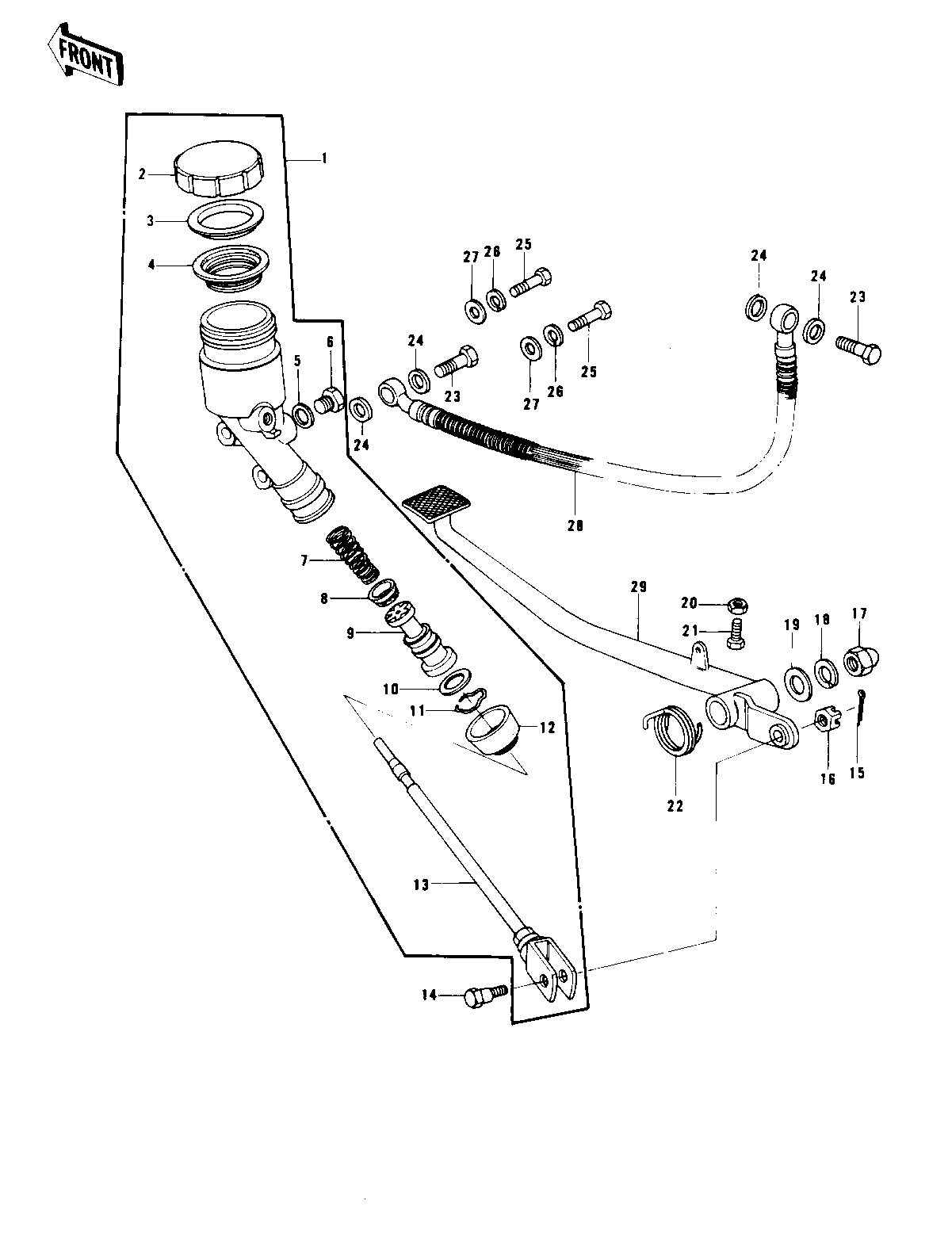

1979 KZ1000 LTD - REAR MASTER CYLINDER/BRAKE PEDAL (KZ1000
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER ASSY,PR MAST | 1 | 43015-1029 | 1 | ||
| CAP,OIL CUP | 2 | 43026-004 | 1 | ||
| PLATE-MASTER CYLINDER | 3 | 43027-001 | 1 | ||
| DIAPHRAGM | 4 | 43028-003 | 1 | ||
| 'O'RING | 5 | 43079-002 | 1 | ||
| BOLT | 6 | 43070-003 | 1 | ||
| SPRING ASSY, RETURN | 7 | 43018-002 | 1 | ||
| CUP, PRIMARY | 8 | 43019-002 | 1 | ||
| PISTON ASSY | 9 | 43072-004 | 1 | ||
| STOPPER,PISTON | 10 | 43022-002 | 1 | ||
| RING,DUST SEAL | 11 | 43058-004 | 1 | ||
| DUST COVER | 12 | 43024-003 | 1 | ||
| ROD,BRAKE | 13 | 43010-021 | 1 | ||
| BOLT | 14 | 92003-198 | 1 | ||
| PIN COTTER 2.0X20 | 15 | 550D2020 | 1 | ||
| NUT CASTLE | 16 | 321B0800 | 1 | ||
| NUT,CAP AND LOCK,8MM | 17 | 92019-013 | 1 | ||
| WASHER SPRING 8MM | 18 | 461F0800 | 1 | ||
| WASHER,8.5X20X1.6 | 19 | 92022-1561 | 1 | ||
| NUT 6MM | 20 | 311B0600 | 1 | ||
| BOLT-UPSET,6X20 | 21 | 112G0620 | 1 | ||
| SPRING,BRAKE PEDAL | 22 | 43005-041 | 1 | ||
| BOLT,OIL,L=23 | 23 | 92002-1888 | 2 | ||
| WASHER-OIL BOLT | 24 | 43067-001 | 4 | ||
| BOLT,10X45 | 25 | 92001-1182 | 2 | ||
| WASHER SPRING 8MM | 26 | 461F0800 | 2 | ||
| WASHER PLAIN 8MM | 27 | 410B0800 | 2 | ||
| HOSE,REAR MASTER CYL | 28 | 43059-031 | 1 | ||
| PEDAL,BRAKE | 29 | 43001-1030 | 1 |
