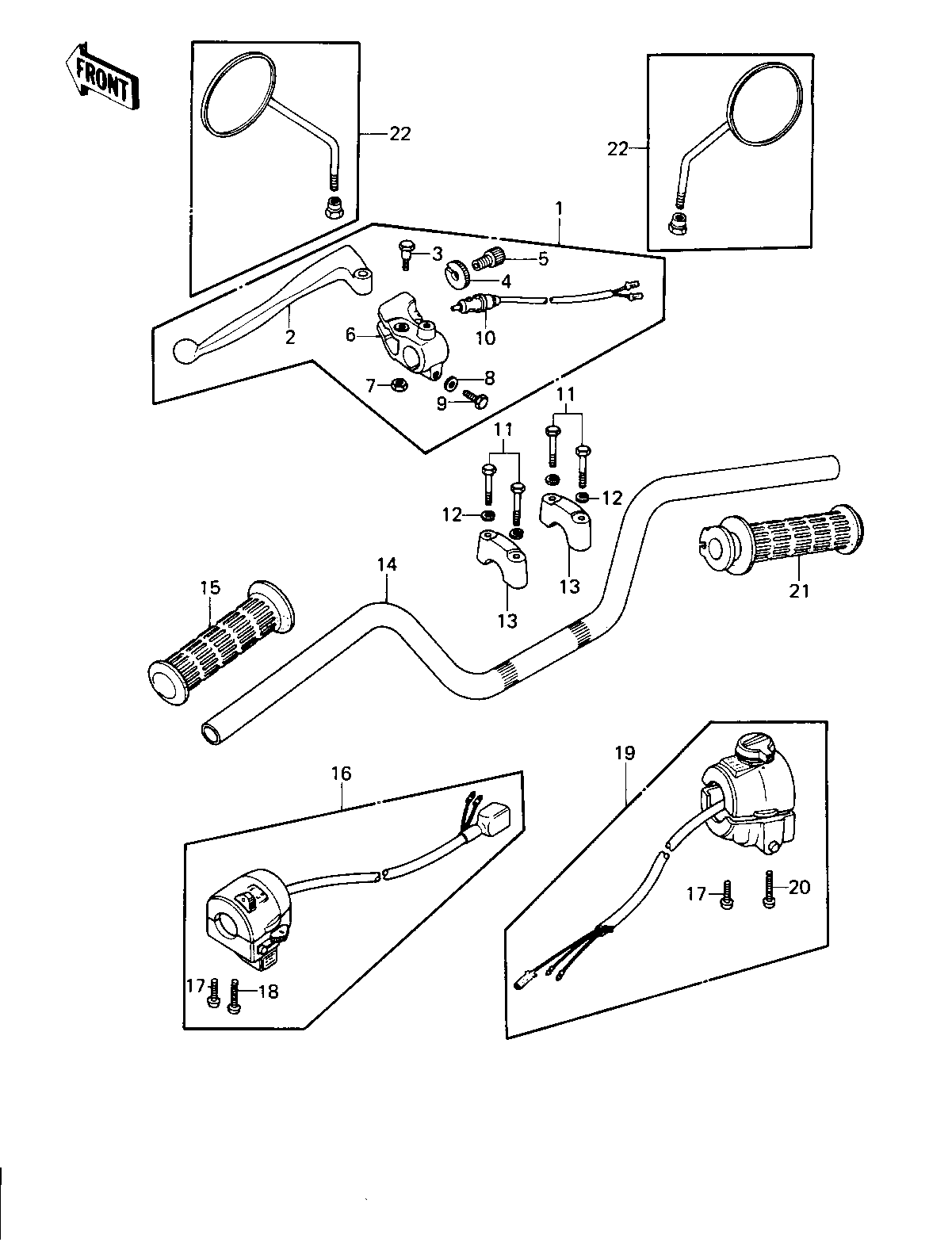

1979 KZ1000 LTD - HANDLEBAR ('79-'80 B3/B4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 46076-064 | 1 | ||
| .LEVER,CLUTCH | 2 | 46092-023 | 1 | ||
| .BOLT,HEX HEAD | 3 | 92007-047 | 1 | ||
| .NUT,CABLE ADUST NUT | 4 | 46056-007 | 1 | ||
| .SCREW CABLE ADJUST | 5 | 46055-003 | 1 | ||
| SCREW,CABLE ADJUSTER | 5 | 92009-1022 | 1 | ||
| .HOLDER,CLUTCH LEVER | 6 | 46094-019 | 1 | ||
| .NUT,LOCK 6MM | 7 | 92017-014 | 1 | ||
| .WASHER PLAIN 6MM | 8 | 410B0600 | 1 | ||
| .BOLT HEX HEAD 6X25 | 9 | 110N0625 | 1 | ||
| SWITCH,CLUTCH | 10 | 27043-002 | 1 | ||
| BOLT 8X38 | 11 | 92001-1405 | 4 | ||
| BOLT 8X38 | 11 | 92001-1405 | 4 | ||
| WASHER SPRING 8MM | 12 | 461F0800 | 4 | ||
| HOLDER-HANDLEBAR | 13 | 46012-008 | 2 | ||
| HANDLEBAR | 14 | 46003-037 | 1 | ||
| RUBBER,L.H GRIP | 15 | 46075-028 | 1 | ||
| HOUSING ASSY,L.H | 16 | 46091-1049 | 1 | KZ1000-B3 | |
| HOUSING ASSY,L.H. | 16 | 46091-1095 | 1 | KZ1000-B4 | |
| HOUSING ASSY,L.H. | 16 | 46091-1095 | 1 | KZ1000-B4 | |
| SCREW PAN HEAD 5X30 | 17 | 220B0530 | 2 | ||
| SCREW-PAN-CROS | 18 | 220B0535 | 1 | ||
| HOUSING ASSY,R.H | 19 | 46091-1050 | 1 | ||
| SCREW-PAN-CROS | 20 | 220B0540 | 1 | ||
| GRIP ASSY,THROTTLE | 21 | 46019-038 | 1 | ||
| MIRROR-ASSY,LH&RH | 22 | 56001-5008 | 2 |
