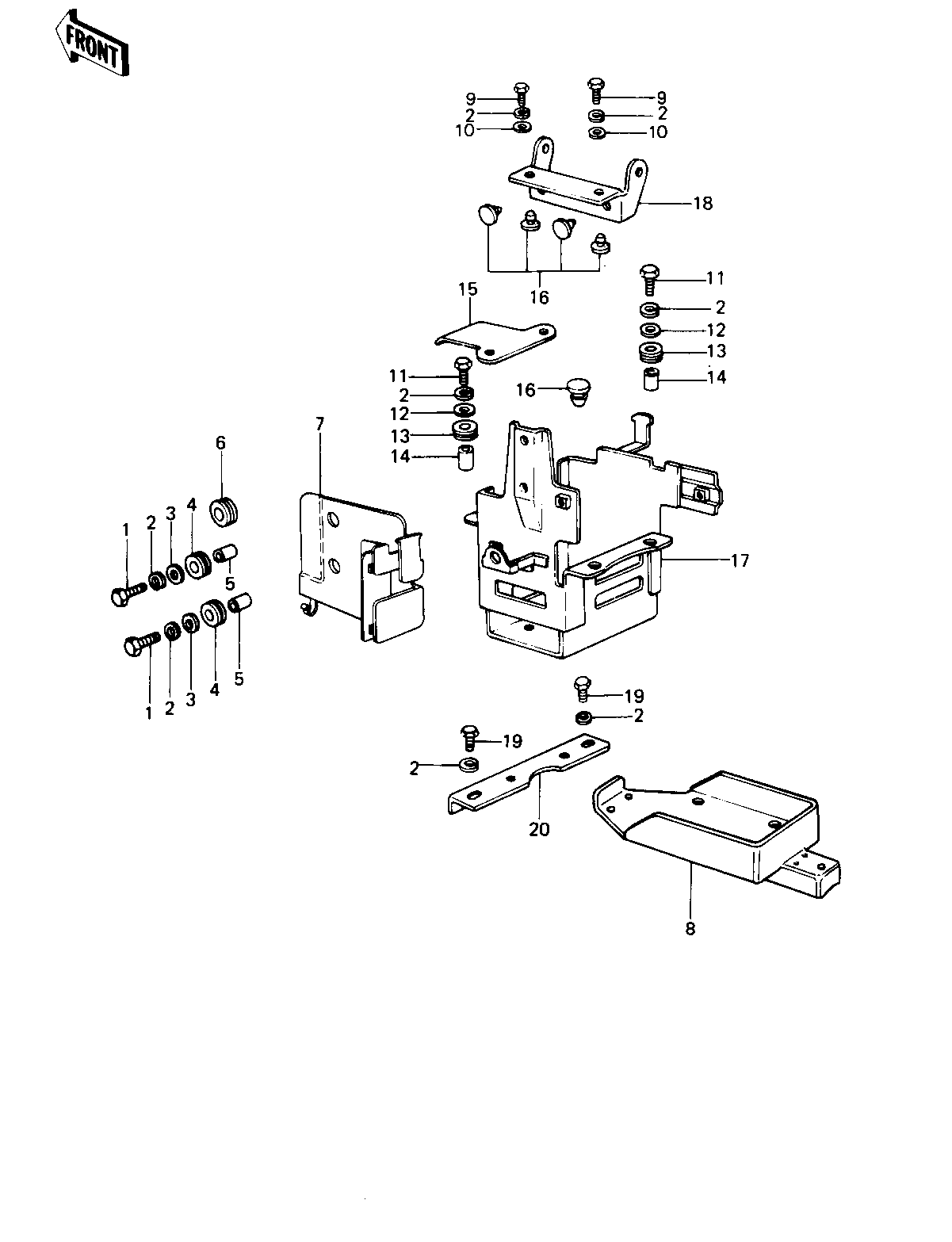

1979 KZ1000 LTD - BATTERY CASE/TOOL CASE (KZ1000-B3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 2 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 10 | ||
| WASHER 6.5X22X1.6T | 3 | 92022-237 | 2 | ||
| DAMPER RUBBER | 4 | 92075-149 | 2 | ||
| COLLAR | 5 | 92027-165 | 2 | ||
| DAMPER RUBBER | 6 | 92075-051 | 1 | ||
| BRACKET,BASE | 7 | 11034-1261 | 1 | ||
| CASE,TOOL | 8 | 32098-1001 | 1 | ||
| BOLT-UPSET,6X12 | 9 | 112G0612 | 2 | ||
| WASHER PLAIN 6MM | 10 | 411B0600 | 2 | ||
| BOLT-UPSET | 11 | 112G0630 | 4 | ||
| WASHER,6.5X16X2 | 12 | 92022-1565 | 4 | ||
| DAMPER RUBBER,BTT CAS | 13 | 92075-146 | 4 | ||
| COLLAR 6.8X10X14.5 | 14 | 92027-156 | 4 | ||
| STAY,AIR CLEANER | 15 | 32105-007 | 1 | ||
| DAMPER RUBBER | 16 | 92075-078 | 10 | ||
| CASE,BATTERY | 17 | 32097-044 | 1 | ||
| BAND,BATTERY | 18 | 32100-100 | 1 | ||
| BOLT-UPSET,6X16 | 19 | 112G0616 | 2 | ||
| PLATE | 20 | 32113-004 | 1 |
| BOLT-UPSET,6X20 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X22X1.6T | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,BASE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,TOOL | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X2 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,BTT CAS | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR 6.8X10X14.5 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STAY,AIR CLEANER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| CASE,BATTERY | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
