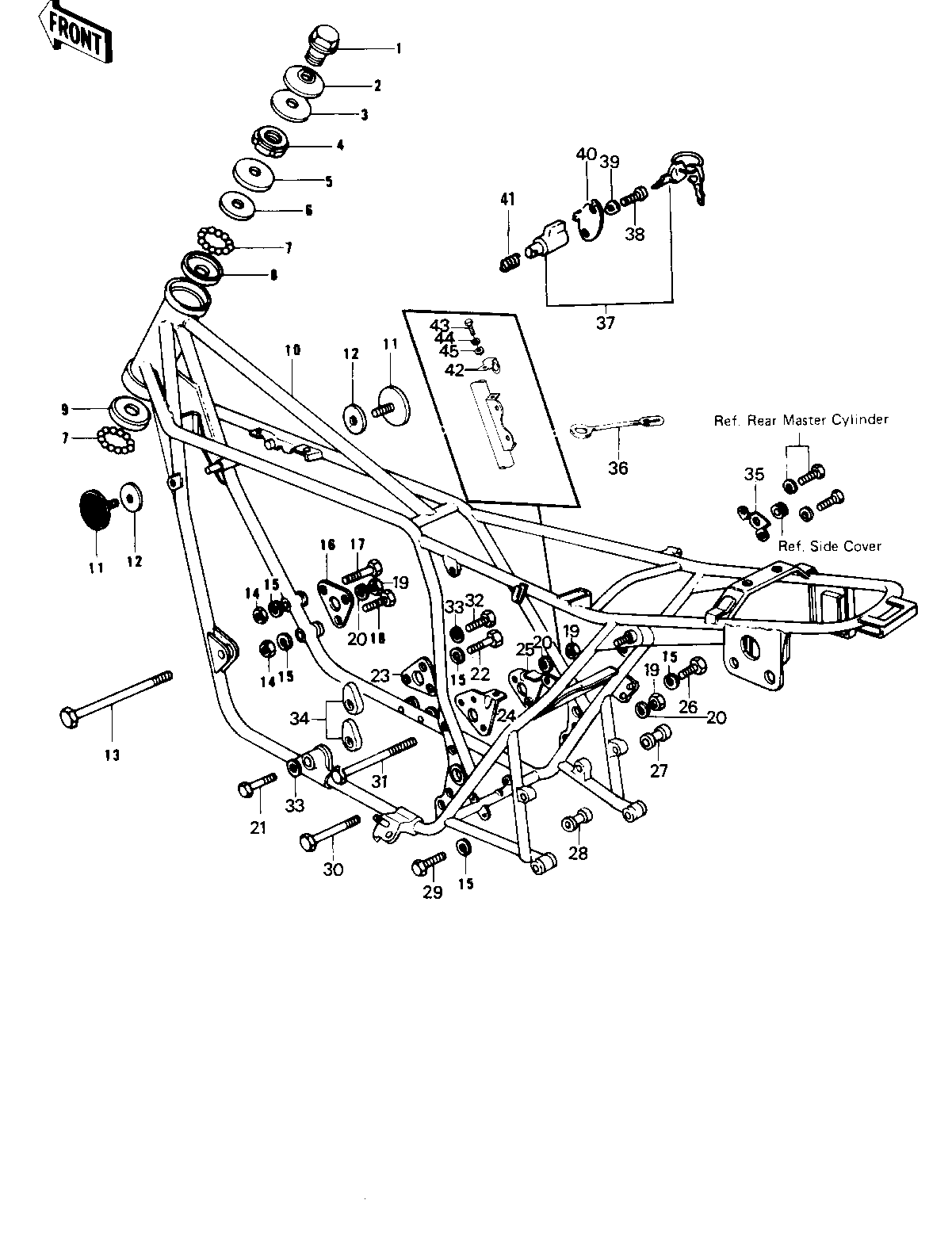

1979 KZ1000 LTD - FRAME/FRAME FITTINGS ('79-'80 B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,STEERG STEM HEAD 1 92007-031 1
WASHER,STEERG STM HD 2 92022-230 1
WASHER,WAVE 3 46100-003 1
NUT STEERING STEM LCK 4 92090-007 1
CAP, STEERING STEM 5 46098-016 1
CONE,STRNG STM BRNG 6 92047-011 1
BALL STEEL 1/4' 7 600A0800 39
RACE STRNG STEM BERNG 8 92048-006 1
RACE,STRNG STM BRNG 9 92048-008 1
FRAME 10 32002-1050 1 KZ1000-B3
FRAME 10 32002-1119 1 KZ1000-B4
REFLECTOR,REFLEX 11 28012-016 2
DAMPER RUBBER,REFLECT 12 92094-011 2
BOLT,ENGINE MOUNTING 13 92091-022 1 L=310 MM
NUT,8MM 14 311B0800 2
WASHER SPRING 8MM 15 461F0800 8
PLATE,ENG MOUNT FRONT 16 32030-025 1
BOLT,HEX HEAD,8X65 17 92001-1236 1
BOLT,FLANGED,8X60 18 92001-1581 1
NUT,LOCK,10MM 19 92019-021 3
WASHER SPRING 10MM 20 461F1000 3
BOLT,HEX HEAD,12X55 21 92001-1262 1
BOLT-SMALL-UPSET,8X18 22 115G0818 2
PLATE,ENG MOUNT LOWER 23 32030-026 1
PLATE,REAR ENGINE,L.H 24 32030-066 1
PLATE,REAR ENGINE,R.H 25 32030-067 1 KZ1000-B3
BRACKET,REAR ENGINE 25 32029-1024 1 KZ1000-B4
BOLT,HEX HEAD,8X40 26 92001-1230 3
COLLAR,ENG MOUNTING 27 92027-160 1 L=31 MM
COLLAR,ENG MOUNTING 28 92027-159 1 L=52 MM
BOLT,FLANGED,8X35 29 92001-1577 1
BOLT,ENGINE MOUNTING 30 92003-099 1 L=165 MM
BOLT,ENGINE MOUNTING 31 92091-023 1 L=250 MM
BOLT,HEX HEAD,12X70 32 92001-1265 1
WASHER SPRING 12MM 33 461F1200 2
NUT,12MM 34 92016-045 2
BRACKET,SIDE COV,R.H 35 32049-101 1
CLAMP,OVER FLOW PIPE 36 92037-134 1
LOCK,ASSY,STEERING 37 27016-5016 1
SCREW-TAPPING 38 92008-007 1
WASHER 39 92097-003 1
CAP,STEERING LOCK 40 11012-1134 1
SPRING-STEERING LOCK 41 27032-001 1
BRACKET,SIDE STAND 42 11034-1684 1 KZ1000-B4
BOLT-UPSET,6X12 43 112G0612 1 KZ1000-B4
WASHER SPRING 6MM 44 461F0600 1 KZ1000-B4
WASHER PLAIN 6MM 45 410B0600 1 KZ1000-B4
