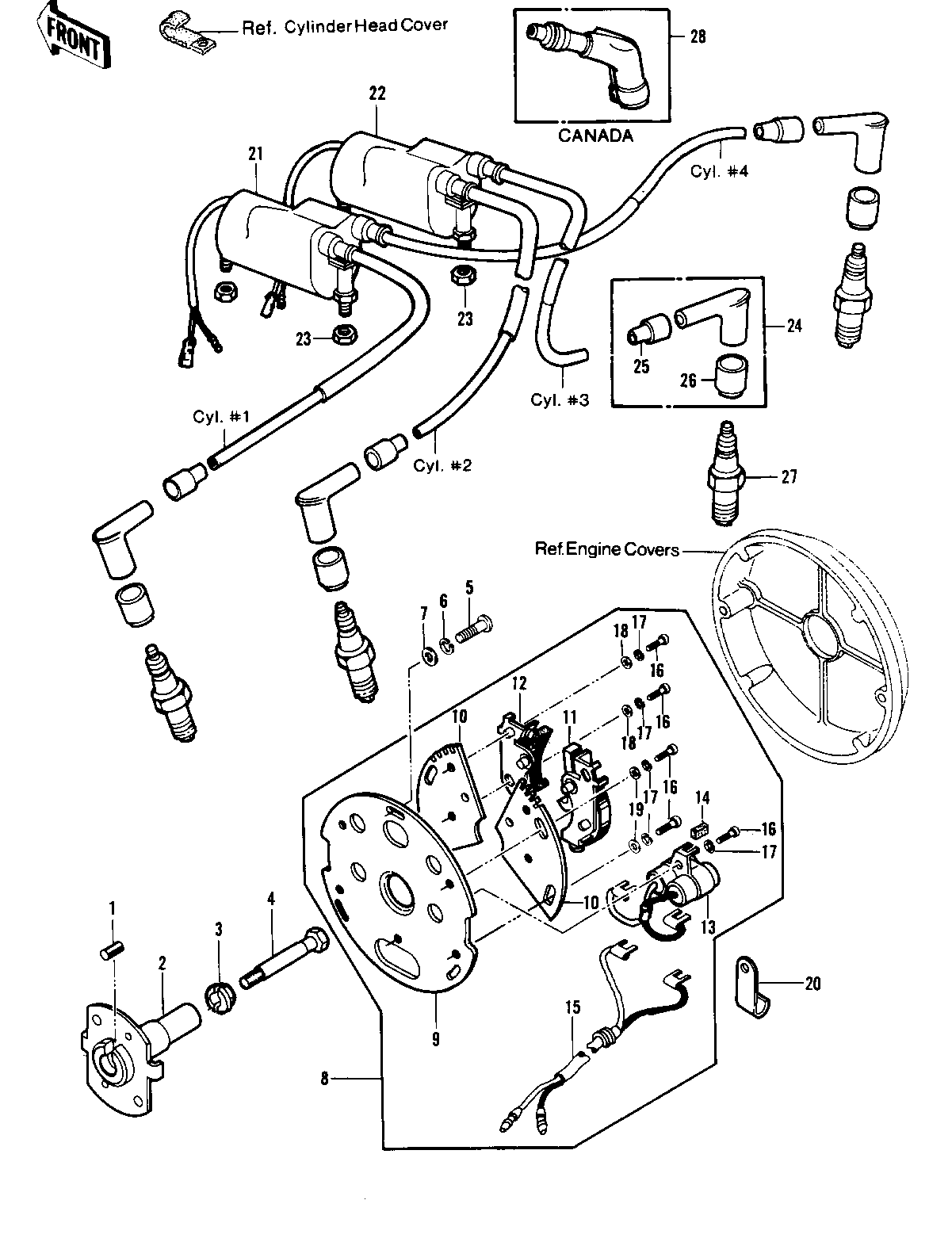

1979 KZ1000 LTD - IGNITION (KZ1000-B3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-SPRING,4X8 1 555A0408 1
ADVANCER ASSY,SPARK 2 21148-1003 1
WASHER,SPARK ADVANCER 3 92022-244 1
BOLT,SPARK ADVANCER 4 92001-113 1
SCREW PAN HEAD 5X12 5 220B0512 3
WASHER SPRING 5MM 6 461F0500 3
WASHER PLAIN 5MM 7 411B0500 3
BREAKER,CONTACT 8 21135-011 1
.PLATE,CONTACT BREAKER 9 21021-004 1
.PLATE,CONTACT BREAKER 10 21156-010 2
.BREAKER,CONTACT 11 21008-027 1 L MARK
.BREAKER,CONTACT 12 21008-028 1 R MARK
.CONDENSER 13 21013-035 1
.FELT OIL 14 21019-005 1
.WIRING HARNESS,BRAKE 15 21029-037 1
.SCREW PAN HEAD 4X8 16 220B0408 9
.WASHER SPRING 4MM 17 461F0400 9
.WASHER PLAIN 4MM 18 410B0400 4
.WASHER PLAIN 4MM 19 410B0400 4
WASHER PLAIN 4MM 19 410B0400 4
CLAMP,WIRING HARNESS 20 21126-008 4
COIL,IGNITION,#184 21 21121-1015 1 CYL NOS 1 & 4
COIL,IGNITION,#223 22 21121-1016 1 CYL NOS 2 & 3
NUT,LOCK 6MM 23 92017-014 4
CAP SPARK PLUG 24 21160-1014 4 USA
CAP SPARK PLUG 24 21160-1014 4 USA
.GROMMET,SPARK PLG CAP 25 21132-005 4 USA
.GROMMET-PLUG CAP,A 26 21131-004 4 USA
SPARK PLUG B8ES 27 B8ES 4
SPARK PLUG B8ES 27 B8ES AL
SPARK PLUG W24ES-U 27 W24ESU AL
CAP,SPARK PLUG 28 21160-005 4 CANADA
