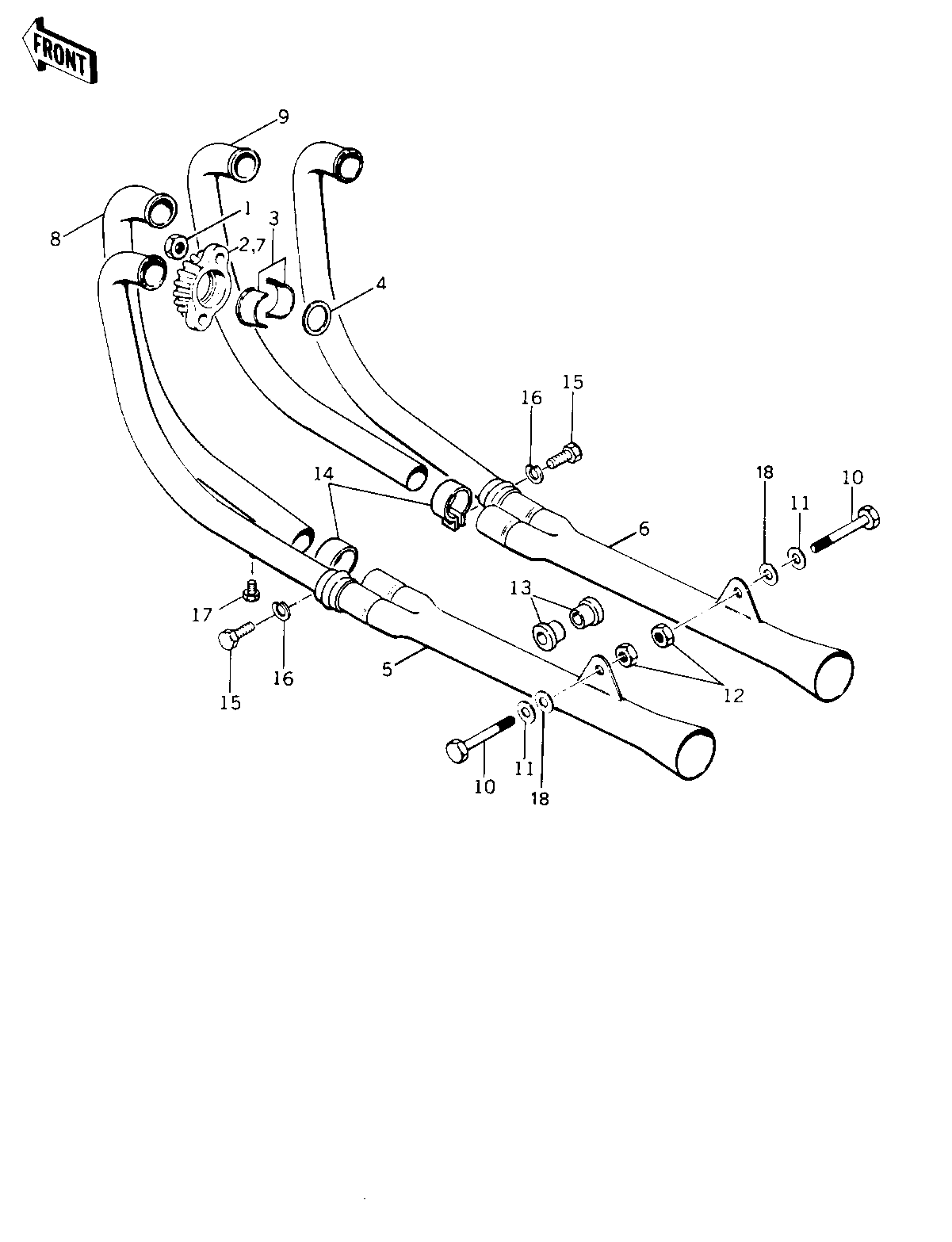

1979 KZ1000 LTD - MUFFLERS ('79-'80 B3/B4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT,LOCK,8MM | 1 | 92017-013 | 8 | ||
| HOLDER,EXHAUST PIPE, | 2 | 18069-1005 | 2 | ||
| INSERT,EXHAUST PIPE | 3 | 92027-170 | 8 | ||
| GASKET,EXHAUST PIPE H | 4 | 11009-1906 | 4 | ||
| MUFFLER,LEFT | 5 | 18001-1064 | 1 | ||
| MUFFLER,RIGHT | 6 | 18001-1065 | 1 | ||
| HOLDER,EXHAUST PIPE, | 7 | 18069-1004 | 2 | ||
| EXHAUST PIPE,L.H. INN | 8 | 18049-1005 | 1 | ||
| EXHAUST PIPE,R.H. INN | 9 | 18049-1006 | 1 | ||
| BOLT-HEX HEAD,10X60 | 10 | 113N1060 | 2 | ||
| WASHER,PLAIN,10MM (Canada) | 11 | 410D1000 | 2 | ||
| NUT,LOCK,10MM | 12 | 92019-021 | 2 | ||
| BUSHING,MUFFLER FITT | 13 | 92092-010 | 2 | ||
| CLAMP,EXH PIPE CONNCT | 14 | 92037-180 | 2 | ||
| BOLT-SMALL-UPSET 8X25 | 15 | 115G0825 | 2 | ||
| WASHER SPRING 8MM | 16 | 461F0800 | 2 | ||
| BOLT (6X10) | 17 | 110R0610 | 4 | ||
| WASHER,PLAIN | 18 | 92022-328 | 2 |
