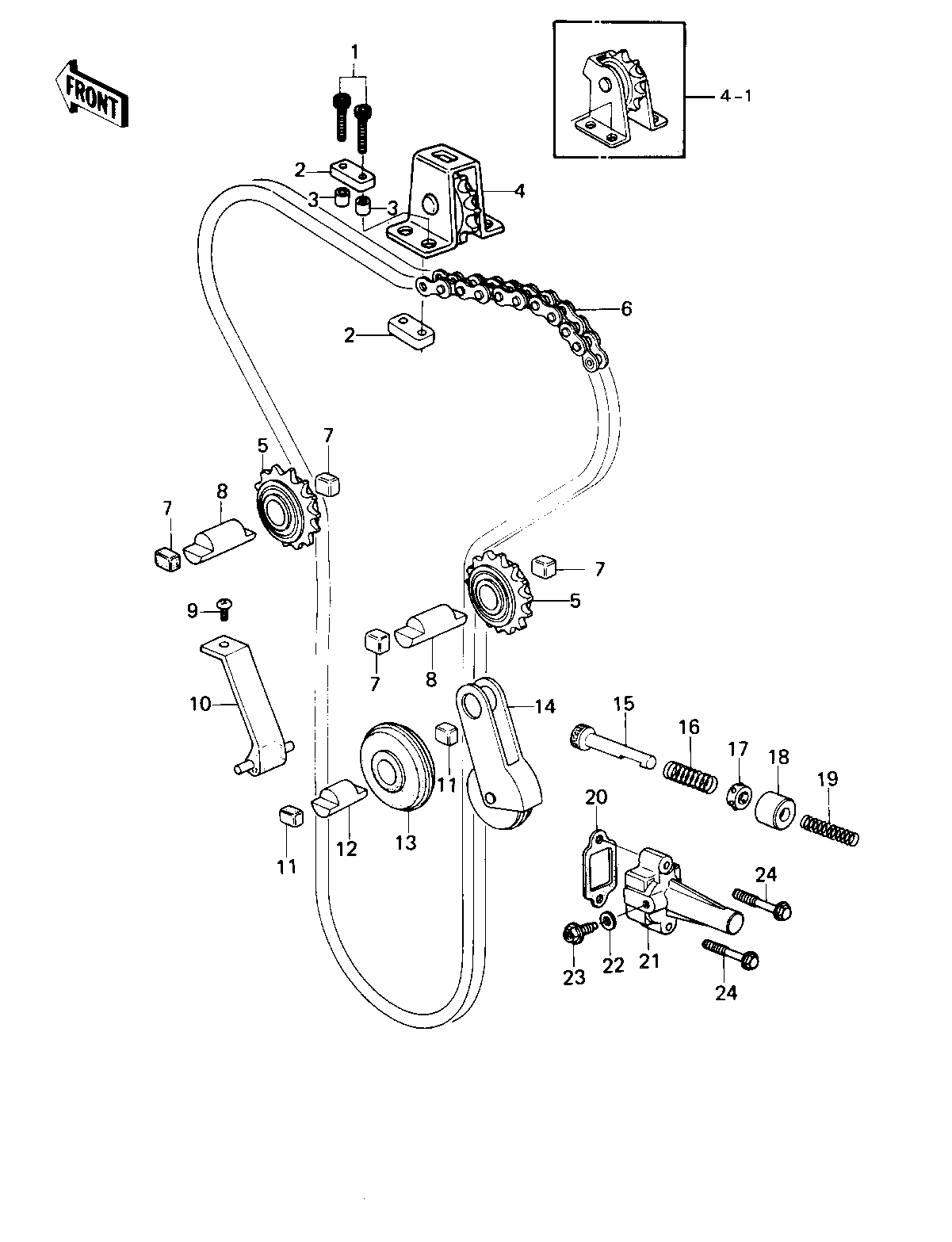

1979 KZ1000 LTD - CAM CHAIN/TENSIONER ('79-'80 B3/B4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,ALLEN,6X32 | 1 | 120Q0632 | 4 | ||
| DAMPER RUBBER | 2 | 92075-289 | 4 | ||
| COLLAR,8X15 | 3 | 92027-1079 | 4 | ||
| IDLER ASSY,CAM CHAIN | 4 | 12053-1016 | 1 | KZ100-B3 | |
| IDLER ASSY,CAM SHAFT | 4-1 | 12053-1035 | 1 | KZ1000-B4 | |
| IDLER ASSY | 5 | 12057-002 | 2 | ||
| CHAIN,CAM SHAFT | 6 | 21070-003 | 1 | KZ1000-B3 | |
| CHAIN,CAM,124LINKS | 6 | 92057-1026 | 1 | KZ1000-B4 | |
| RUBBER,GUIDE ROLLAR | 7 | 92075-232 | 4 | ||
| SHAFT,GUIDE ROLLER | 8 | 12052-005 | 2 | ||
| SCREW PAN HEAD 6X10 | 9 | 220B0610 | 1 | ||
| GUIDE,CAM CHAIN | 10 | 12053-019 | 1 | ||
| DAMPER RUBBER | 11 | 92075-123 | 1 | ||
| SHAFT,CAM CHAIN GUIDE | 12 | 12052-003 | 1 | ||
| ROLLER,CAM CHAIN GUID | 13 | 12055-002 | 1 | ||
| TENSIONER ASSY,CHAIN | 14 | 12048-001 | 1 | ||
| ROD ASSY,PUSH | 15 | 13116-1008 | 1 | ||
| SPRING,TENSIONER | 16 | 92081-1068 | 1 | ||
| RETAINER | 17 | 14020-1002 | 1 | ||
| COLLAR, TENSIONER | 18 | 92027-1102 | 1 | ||
| SPRING | 19 | 92081-146 | 1 | ||
| GASKET,TENSIONER | 20 | 11009-1980 | 1 | ||
| TENSIONER KIT | 21 | 99996-1021 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 22 | 92022-007 | 1 | ||
| BELT,TENSIONER ADJUST | 23 | 92001-1155 | 1 | ||
| BOLT,FLANGED,6X30 | 24 | 130G0630 | 2 |
