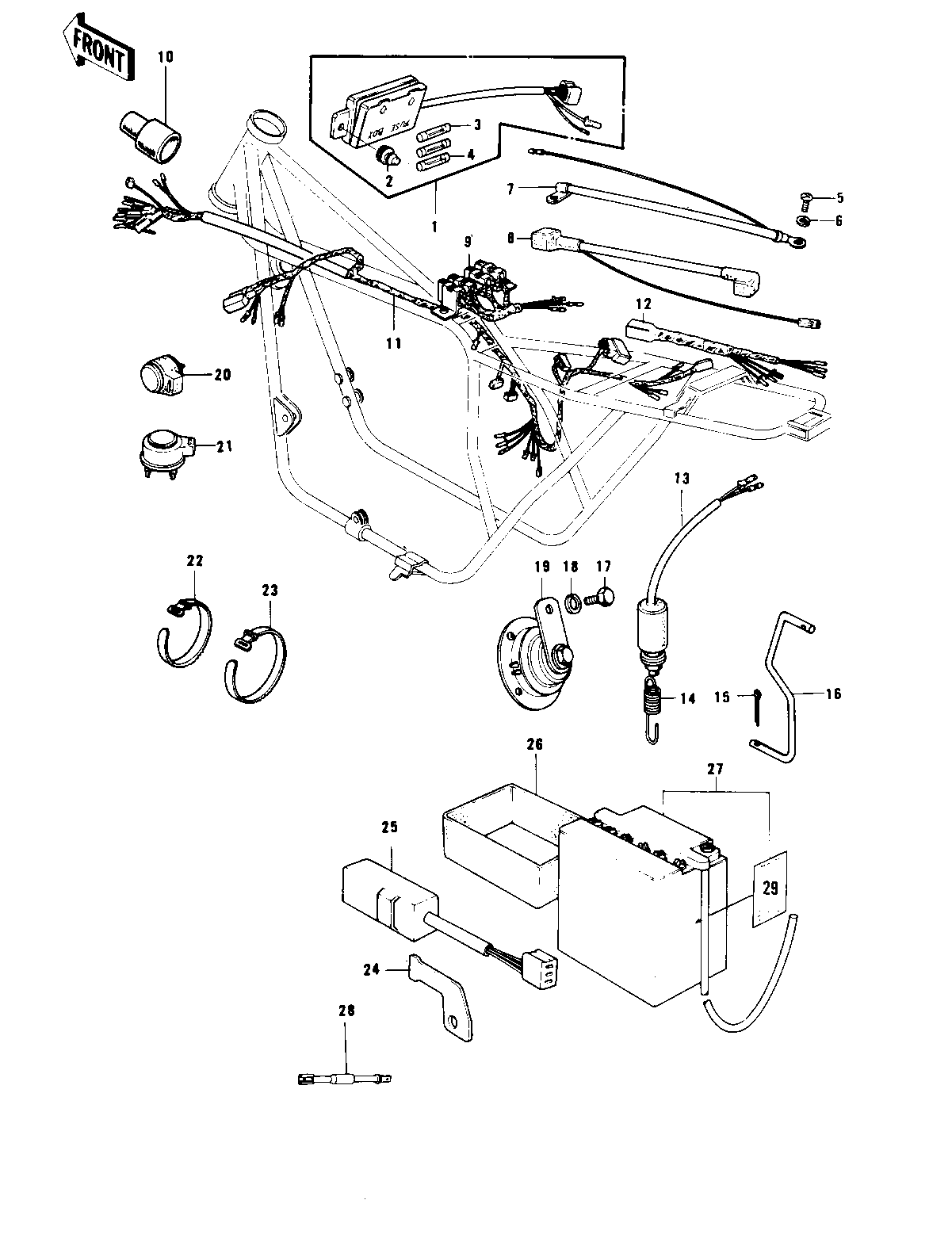

1978 KZ1000 LTD - CHASSIS ELECTRICAL EQUIPMENT ('77-'78 B1
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FUSE ASSY | 1 | 26004-035 | 1 | ||
| DAMPER RUBBER,FUSE | 2 | 92075-279 | 1 | ||
| FUSE-20A | 3 | 26006-005 | 2 | ||
| FUSE 10A | 4 | 26006-003 | 3 | ||
| UNAVAILABLE IN PRICE BOOK | 5 | 9200-137 | 1 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 1 | ||
| WIRE,BATTERY GROUND | 7 | 26010-054 | 1 | ||
| WIRE,STARTER LEAD | 8 | 26010-053 | 1 | ||
| WIRING HARNESS,CENTER | 9 | 26002-057 | 1 | ||
| COVER WIRING HARNESS | 10 | 26009-003 | 1 | ||
| WIRING HARNESS,MAIN | 11 | 26001-1003 | 1 | ||
| WIRING HARNESS,REAR | 12 | 26002-031 | 1 | ||
| SWITCH-BRAKE LAMP | 13 | 27010-017 | 1 | ||
| SPRING BRAKE LAMP SW | 14 | 27011-009 | 1 | ||
| PIN COTTER 1.6X10 | 15 | 550D1610 | 1 | ||
| HOOK,BRK LAMP SW SPR | 16 | 27012-010 | 1 | ||
| BOLT-SMALL-UPSET,8X16 | 17 | 115G0816 | 1 | ||
| WASHER SPRING 8MM | 18 | 461F0800 | 1 | ||
| HORN | 19 | 27003-1006 | 1 | ||
| RELAY-TURN SIGNAL | 20 | 27002-011 | 1 | ||
| RELAY,TURN SIGNAL | 21 | 27002-016 | 1 | ||
| BAND,SHORT | 22 | 92072-030 | 1 | L = 123 M/M | |
| BAND,WIRING HARNESS | 23 | 92072-056 | 8 | L = 186 M/M | |
| BRACKET,OUTAGE SWITCH | 24 | 32060-014 | 1 | ||
| SWITCH,OUTAGE,INDICTR | 25 | 28019-001 | 1 | ||
| CASE,BATTERY | 26 | 32099-015 | 1 | ||
| BATTERY YB14L-A2 | 27 | 26012-043 | 1 | YB 14 | |
| *** N.L.A.*** (Canada) | 27 | 26012-049 | 1 | FOR CANADIAN | |
| REGULATOR | 28 | 21066-026 | 1 | ||
| LABEL-WARNING,BATTERY | 29 | 56040-1036 | 1 |
