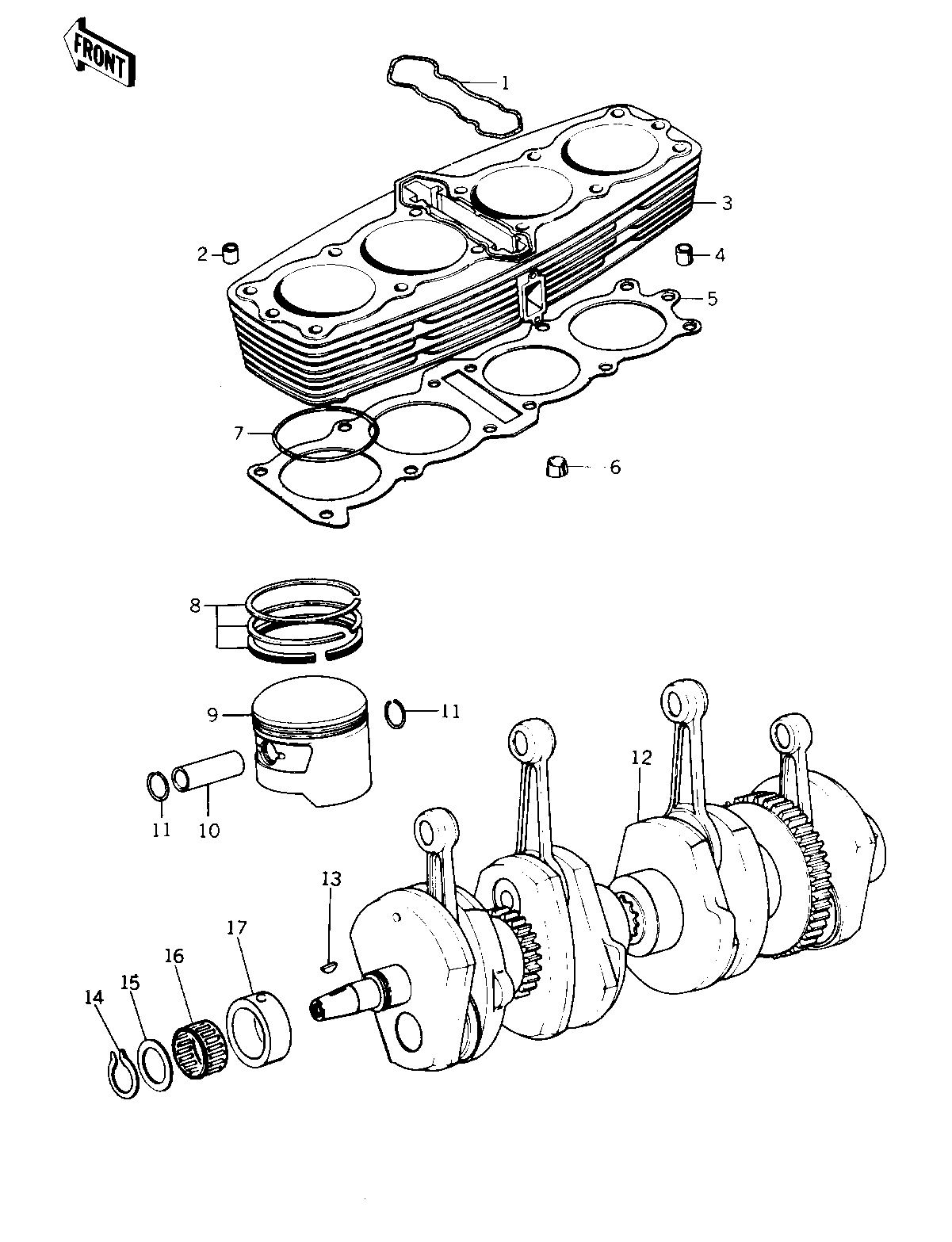

1978 KZ1000 LTD - CYLINDER/PISTONS/CRANKSHAFT ('77-'78 B1/
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYLINDER RUBER | 1 | 92055-062 | 1 | ||
| PIN,DOWEL,10X8.2X14 | 2 | 92043-1037 | 2 | ||
| CYLINDER | 3 | 11005-163-2H | 1 | ||
| PIN,11X14X12.3 | 4 | 92043-1266 | 2 | ||
| GASKET,CYLINDER BASE | 5 | 11009-030 | 1 | ||
| RUBBER PLUG,CYLINDER | 6 | 92074-030 | 4 | ||
| "O" RING,73MM | 7 | 92055-054 | 4 | ||
| RING SET,STD | 8 | 13008-5012 | 4 | ||
| RING SET,STD | 8 | 13008-5012 | AL | ||
| RING SET,0.020"O/S | 8 | 13025-5007 | (4 | ||
| RING SET,0.020"O/S | 8 | 13025-5007 | AL | ||
| RING SET,0.040"O/S | 8 | 13024-5008 | (4 | ||
| RING SET,0.040"O/S | 8 | 13024-5008 | AL | ||
| PISTON,S.T.D | 9 | 13001-1005 | 4 | ||
| PISTON,S.T.D | 9 | 13001-1005 | 4 | ||
| PISTON,0.020'O/S | 9 | 13029-078 | (4 | ||
| PISTON,0.020 O/S | 9 | 13029-1003 | (4 | ||
| PISTON,0.040"0/S | 9 | 13027-1003 | (4 | ||
| PISTON,0.040"0/S | 9 | 13027-1003 | (4 | ||
| PIN-PISTON | 10 | 13002-022 | 4 | ||
| CIRCLIP,PISTON PIN | 11 | 92036-021 | 8 | ||
| CRANKSHAFT ASSY | 12 | 13031-056 | 1 | KZ1000-B1 | |
| CRANKSHAFT ASSY | 12 | 13031-1006 | 1 | KZ1000-B2 | |
| WOODRUFF KEY | 13 | 92038-001 | 1 | KZ1000-B1 | |
| CIRCLIP,30MM | 14 | 480J3000 | 2 | KZ1000-B1 | |
| WASHER,THRUST | 15 | 92026-079 | 2 | KZ1000-B1 | |
| BRG,N,PK304016.8X3 | 16 | 92046-063 | 2 | KZ1000-B1 | |
| BUSHING,CRANKSHAFT | 17 | 92028-121 | 2 | KZ1000-B1 |
