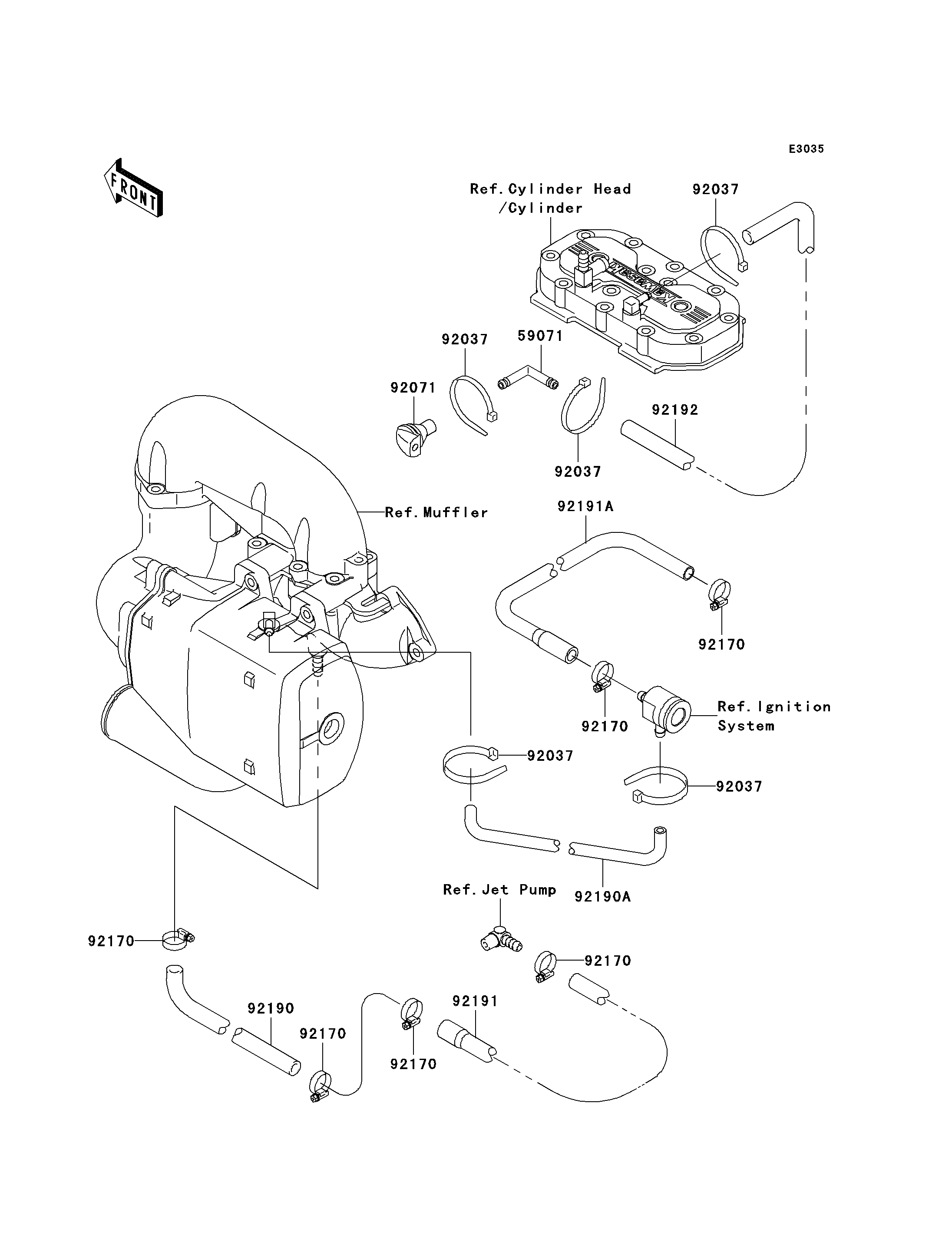

Parts Diagrams |
59071
92037
92037
92037
92037
92037
92071
92170
92170
92170
92170
92170
92170
92190
92190A
92191
92191A
92192
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| JOINT | 59071 | 59071-3736 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 5 | ||
| GROMMET | 92071 | 92071-3815 | 1 | ||
| CLAMP | 92170 | 92170-3718 | 6 | ||
| TUBE,9X16X450 | 92190 | 92190-3914 | 1 | ||
| TUBE | 92190A | 92190-3990 | 1 | ||
| TUBE,PUMP-HULL | 92191 | 92191-3722 | 1 | ||
| TUBE,HEAD-HULL | 92191A | 92191-3955 | 1 | ||
| TUBE,7X12X1180 | 92192 | 92192-3704 | 1 |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| TUBE,9X16X450 | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,PUMP-HULL | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,HEAD-HULL | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,7X12X1180 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
