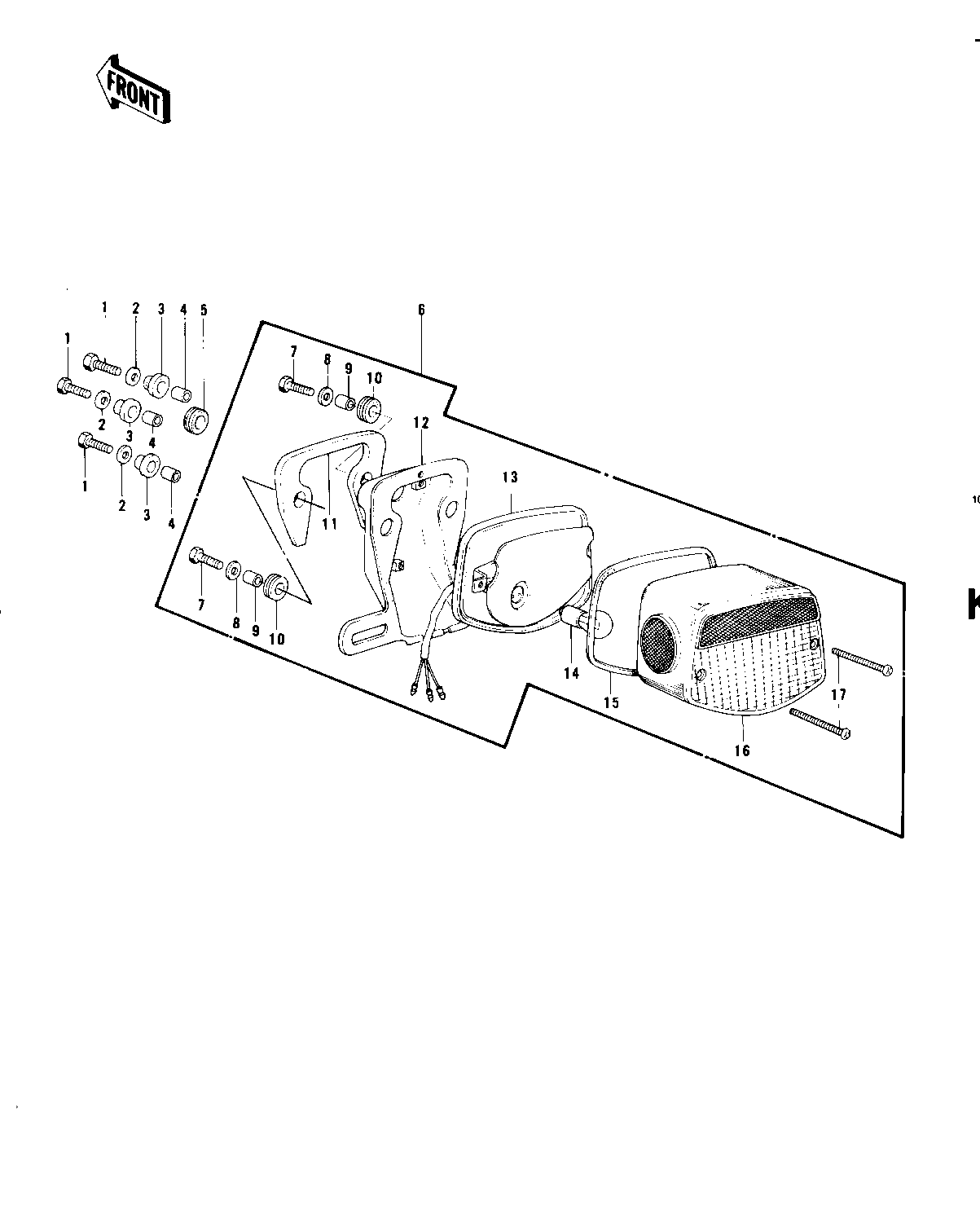

1977 KZ750-B2 - TAILLIGHT (KZ750-B1/B2/B3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 3 | ||
| WASHER 6.5X20X1.6T | 2 | 92022-125 | 3 | ||
| DAMPER RUBBER | 3 | 92075-112 | 3 | ||
| COLLAR 6.8X10X10.5 | 4 | 92027-120 | 3 | ||
| GROMMET | 5 | 92071-059 | 1 | ||
| LIGHT ASSY,TAIL | 6 | 23024-066 | 1 | ||
| BOLT 6X22 | 7 | 112B0622 | 2 | ||
| WASHER 6.5X20X1.6T | 8 | 92022-125 | 2 | ||
| COLLAR,6.8X10X8.5 | 9 | 92027-129 | 2 | ||
| DAMPER RUBBER | 10 | 23066-020 | 2 | ||
| DAMPER RUBBER | 11 | 23066-019 | 1 | ||
| BRACKET,LICENSE PLATE | 12 | 23036-045 | 1 | ||
| CASE,TAIL LIGHT | 13 | 23027-041 | 1 | ||
| BULB,12V 32/3CP | 14 | 92069-059 | 1 | ||
| GASKET,TAIL LENS | 15 | 23028-021 | 1 | ||
| LENS,TAIL LAMP | 16 | 23026-034 | 1 | ||
| SCREW-PAN-CROS | 17 | 220R0460 | 2 |
