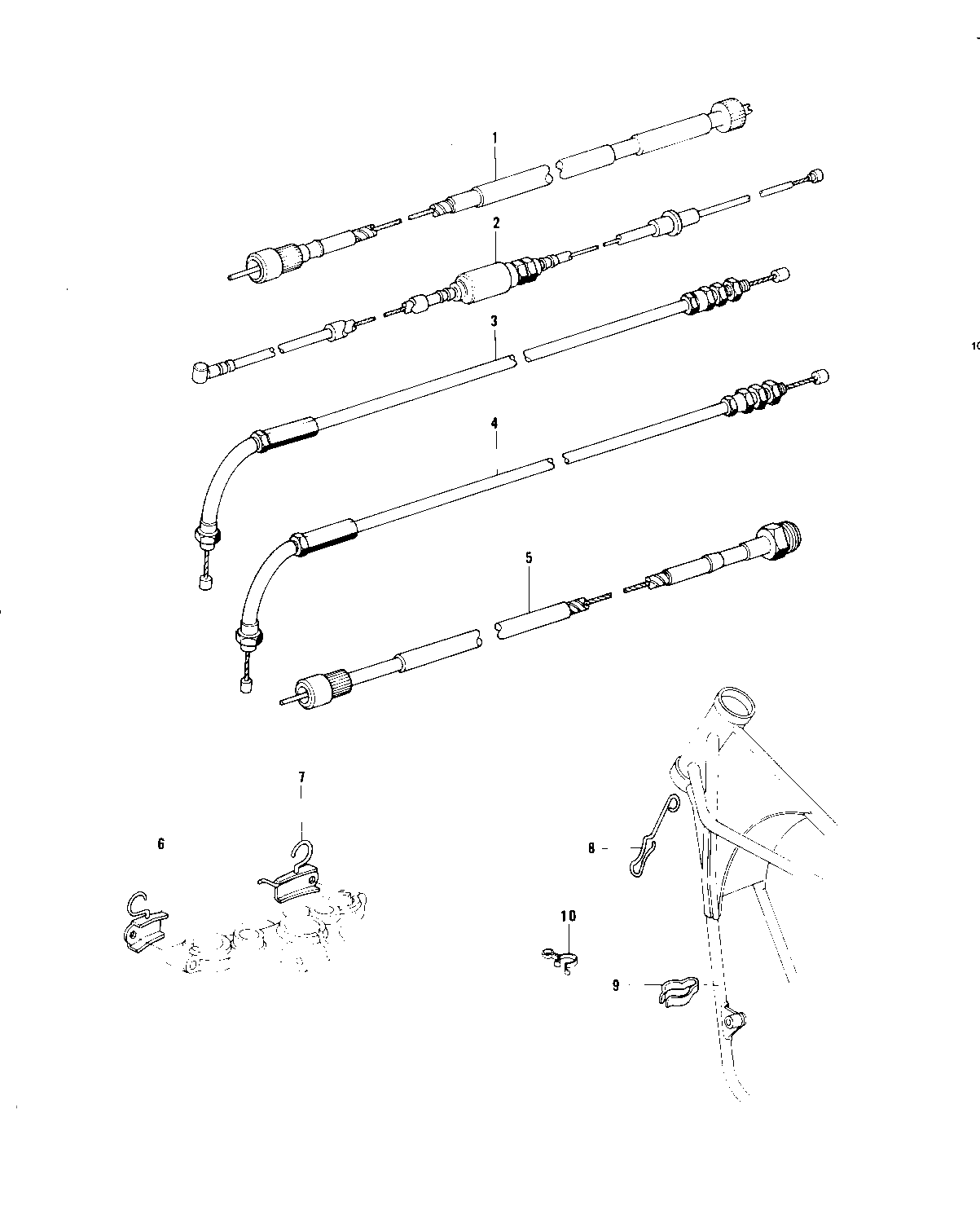

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,SPEEDOMETER | 1 | 54001-052 | 1 | KZ750-B1/B2 | |
| CABLE,SPEEDOMETER | 1 | 54001-1002 | 1 | KZ750-B3/B4 | |
| CABLE,CLUTCH | 2 | 54011-080 | 1 | ||
| CABLE,THROTTLE | 3 | 54012-124 | 1 | FOR OPENING | |
| CABLE,THROTTLE | 4 | 54012-125 | 1 | FOR CLOSING | |
| CABLE,TACHOMETER | 5 | 54018-021 | 1 | ||
| CLAMP,CABLE | 6 | 92037-090 | 1 | ||
| CLAMP,CABLE | 7 | 92037-104 | 1 | ||
| CLAMP | 8 | 92037-167 | 1 | KZ750-B1 | |
| CLAMP,CABLE | 9 | 92037-093 | 1 | ||
| CLAMP,CLUTCH CABLE | 10 | 92037-207 | 1 | KZ750-B2/B3/B4 |
