Parts Diagrams |

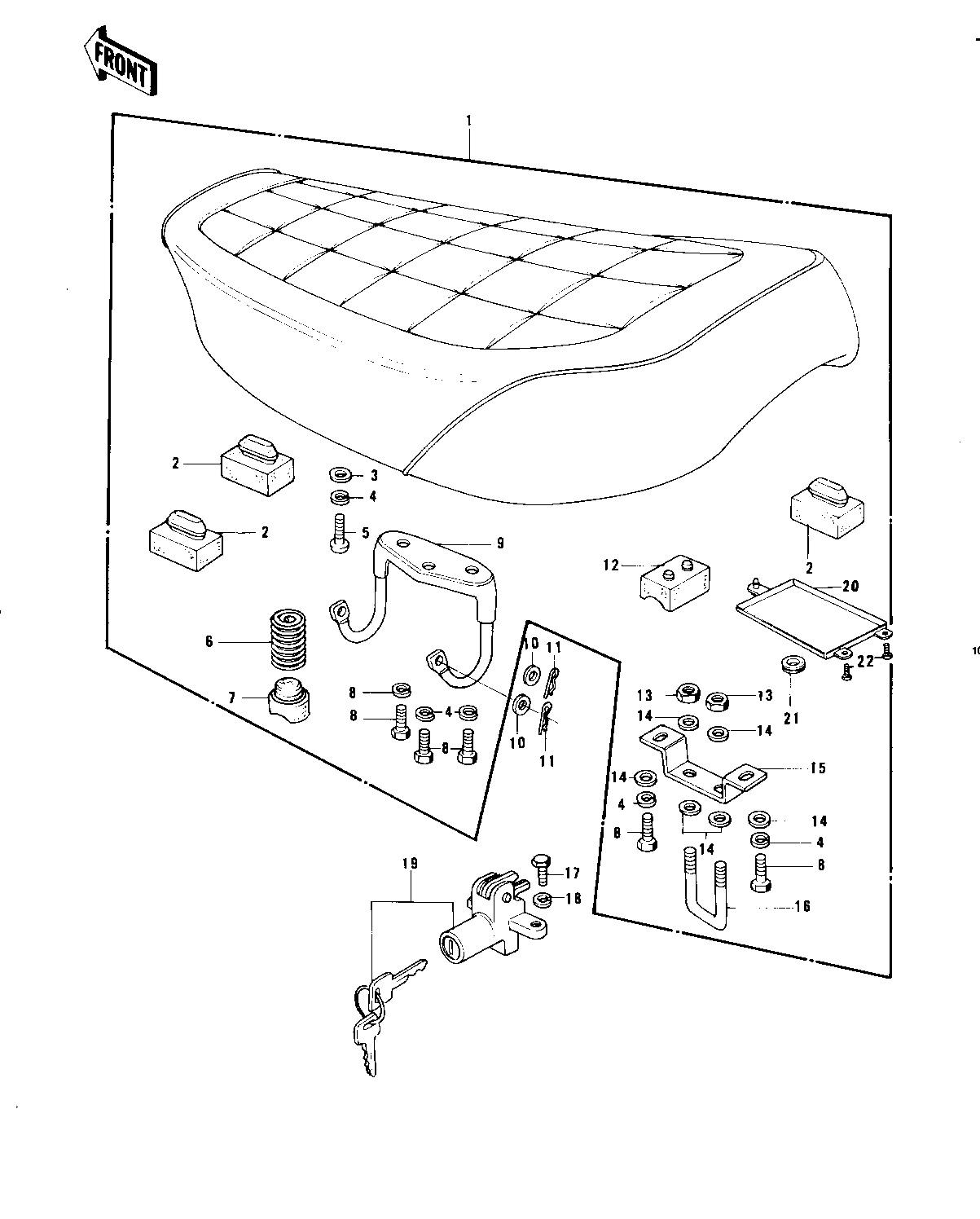

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT-ASSY,DUAL | 1 | 53001-114 | 1 | ||
| DAMPER RUBBER | 2 | 92075-099 | 4 | ||
| WASHER PLAIN 6MM | 3 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 4 | 461F0600 | 6 | ||
| SCREW PAN HEAD 6X14 | 5 | 220B0614 | 1 | ||
| SPRING | 6 | 92081-147 | 1 | ||
| DAMPER RUBBER | 7 | 92075-276 | 1 | ||
| BOLT-UPSET 6X14 | 8 | 112B0614 | 5 | ||
| HINGE | 9 | 53009-029 | 1 | ||
| WASHER PLAIN 8MM | 10 | 411B0800 | 2 | ||
| PIN,SNAP | 11 | 554A0800 | 2 | ||
| DAMPER RUBBER,SEAT | 12 | 92075-139 | 1 | ||
| NUT 6MM | 13 | 311B0600 | 4 | ||
| WASHER 6.5X20X1.6T | 14 | 92022-125 | 6 | ||
| BRACKET,SEAT CATCH | 15 | 53058-002 | 1 | ||
| CATCH, SEAT | 16 | 53056-002 | 1 | ||
| BOLT-UPSET,6X12 | 17 | 112G0612 | 1 | ||
| WASHER SPRING 6MM | 18 | 461F0600 | 1 | ||
| LOCK-ASSY,SEAT | 19 | 27016-5010 | 1 | KZ750-B1/B2/B3 | |
| LOCK-ASSY,SEAT | 19 | 27016-5010 | 1 | KZ750-B4 | |
| CASE | 20 | 32099-011 | 1 | ||
| GROMMET | 21 | 92071-056 | 1 | ||
| SCREW PAN HEAD 5X10 | 22 | 220B0510 | 2 |
