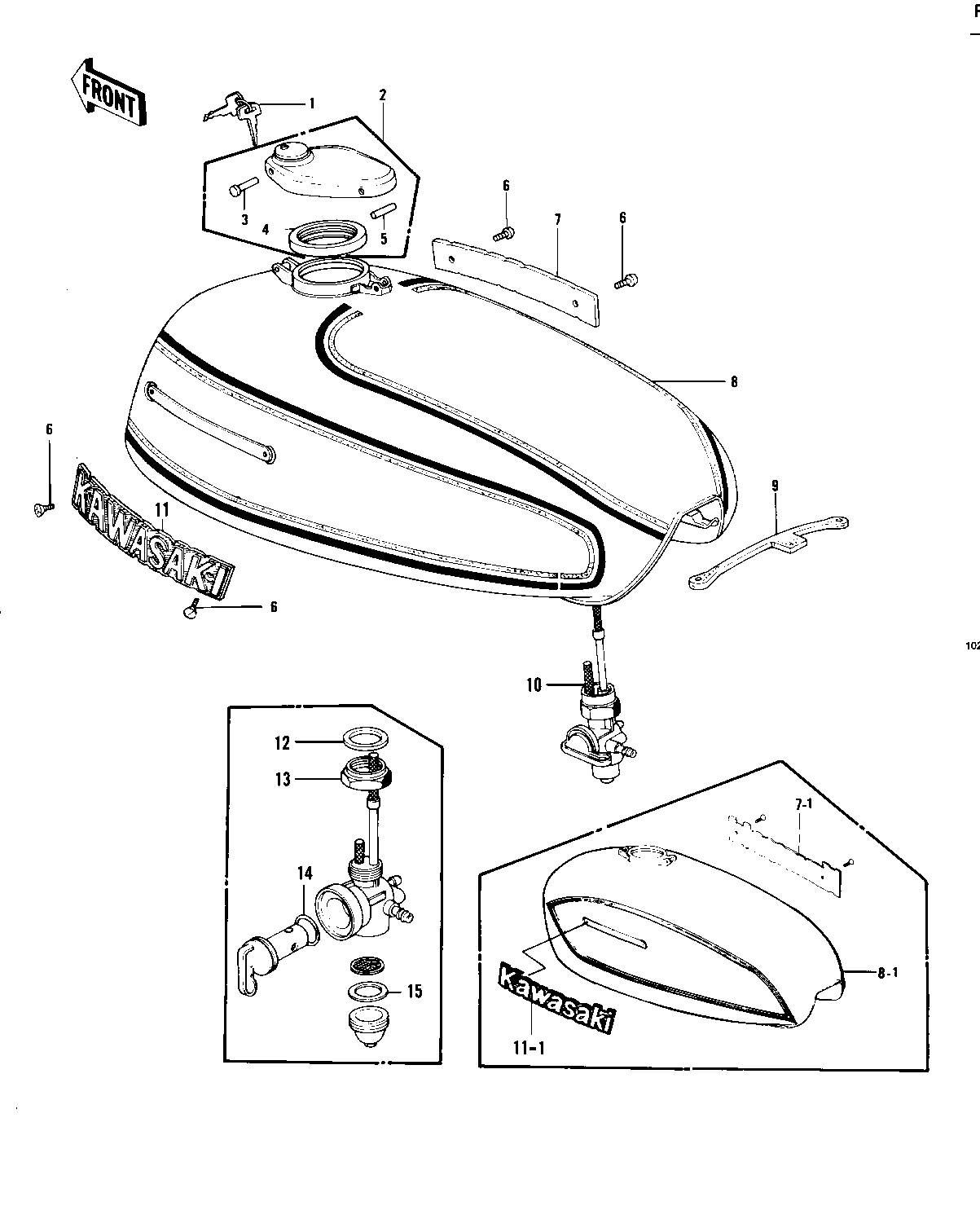

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FUEL TANK | 2 | 51048-012 | 1 | ||
| PIN,HOOK | 3 | 92043-126 | 1 | ||
| GASKET-FUEL TANK CAP | 4 | 51059-008 | 1 | ||
| PIN,CAP HINGE | 5 | 92043-127 | 1 | ||
| SCREW-CSK-CROS | 6 | 221C0306 | 4 | ||
| EMBLEM,FUEL TANK,R.H | 7 | 56014-062 | 1 | KZ750-B1/B2/B3 | |
| EMBLEM,FUEL TANK | 7-1 | 56014-1037 | 1 | KZ750-B4 | |
| TANK-FUEL,D.RED | 8 | 51001-106-4F | 1 | KZ750-B1 | |
| TANK-FUEL,D.N.BLUE | 8 | 51001-106-7B | 1 | KZ750-B2 | |
| TANK-FUEL,D.BROWN | 8 | 51001-106-7C | 1 | KZ750-B2 | |
| TANK-FUEL,L.D.GREEN | 8-1 | 51001-106-7X | 1 | KZ750-B3 | |
| TANK-FUEL,L.D.RED | 8-1 | 51001-106-7Y | 1 | KZ750-B3 | |
| TANK-FUEL,L.BROWN | 8-1 | 51001-106-A9 | 1 | KZ750-B4 | |
| TANK-FUEL,M.BLUE | 8-1 | 51001-106-8E | 1 | KZ750-B4 | |
| BAND,FUEL TANK | 9 | 92072-042 | 1 | ||
| COCK ASSY,FUEL | 10 | 51023-050 | 1 | ||
| EMBLEM,FUEL TANK | 11 | 56014-1006 | 1 | KZ750-B1/B2/B3 | |
| EMBLEM,FUEL TANK | 11-1 | 56014-1037 | 1 | KZ750-B4 | |
| GASKET-FUEL COCK JNT. | 12 | 92065-081 | 1 | ||
| FUEL COCK JOINT NUT | 13 | 51035-009 | 1 | ||
| "0" RING, 10MM | 14 | 670B2010 | 1 | ||
| GASKET FUEL COCK CUP | 15 | 51037-010 | 1 |
