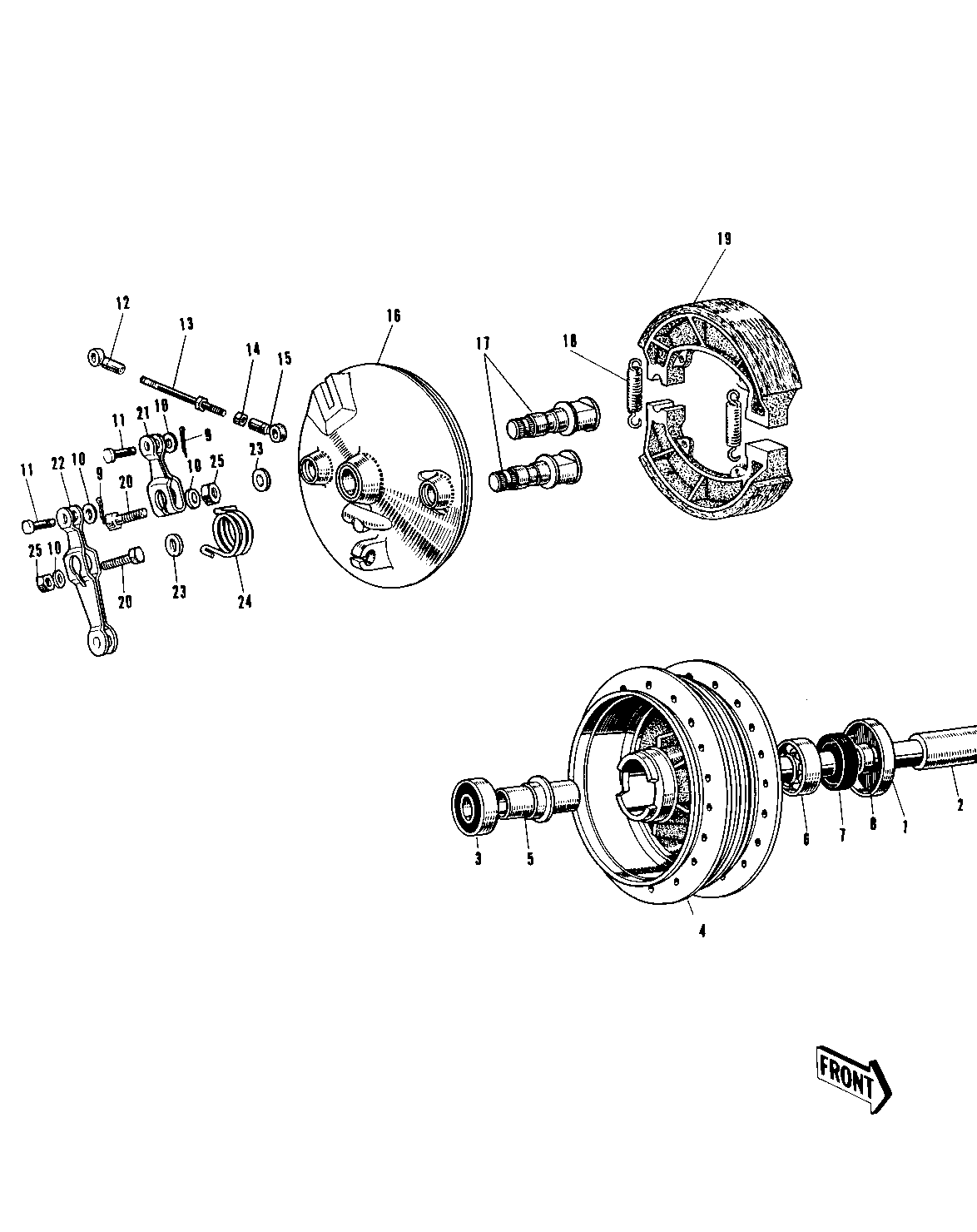

1968 Commander - FRONT HUB/BRAKE (E/NO.54590-)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DUST SHIELD FRONT HUB | 1 | 41042-005 | 1 | ||
| AXLE FRONT | 2 | 41068-020 | 1 | ||
| DRUM-ASSY,FR BRK | 3~7 | 41034-013 | 1 | ||
| BEARING BALL #6303Z | 3 | 601B6303Z | 1 | ||
| SPACER FR HUB BEARING | 5 | 41039-015 | 1 | L=57 M/M | |
| BEARING BALL #6303 | 6 | 601B6303 | 1 | ||
| OIL SEAL FRONT AXLE | 7 | 654A254708 | 1 | ||
| COLLAR AXLE OIL SEAL | 8 | 41069-009 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 9~25 | 41035-022 | 1 | ||
| PIN COTTER 1.2X10 | 9 | 550D1210 | 2 | ||
| WASHER PLAIN 6MM | 10 | 411B0600 | 4 | ||
| PIN BRAKE CONNECT ROD | 11 | 41055-003 | 2 | ||
| ROD END BRK CONNECT B | 12 | 41058-003 | 1 | ||
| ROD END,BRK CONNECT | 12 | 41058-009 | 1 | I.S.O. THREAD | |
| ROD BRK CAM LEV CONCT | 13 | 41057-003 | 1 | ||
| ROD BRK CAM LEV CONCT | 13 | 41057-011 | 1 | I.S.O. THREAD | |
| NUT,5MM | 14 | 311B0500 | 1 | ||
| NUT,5MM | 14 | 311B0500 | 1 | I.S.O. THREAD | |
| ROD END BRK CONNECT A | 15 | 41058-002 | 1 | ||
| ROD END,BRK CONNECT | 15 | 41058-008 | 1 | I.S.O. THREAD | |
| CAM SHAFT FRONT BRAKE | 17 | 41050-007 | 2 | ||
| SPRING,BRAKE SHOE | 18 | 41049-012 | 2 | ||
| SHOE BRAKE | 19 | 41048-007 | 2 | ||
| BOLT-UPSET | 20 | 112G0630 | 2 | ||
| LEVER FRT BRK CAM 2ND | 21 | 41053-012 | 1 | ||
| LEVER FRT BRK CAM 1ST | 22 | 41053-011 | 1 | ||
| DUST SHIELD BRAKE CAM | 23 | 41051-001 | 2 | ||
| SPRING BRAKE CAM LEV | 24 | 41056-003 | 1 | ||
| NUT 6MM | 25 | 311B0600 | 2 |
