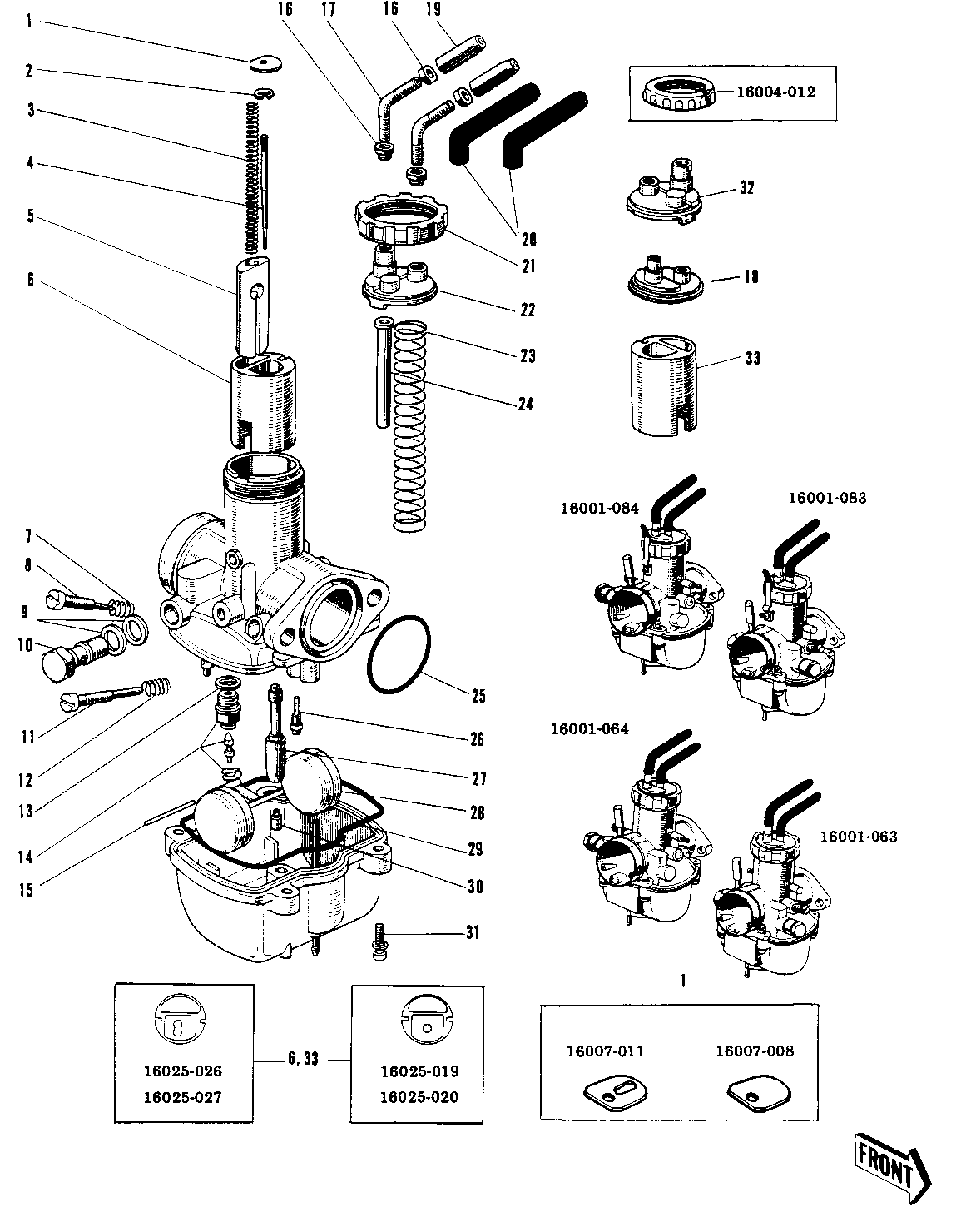

1968 W1SS - CARBURETORS (W2SS/W2TT)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY. R.H 1~33 16001-167 1 VM28
CARBURETOR ASSY. R.H 1~33 16001-167 1 VM28
CARBURETOR ASSY,L.H 1~33 16001-168 1 VM28
CARBURETOR ASSY,L.H 1~33 16001-168 1 VM28
SPRING SEAT THRTL VLV 1 16007-011 (2 WHN EXH USE 16007-011
SPRING SEAT THRTL VLV 1 16007-011 2
CIRCLIP 2 16008-010 2
SPRING AIR SHUTTER 3 16040-003 2
JET NEEDLE 5L1 4 16009-017 2 5L1
SHUTTER AIR 5 16041-003 2
VALVE THROTTLE R.H 6 16025-027 (1 CA2.0
VALVE THROTTLE R.H 6 16025-027 1 CA2.0
SPRING THR STOP SCREW 7 16022-005 2
SCREW THROTTLE STOP 8 16021-007 2
GASKET,10,2X15X1.5T 9 11009-1146 4
BOLT BANJO 10 92060-006 2 WHITWORTH THREAD
BOLT BANJO 10 92060-011 2 METRIC THREAD
SCREW PILOT AIR ADJST 11 16014-007 2
SPRING,THROTTLE ADJST 12 16022-010 2
WASHER FLOAT VLV SEAT 13 16029-005 2
FLOAT VALVE ASSY 14 16030-006 2
FLOAT PIN 15 16032-003 2
NUT CABLE ADJUST LOCK 16 16003-004 8
CABLE GUIDE 17 16077-001 4
TOP MIXING CHAMBER 18 16005-019 2
CABLE ADJUSTER 19 16002-004 4
CAP RUBBER 20 16037-003 4
CAP MIXING CHAMBER 21 16004-007 2 WHITWORTH THREAD
CAP MIXING CHAMBER 21 16004-012 2 METRIC THREAD
UNAVAILABLE IN PRICE BOOK 22 16005-014 (1 WHN EXH USE 16005-017
TOP MIXING CHAMBER RH 22 16005-017 1
SPRING THROTTLE VALVE 23 16006-011 2
GUIDE AIR SHUTTER 24 16045-002 2 NOT REQUIRED FOR 16005-014
"O" RING,MANIFOLD 25 16038-006 2
PILOT JET NO.25 26 92064-030 (2 #25
PILOT JET #30 26 92064-029 2 #30
NEEDLE JET O-6 27 16017-023 (2 O-6
NEEDLE JET O-6 27 16017-038 2 O-4
UNAVAILABLE IN PRICE BOOK 27 16017-033 2 O-4
FLOAT 28 16031-011 2
GASKET FLOAT CHAMBER 29 16019-009 2
JET-MAIN NO 220A 30 92063-024 2 S.T.D.
SCREW FLOAT CHAMBER 31 16033-007 8
SCREW FLOAT CHAMBER 31 16033-011 8 I.S.O. THREAD
UNAVAILABLE IN PRICE BOOK 32 16005-015 (1 WHN EXH USE 16005-018
TOP MIXING CHAMBER LH 32 16005-018 1
VALVE THROTTLE L.H 33 16025-020 (1
VALVE THROTTLE L.H 33 16025-026 1 CA2.0
