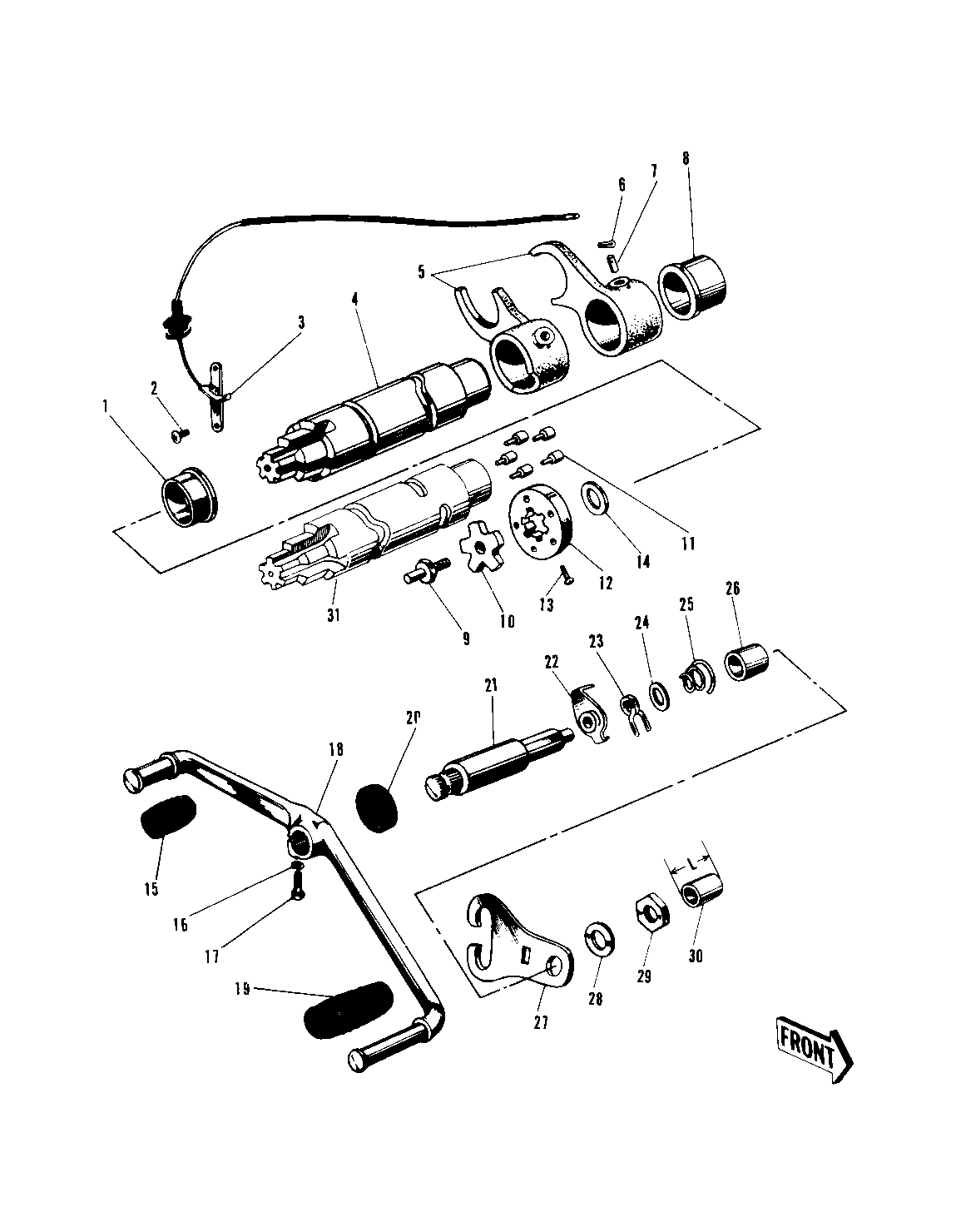

1968 Commander - GEAR CHANGE MECHANISM
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 92028-060 | 1 | D=13 M/M | |
| SCREW PAN HEAD 6X8 | 2 | 220B0608 | 2 | ||
| SWITCH NEUTRAL | 3 | 13151-008 | 1 | ||
| DRUM GEAR CHANGE | 4 | 13141-017 | 1 | FOR ROTARY SHIFT | |
| FORK SELECTOR | 5 | 13140-016 | 2 | ||
| PIN COTTER 3.0X20 | 6 | 550D3020 | 2 | ||
| PIN SELECT FORK GUIDE | 7 | 92043-005 | 2 | ||
| BUSH CHANGE DRUM B | 8 | 92028-064 | 1 | L=19 M/M | |
| BOLT HEX HEAD 8MM | 9 | 92001-022 | 1 | ||
| WASHER CHNG DR OPR DS | 10 | 92022-059 | 1 | ||
| PIN GEAR CHANGE DRUM | 11 | 92042-011 | 5 | ||
| PLATE CHANGE DRUM PIN | 12 | 13142-006 | 1 | ||
| SCREW PAN HEAD 4X6 | 13 | 211Z0406 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 13 | 211Z0406A | 1 | I.S.O. THREAD | |
| PLATE CHANGE DRUM PIN | 14 | 13142-005 | 1 | ||
| RUBBER CHANGE PEDAL B | 15 | 13157-003 | 1 | L=26 M/M | |
| WASHER SPRING 8MM | 16 | 461F0800 | 1 | ||
| BOLT-SMALL-UPSET,8X22 | 17 | 115B0822 | 1 | ||
| PEDAL GEAR CHANGE | 18 | 13156-022 | 1 | ||
| RUBBER CHANGE PEDAL A | 19 | 13157-002 | 1 | L=48 M/M | |
| OIL SEAL VB20326 | 20 | 92053-004 | 1 | ||
| SHAFT GEAR CHNG PEDAL | 21 | 13167-010 | 1 | ||
| LEVER GEAR CHANGE | 22 | 13163-010 | 1 | ||
| SPRING CHANGE PEDAL | 23 | 92083-006 | 1 | ||
| WASHER 16MM | 24 | 13164-001 | 1 | ||
| SPRING CHANGE LEVER | 25 | 92081-016 | 1 | ||
| SPACER RATCHET LEVER | 26 | 92026-018 | 1 | L=21 M/M | |
| LEVER GEAR CHNG PAWL | 27 | 13165-010 | 1 | ||
| WASHER RATCHET LEVER | 28 | 92022-061 | 1 | ||
| NUT 16MM | 29 | 92016-036 | 1 | ||
| BUSH CHANGE PEDAL SHT | 30 | 92028-063 | 1 | L=16 M/M |
