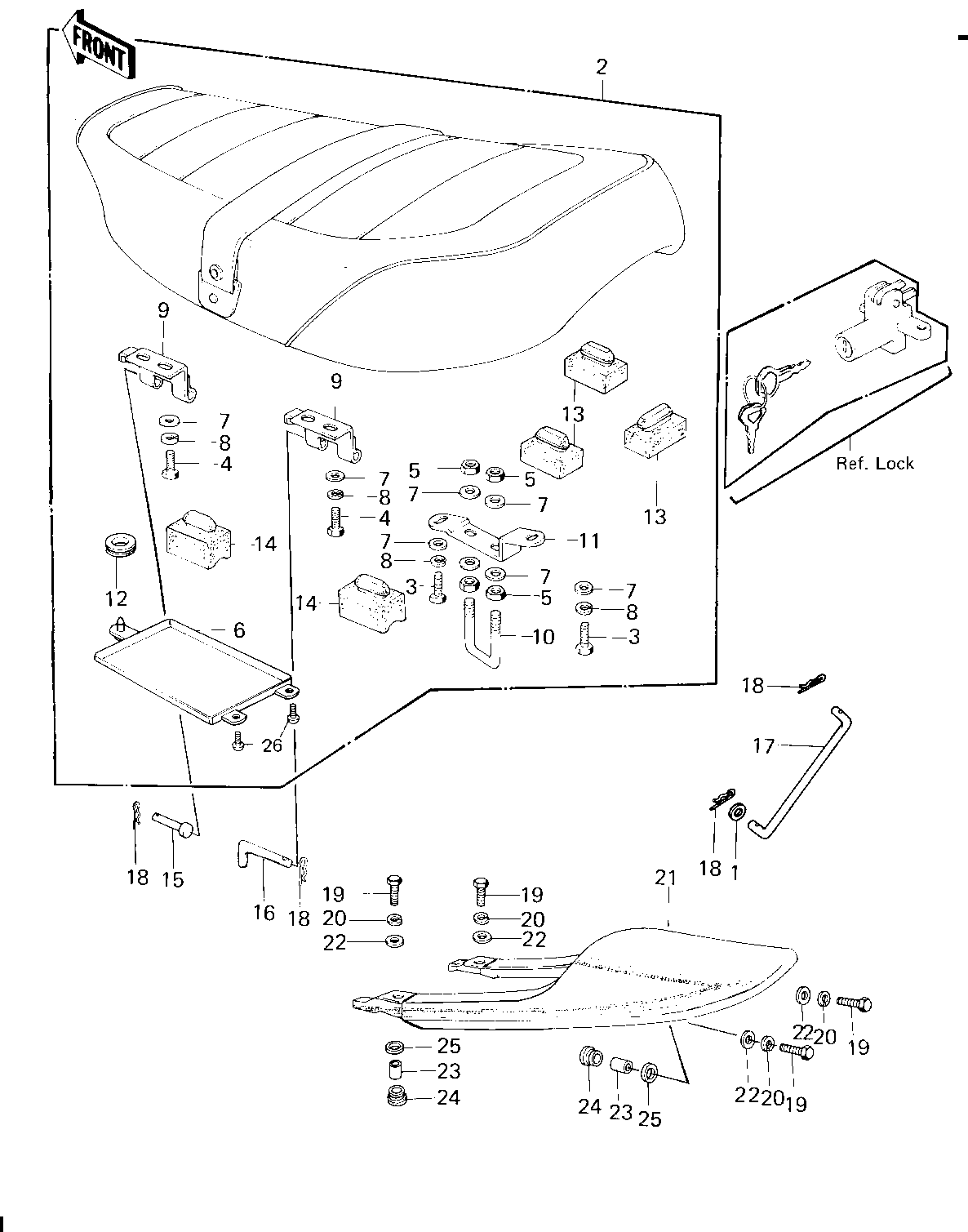

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER PLAIN 6MM | 1 | 410B0600 | 1 | ||
| SEAT-ASSY,DUAL,W/BAND | 2 | 53001-1194 | 1 | ||
| BOLT-UPSET 6X14 | 3 | 112B0614 | 2 | ||
| BOLT-UPSET,6X16 | 4 | 112G0616 | 4 | ||
| NUT 6MM | 5 | 311B0600 | 4 | ||
| CASE | 6 | 32099-011 | 1 | ||
| WASHER PLAIN 6MM | 7 | 411B0600 | 10 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 6 | ||
| HINGE,FRONT | 9 | 53009-031 | 2 | ||
| CATCH, SEAT | 10 | 53056-002 | 1 | ||
| BRACKET,SEAT CATCH | 11 | 53058-004 | 1 | ||
| GROMMET | 12 | 92071-056 | 1 | ||
| DAMPER RUBBER | 13 | 92075-099 | 3 | ||
| DAMPER RUBBER-SEAT | 14 | 92075-156 | 2 | ||
| PIN | 15 | 53011-002 | 1 | ||
| PIN,DUAL SEAT PIVOT | 16 | 53011-008 | 1 | ||
| STOPPER,SEAT | 17 | 53054-006 | 1 | ||
| PIN,SNAP | 18 | 554A0600 | 4 | ||
| BOLT-UPSET | 19 | 112G0625 | 4 | ||
| WASHER SPRING 6MM | 20 | 461F0600 | 4 | ||
| COVER,SEAT,L.D.BLUE | 21 | 14025-5019-7Z | 1 | ||
| COVER,SEAT,C.E.GREEN | 21 | 14025-5026-4U | 1 | (CANADA ONLY) | |
| WASHER,PLAIN,7MM | 22 | 92022-228 | 4 | ||
| COLLAR | 23 | 92027-241 | 4 | ||
| RUBBER,FENDER COVER | 24 | 92075-174 | 4 | ||
| DAMPER RUBBER | 25 | 92075-175 | 4 | ||
| SCREW PAN HEAD 5X10 | 26 | 220B0510 | 2 |
