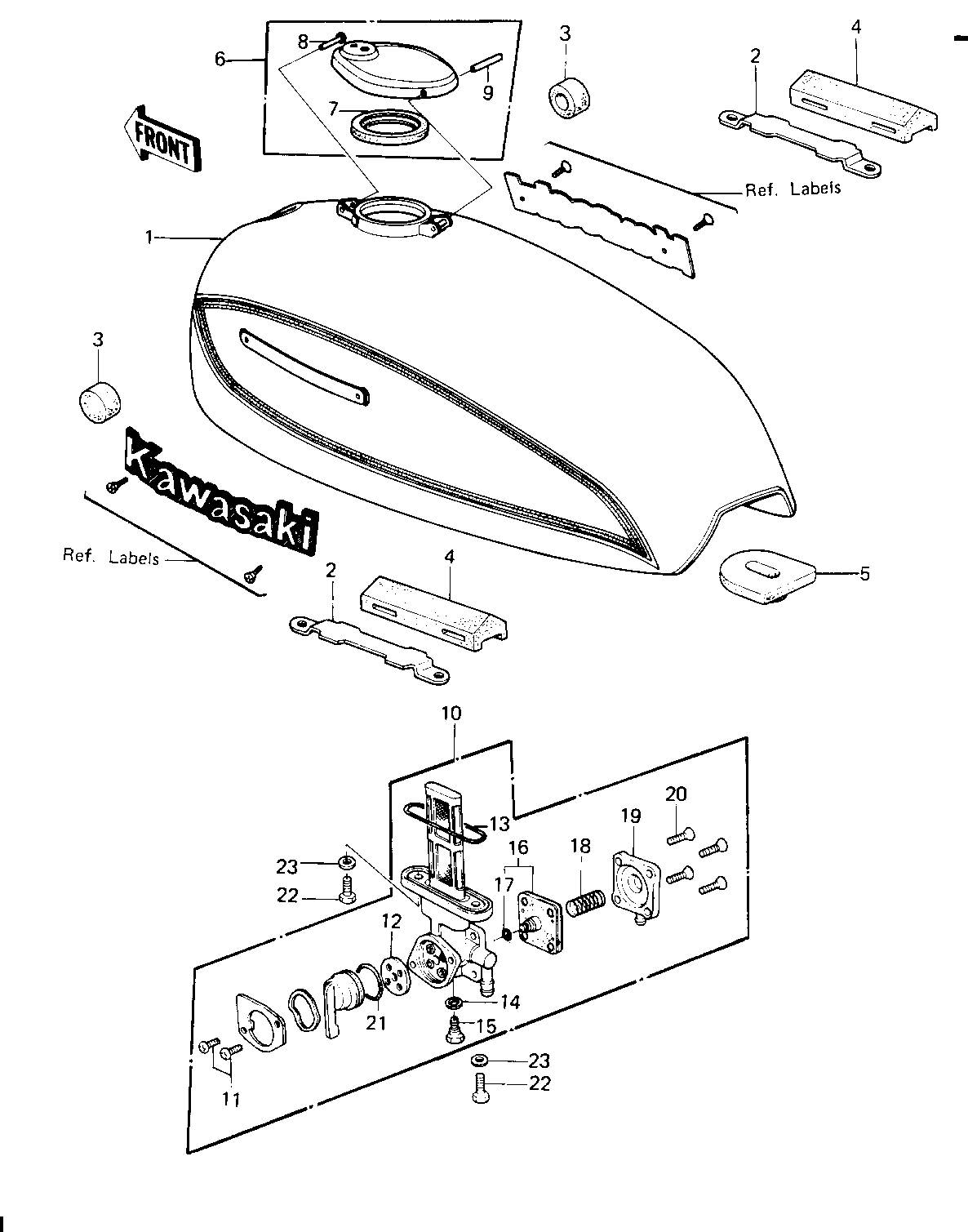

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,L.D.BLUE | 1 | 51001-5037-7Z | 1 | ||
| TANK-FUEL,C.E.GREEN | 1 | 51001-5059-4U | 1 | ||
| BRACKET,IGNITION COIL | 2 | 11034-1125 | 2 | ||
| DAMPER RUBBER-FL TANK | 3 | 92075-101 | 2 | ||
| DAMPER,IGNITION COIL | 4 | 92075-1033 | 2 | ||
| DAMPER RUBBER FUEL TA | 5 | 92075-295 | 1 | ||
| CAP,FUEL TANK | 6 | 51048-012 | 1 | ||
| GASKET-FUEL TANK CAP | 7 | 51059-008 | 1 | ||
| PIN,HOOK | 8 | 92043-126 | 1 | ||
| PIN,CAP HINGE | 9 | 92043-127 | 1 | ||
| TAP ASSY,FUEL | 10 | 51023-1023 | 1 | ||
| SCREW PAN HEAD 3X8 | 11 | 220B0308 | 2 | ||
| GASKET,TAP VALVE | 12 | 11009-1194 | 1 | ||
| "0" RING | 13 | 51039-010 | 1 | ||
| GASKET,DRAIN BOLT | 14 | 11009-1045 | 1 | ||
| BOLT,DRAIN | 15 | 92001-1089 | 1 | ||
| DIAPHRAGM ASSY,TAP | 16 | 43028-1015 | 1 | ||
| "O" RING,4MM | 17 | 670B1504 | 1 | ||
| SPRING,TAP | 18 | 92081-1171 | 1 | ||
| COVER ASSY,TAP | 19 | 16146-1005 | 1 | ||
| SCREW CNTSNK HD 4X12 | 20 | 221B0412A | 4 | ||
| "0" RING,TAP LEVER | 21 | 92055-1027 | 1 | ||
| BOLT,6X20,FUEL TAP | 22 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 23 | 92022-183 | 2 |
