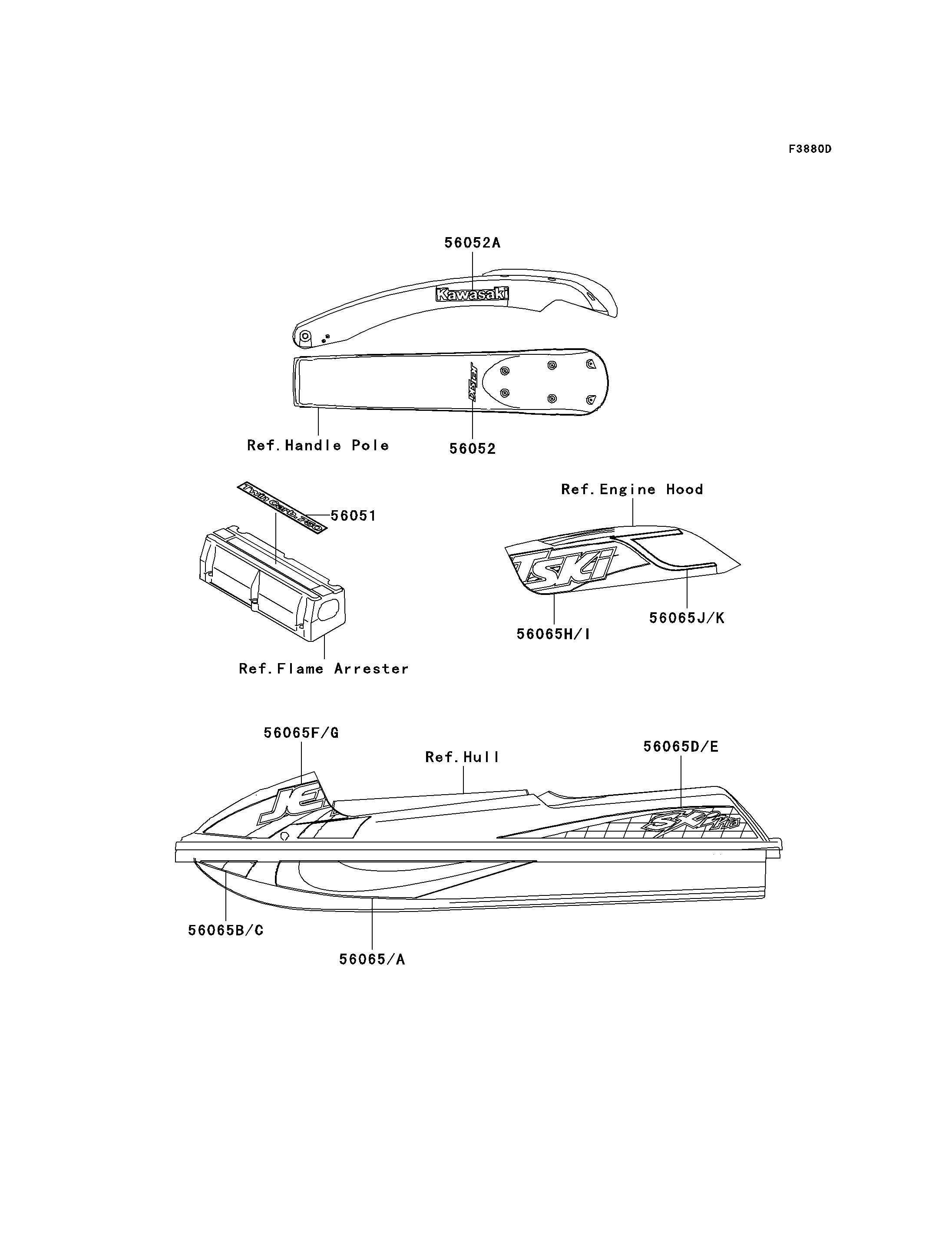

Parts Diagrams |
56051
56052
56052A
56065
56065A
56065B
56065C
56065D
56065E
56065F
56065G
56065H
56065I
56065J
56065K
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,TWIN CARB.750 | 56051 | 56051-3742 | 1 | ||
| MARK,METER COVER,JET SKI | 56052 | 56052-3754 | 1 | ||
| MARK,HANDLE POLE,KAWASAKI | 56052A | 56052-3762 | 2 | ||
| PATTERN,HULL,RR,LH | 56065 | 56065-3728 | 1 | ||
| PATTERN,HULL,RR,RH | 56065A | 56065-3729 | 1 | ||
| PATTERN,HULL,FR,LH | 56065B | 56065-3730 | 1 | ||
| PATTERN,HULL,FR,RH | 56065C | 56065-3731 | 1 | ||
| PATTERN,DECK,RR,LH | 56065D | 56065-3732 | 1 | ||
| PATTERN,DECK,RR,RH | 56065E | 56065-3733 | 1 | ||
| PATTERN,DECK,FR,LH | 56065F | 56065-3734 | 1 | ||
| PATTERN,DECK,FR,RH | 56065G | 56065-3735 | 1 | ||
| PATTERN,ENGINE HOOD,FR,LH | 56065H | 56065-3736 | 1 | ||
| PATTERN,ENGINE HOOD,FR,RH | 56065I | 56065-3737 | 1 | ||
| PATTERN,ENGINE HOOD,RR,LH | 56065J | 56065-3738 | 1 | ||
| PATTERN,ENGINE HOOD,RR,RH | 56065K | 56065-3739 | 1 |
| MARK,TWIN CARB.750 | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,METER COVER,JET SKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,HANDLE POLE,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RR,LH | |
| REF # | 56065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RR,RH | |
| REF # | 56065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,FR,LH | |
| REF # | 56065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,FR,RH | |
| REF # | 56065C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH | |
| REF # | 56065D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH | |
| REF # | 56065E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,LH | |
| REF # | 56065F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,RH | |
| REF # | 56065G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,FR,LH | |
| REF # | 56065H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,FR,RH | |
| REF # | 56065I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RR,LH | |
| REF # | 56065J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RR,RH | |
| REF # | 56065K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
