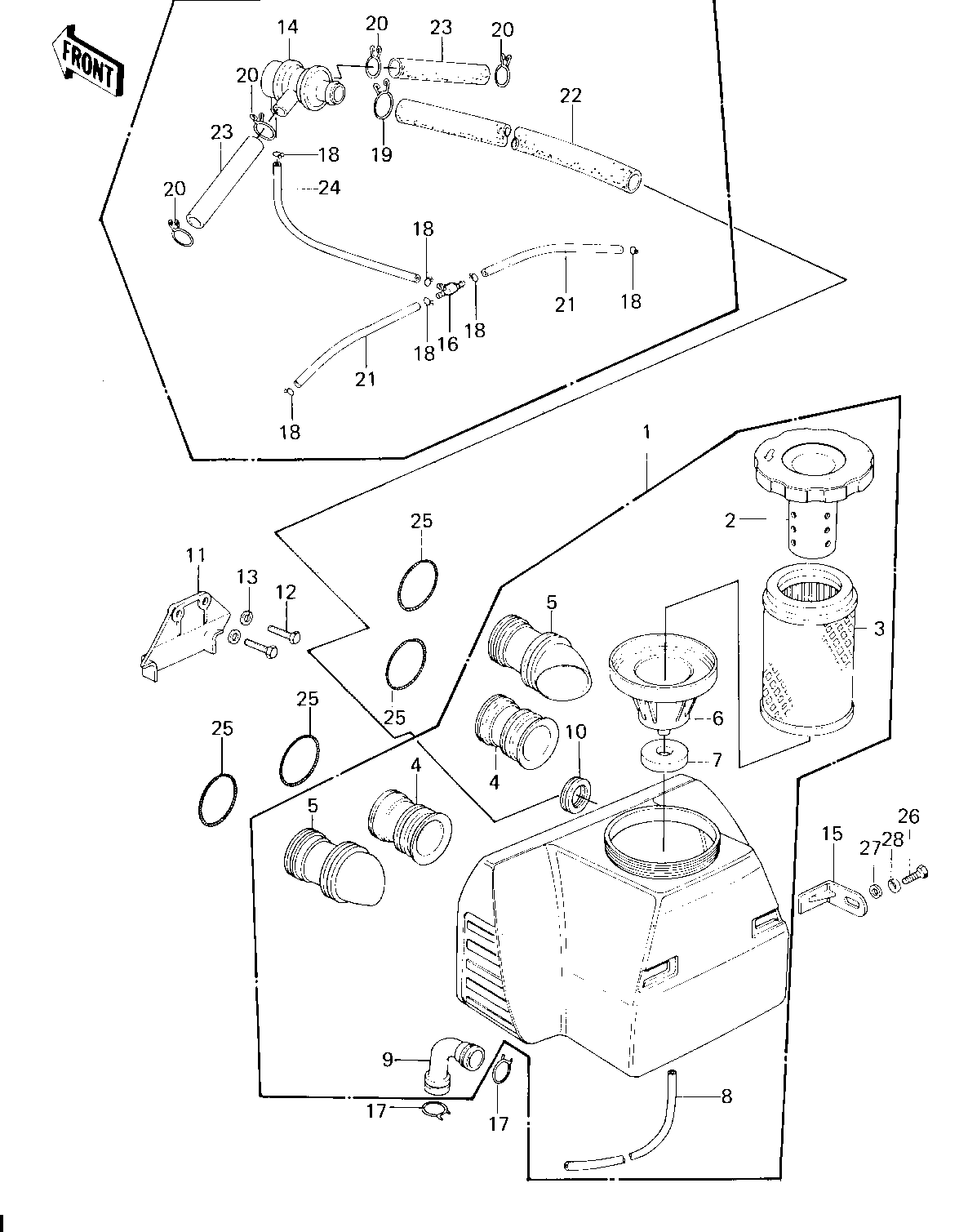

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 1 | 11010-1078 | 1 | ||
| CAP,AIR CLEANER | 2 | 11012-069 | 1 | ||
| ELEMENT,AIR CLNR | 3 | 11013-1006 | 1 | ||
| INLET DUCT,#2,3 | 4 | 11015-057 | 2 | ||
| INLET PIPE,#1.4 | 5 | 11015-063 | 2 | ||
| HOLDER,INLET PIPE | 6 | 11033-006 | 1 | ||
| GASKET,HOLDER | 7 | 11039-003 | 1 | ||
| TUBE, VINYL, 6X200 | 8 | 700Q6200 | 1 | ||
| TUBE,BREATHER | 9 | 92059-137 | 1 | ||
| GROMMET,AIR CLEANER | 10 | 92071-1013 | 1 | ||
| BAFFLE PLT,AIR CLEANER | 11 | 11019-003 | 1 | ||
| BOLT-UPSET | 12 | 112G0618 | 2 | ||
| WASHER PLAIN 6MM | 13 | 411B0600 | 2 | ||
| VALVE ASSY,AIR SWITCH | 14 | 16126-1005 | 1 | ||
| BRACKET,AIR CLEANER | 15 | 32070-038 | 2 | ||
| FITTING,TUBE | 16 | 92005-1017 | 1 | ||
| CLAMP BREATHER PIPE | 17 | 92037-028 | 2 | ||
| CLAMP-PIPE | 18 | 92037-072 | 6 | ||
| CLAMP | 19 | 92037-1076 | 1 | ||
| CLAMP,BREATHER TUBE | 20 | 92037-213 | 4 | ||
| TUBE,VACUUM,LONG | 21 | 92059-1162 | 2 | ||
| TUBE,19X25X415 | 22 | 92059-1041 | 1 | ||
| TUBE,14X20X100 | 23 | 92059-1042 | 2 | ||
| TUBE,4X9X290 | 24 | 92059-1043 | 1 | ||
| SPRING COIL | 25 | 92081-047 | 4 | ||
| BOLT-UPSET,6X12 | 26 | 112G0612 | 2 | ||
| WASHER PLAIN 6MM | 27 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 28 | 461F0600 | 2 |
