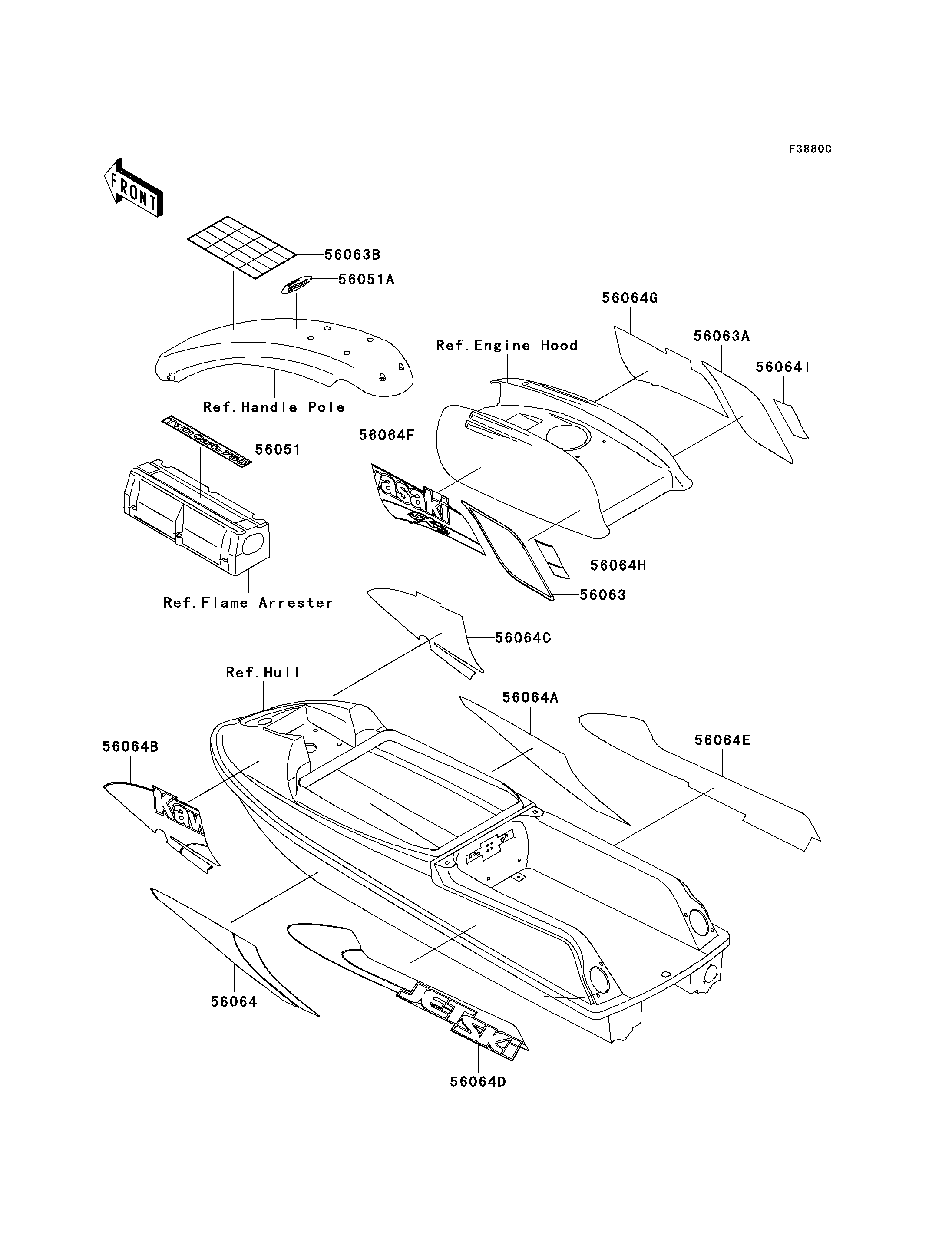

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
56051
56051A
56063
56063A
56063B
56064
56064A
56064B
56064C
56064D
56064E
56064F
56064G
56064H
56064I
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,TWIN CARB.750 | 56051 | 56051-3742 | 1 | ||
| MARK,HANDLE COVER,JET SKI | 56051A | 56051-3751 | 1 | ||
| PATTERN,ENGINE HOOD,RR,LH | 56063 | 56063-3745 | 1 | ||
| PATTERN,ENGINE HOOD,RR,RH | 56063A | 56063-3747 | 1 | ||
| PATTERN,HANDLE POLE | 56063B | 56063-3748 | 1 | ||
| PATTERN,HULL,LH | 56064 | 56064-3709 | 1 | ||
| PATTERN,HULL,RH | 56064A | 56064-3710 | 1 | ||
| PATTERN,DECK,FR,LH | 56064B | 56064-3711 | 1 | ||
| PATTERN,DECK,FR,RH | 56064C | 56064-3712 | 1 | ||
| PATTERN,DECK,RR,LH | 56064D | 56064-3713 | 1 | ||
| PATTERN,DECK,RR,RH | 56064E | 56064-3714 | 1 | ||
| PATTERN,ENGINE HOOD,FR,LH | 56064F | 56064-3715 | 1 | ||
| PATTERN,ENGINE HOOD,FR,RH | 56064G | 56064-3716 | 1 | ||
| PATTERN,ENGINE HOOD,RR,LH | 56064H | 56064-3717 | 1 | ||
| PATTERN,ENGINE HOOD,RR,RH | 56064I | 56064-3718 | 1 |
| MARK,TWIN CARB.750 | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,HANDLE COVER,JET SKI | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RR,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RR,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HANDLE POLE | |
| REF # | 56063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,LH | |
| REF # | 56064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RH | |
| REF # | 56064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,LH | |
| REF # | 56064B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,RH | |
| REF # | 56064C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH | |
| REF # | 56064D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH | |
| REF # | 56064E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,FR,LH | |
| REF # | 56064F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,FR,RH | |
| REF # | 56064G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RR,LH | |
| REF # | 56064H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,ENGINE HOOD,RR,RH | |
| REF # | 56064I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
