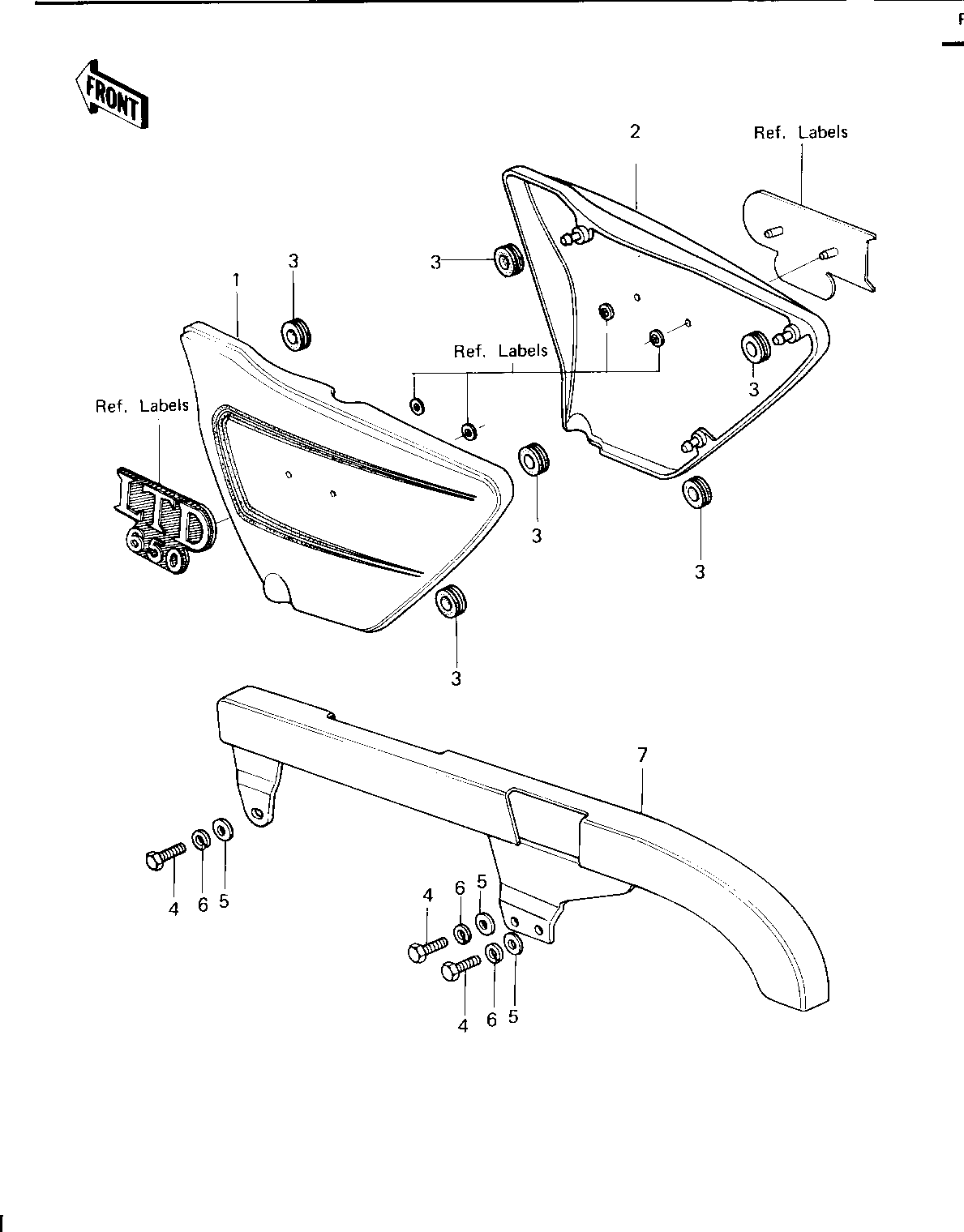

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE,L.H,B PERL | 1 | 36001-1055-B5 | 1 | ||
| COVER,SIDE,L.H,P.RED | 1 | 36001-5010-A5 | 1 | ||
| COVER,SIDE,R.H,B.PERL | 2 | 36001-1056-B5 | 1 | ||
| COVER,SIDE,R.H,P.RED | 2 | 36001-5011-A5 | 1 | ||
| GROMMET | 3 | 92071-056 | 6 | ||
| BOLT-UPSET,6X16 | 4 | 112G0616 | 3 | ||
| WASHER PLAIN 6MM | 5 | 410B0600 | 3 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 3 | ||
| CASE,CHAIN | 7 | 36014-1039 | 1 |
