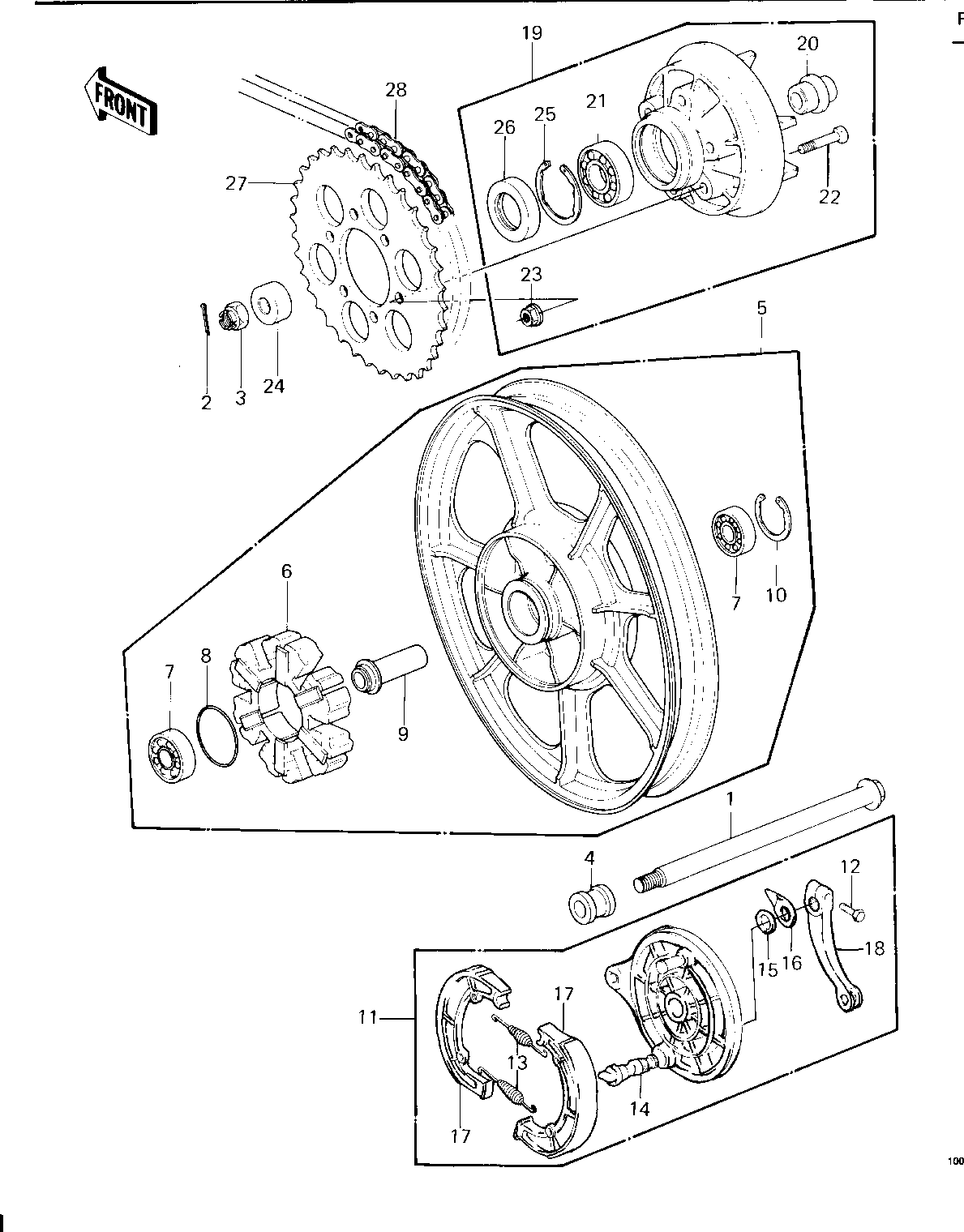

1980 LTD - REAR WHEEL/HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,RR 1 41068-1086 1
PIN-COTTER,4.0X35 2 550D4035 1
NUT CASTLE,16MM 3 92015-055 1
COLLAR,AXLE,L=28M/M 4 92027-1226 1
SOLID WHEEL ASSY,REAR 5 41073-1065 1
SHOCK DAMPER 6 42014-032 1
BRG,BALL,#6303ZZC3 7 601B6303ZZ 2
"0" RING,60MM 8 671B2560 1
COLLAR,REAR HUB BRG. 9 92027-1047 1
CIRCLIP,47M/M 10 92033-1042 1
PANEL-ASY,RR BRK 11 41035-1056 1 F/NO. 000001 ~ 003356
PANEL-ASY,RR BRK 11 41035-1056 AL
PANEL-ASY,BRK BLACK 11 41035-1055 1 F/NO. 003357 ~ 005006
PANEL-ASY,BRK BLACK 11 41035-1055 AL
BOLT HEX HEAD 8X28 12 114G0828 1
SPRING,BRAKE SHOE 13 41049-012 2
SPRING,BRAKE SHOE 13 41049-012 2
CAM SHAFT,BRAKE 14 41050-017 1
DUST SHIELD-BRAKE CAM 15 41051-003 1
INDICATOR,BRAKE SHOE 16 41085-004 1
SHOE,BRAKE 17 42019-012 2
LEVER REAR BRAKE CAM 18 42029-039 1
COUPLING ASSY,RR HUB 19 42033-1018 1
SLEEVE,RR HUB COUPLNG 20 42036-1030 1
BALL BEARING,#6206 21 601B6206 1
BOLT 22 92001-161 6
NUT,10MM 23 92015-1415 6
COLLAR,AXLE,L=20.5M/M 24 92027-1227 1
CIRCLIP,62M/M 25 92033-1044 1
OIL SEAL 26 92050-027 1
REAR SPROCKET,4/T 27 42041-1024 1
CHAIN-EX50MV-0X102L 28 92057-1232 1
