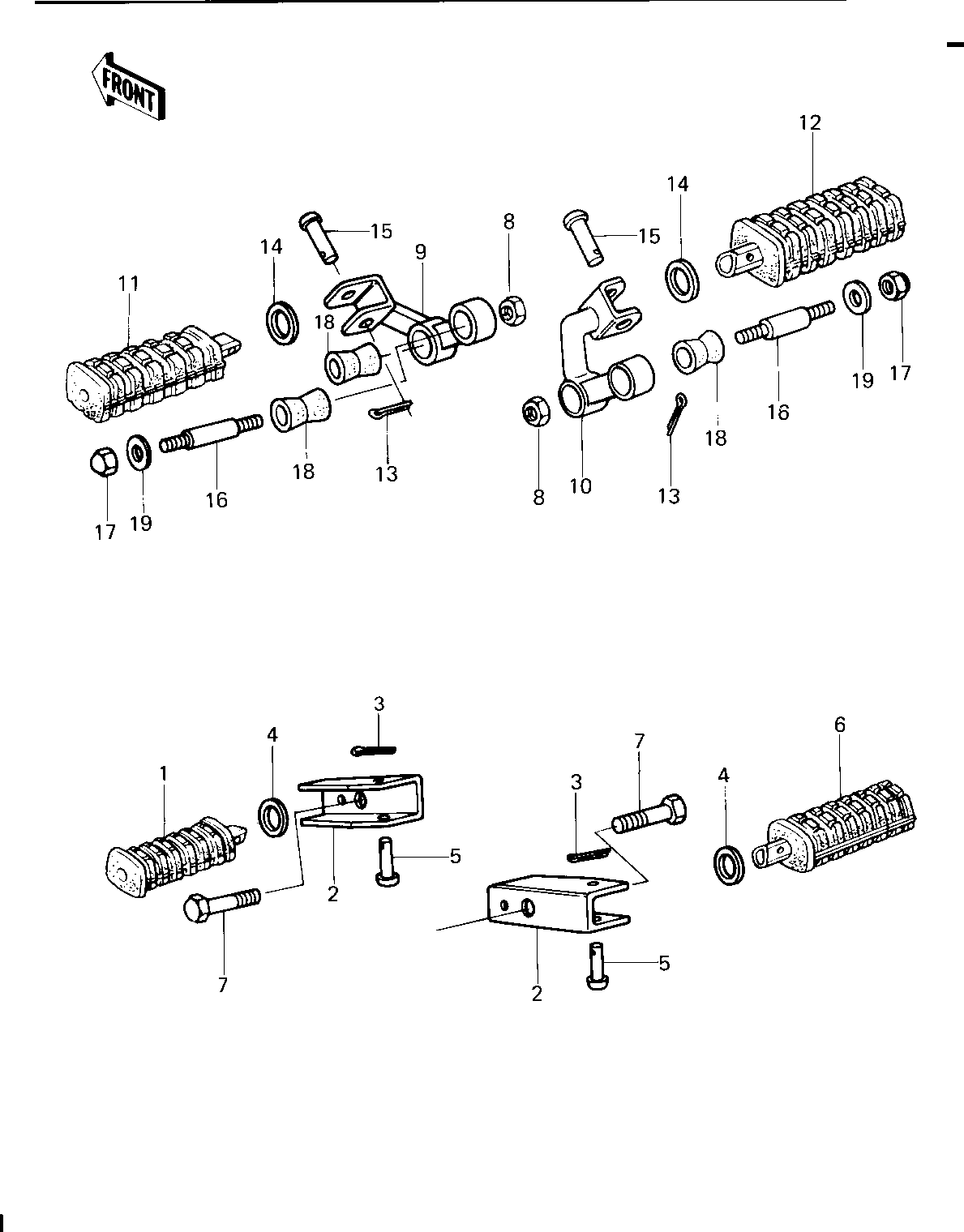

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STEP,FOOTREST,REAR,LH | 1 | 34028-1009 | 1 | ||
| BRACKET,REAR FOOTREST | 2 | 34036-002 | 2 | ||
| PIN,COTTER,2.0X12 | 3 | 550D2012 | 2 | ||
| WASHER-PLAIN | 4 | 92022-181 | 2 | ||
| PIN | 5 | 92043-1464 | 2 | ||
| STEP,FOOTREST,REAR,RH | 6 | 34028-1010 | 1 | ||
| BOLT,HEX HEAD,10X40 | 7 | 92003-213 | 2 | ||
| NUT 10MM | 8 | 315B1000 | 4 | ||
| HOLDER,STEP,L.H. | 9 | 34003-1012 | 1 | ||
| HOLDER,STEP,R.H. | 10 | 34003-1015 | 1 | ||
| STEP,FOOTREST,FRONT,L | 11 | 34028-1007 | 1 | ||
| STEP,FOOTREST,FRONT,R | 12 | 34028-1008 | 1 | ||
| PIN COTTER 2.5X16 | 13 | 550D2516 | 2 | ||
| WASHER,PLAIN | 14 | 92022-250 | 2 | ||
| PIN-FOOTREST BAR FIT | 15 | 92043-080 | 2 | ||
| STUD,FOOTREST BAR FIT | 16 | 92004-048 | 4 | ||
| NUT,CAP AND LOCK,8MM | 17 | 92019-013 | 4 | ||
| DAMPER RUBBER,FOOTRES | 18 | 92075-293 | 4 | ||
| CAP,FOOTRESTBAR | 19 | 92102-010 | 4 |
