Parts Diagrams |

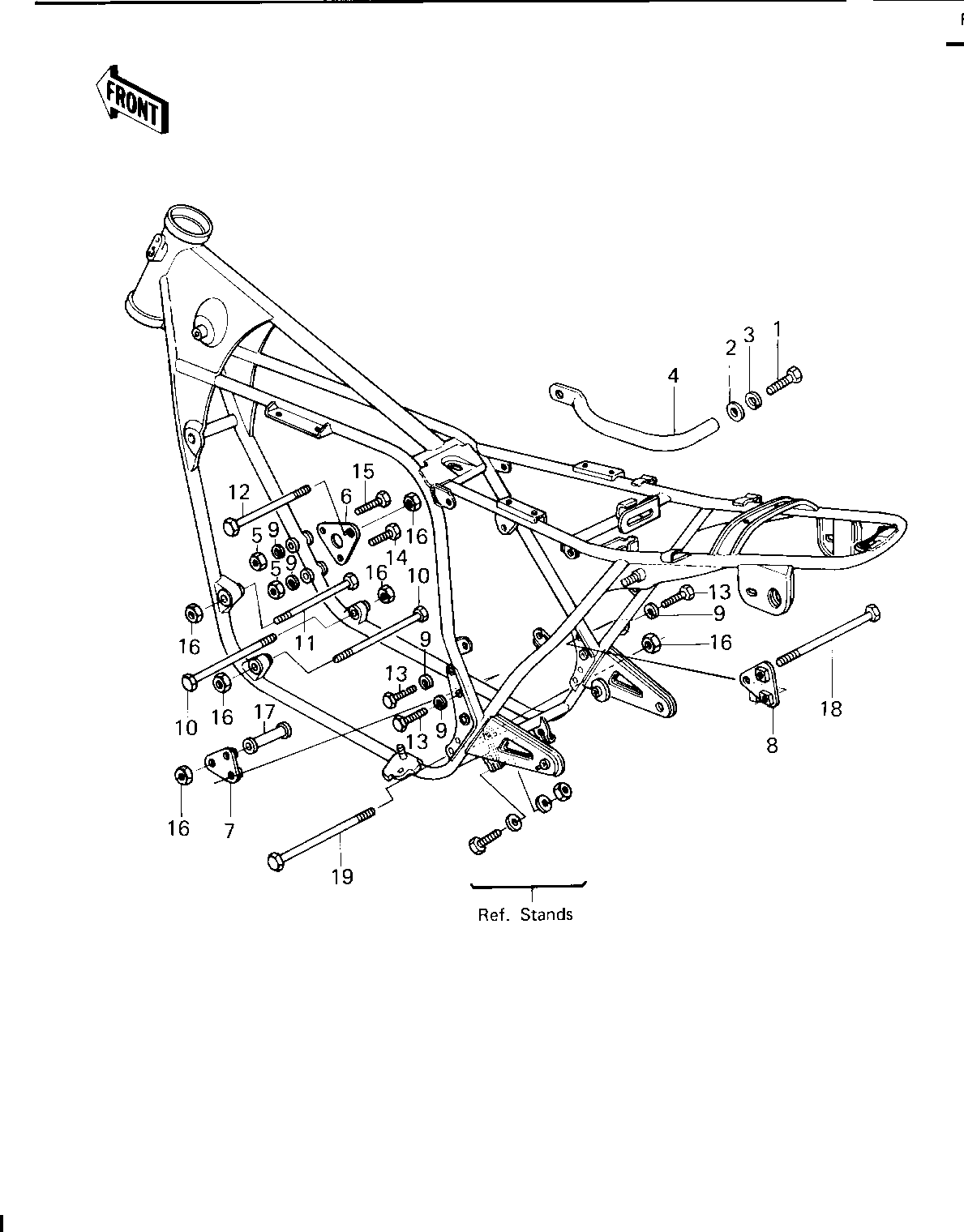

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SMALL-UPSET,8X16 | 1 | 115G0816 | 1 | ||
| WASHER PLAIN 8MM | 2 | 410B0800 | 1 | ||
| WASHER SPRING 8MM | 3 | 461F0800 | 1 | ||
| GRIP,FRAME | 4 | 32109-1002 | 1 | ||
| NUT,8MM | 5 | 311B0800 | 2 | ||
| PLATE,FRONT ENG.MOUNT | 6 | 32030-063 | 1 | ||
| PLATE,RR ENG MONT,L.H | 7 | 32030-064 | 1 | ||
| PLATE,RR ENG MONT,R.H | 8 | 32030-065 | 1 | ||
| WASHER SPRING 8MM | 9 | 461F0800 | 6 | ||
| BOLT,HEX HEAD,10X84 | 10 | 92001-1048 | 2 | ||
| BOLT,HEX HEAD,10X72 | 11 | 92001-1049 | 1 | ||
| BOLT,HEX HEAD,10X46 | 12 | 92001-1050 | 1 | ||
| BOLT,HEX HEAD,8X40 | 13 | 92001-1230 | 4 | ||
| BOLT,FLANGED,8X60 | 14 | 92001-1581 | 1 | ||
| BOLT-8X63 | 15 | 92001-1397 | 1 | ||
| NUT,LOCK,10MM | 16 | 92019-021 | 6 | ||
| COLLAR,L=54MM. | 17 | 92027-275 | 1 | ||
| BOLT,ENGINE MOUNTING | 18 | 92091-023 | 1 | ||
| BOLT,HEX HEAD,10X219 | 19 | 92091-032 | 1 |
