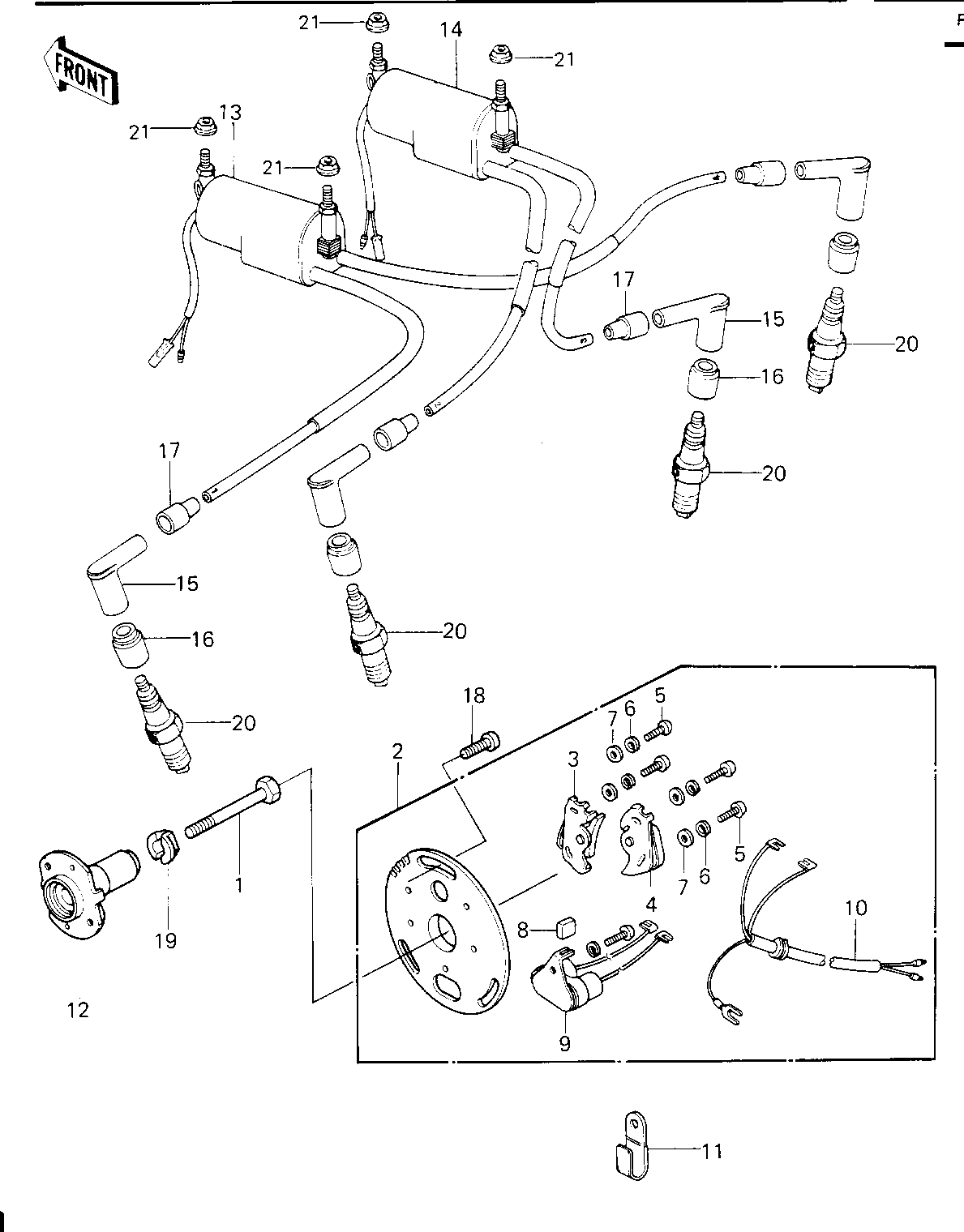

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-8X63 | 1 | 92001-1397 | 1 | ||
| BREAKER ASSY,CONTACT | 2 | 21008-1012 | 1 | ||
| BREAKER,CONTACT | 3 | 21008-028 | 1 | ||
| BREAKER,CONTACT | 4 | 21008-027 | 1 | ||
| SCREW PAN HEAD 4X6 | 5 | 220B0406 | 5 | ||
| WASHER SPRING 4MM | 6 | 461F0400 | 5 | ||
| WASHER PLAIN 4MM | 7 | 410B0400 | 4 | ||
| FELT OIL | 8 | 21019-005 | 1 | ||
| CONDENSER | 9 | 21013-037 | 1 | ||
| WIRING HARNESS,BREAKR | 10 | 26001-1081 | 1 | ||
| CLAMP,WIRING HARNESS | 11 | 21126-008 | 2 | ||
| ADVANCER,AUTMATC TMNG | 12 | 21148-011 | 1 | ||
| COIL,IGNITION,#1.4 | 13 | 21121-1001 | 1 | ||
| COIL,IGNITION,#2.3 | 14 | 21121-1002 | 1 | ||
| CAP-SPARK PLUG,RTFM20 | 15 | 21130-1007 | 4 | ||
| GROMMET-PLUG CAP,A | 16 | 21131-004 | 4 | ||
| GROMMET,SPARK PLG CAP | 17 | 21132-005 | 4 | ||
| SCREW PAN HEAD 5X12 | 18 | 220B0512 | 3 | ||
| WASHER,SPARK ADVANCER | 19 | 92022-244 | 1 | ||
| SPARK PLUG B7ES | 20 | B7ES | 4 | ||
| NUT-6MM | 21 | 92015-1078 | 4 |
