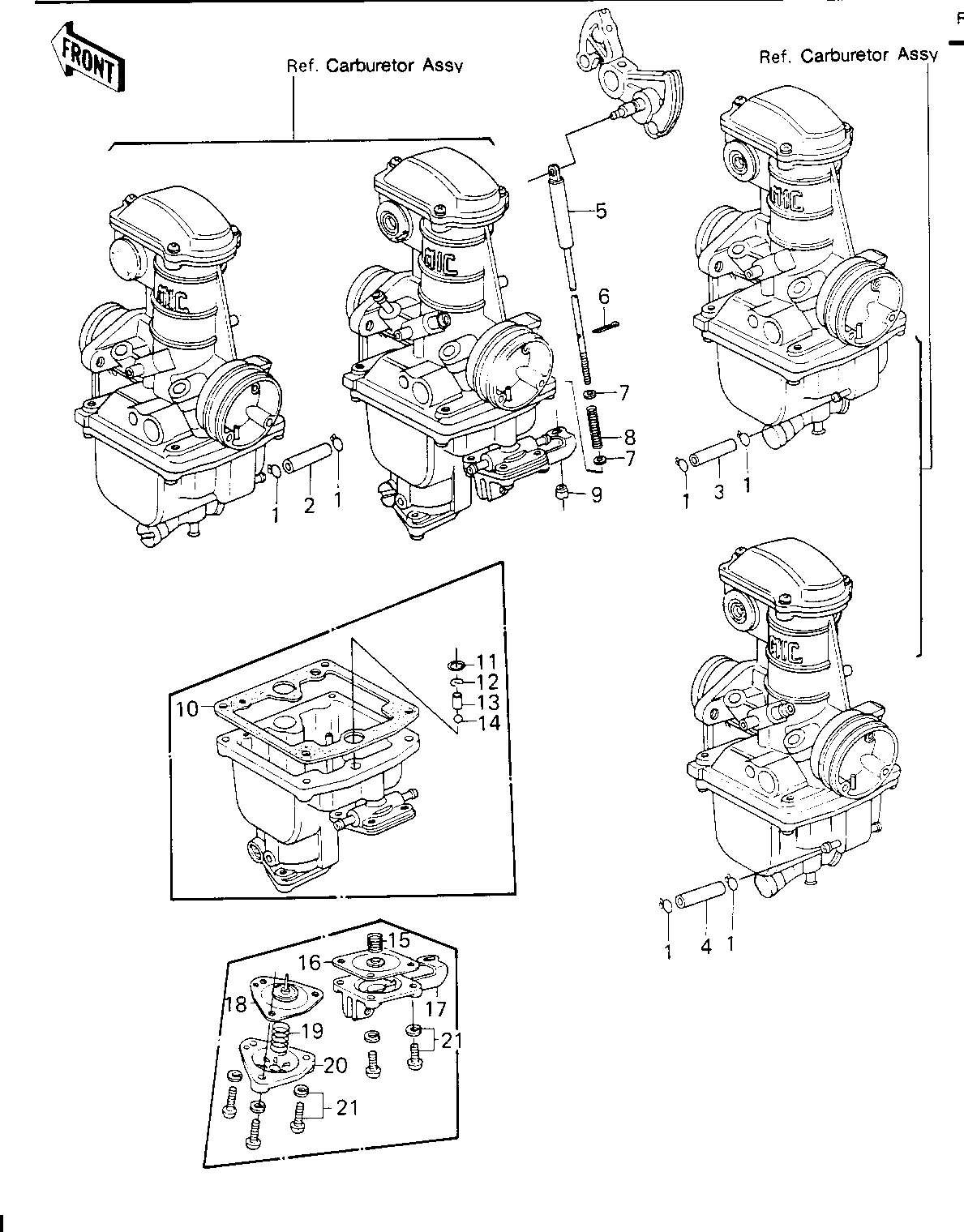

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLAMP,TUBE | 1 | 92037-1124 | 6 | ||
| TUBE,3.5X7.5X47.5 | 2 | 92059-1072 | 1 | ||
| TUBE,3.5X7.5X64.5 | 3 | 92059-1071 | 1 | ||
| TUBE,3.5X7.5X47.5 | 4 | 92059-1072 | 1 | ||
| ROD ASSY,PUMP | 5 | 46102-1007 | 1 | ||
| COTTER PIN,1.0X6 | 6 | 550D1006 | 1 | ||
| WASHER,PUMP ROD | 7 | 92022-1138 | 2 | ||
| SPRING,PUMP ROD | 8 | 92081-1138 | 1 | ||
| NUT,PUMP ROD | 9 | 92015-1075 | 1 | ||
| GASKET,FLOAT CHAMBER | 10 | 11009-1562 | 4 | ||
| "O" RING,CHECK VALVE | 11 | 92055-1059 | 4 | ||
| CLAMP,SPRING,CHECK VL | 12 | 92037-1123 | 4 | ||
| WEIGHT,PUMP,CHECK VLV | 13 | 13042-1004 | 4 | ||
| BALL,STEEL,CHECK VALV | 14 | 92140-1003 | 4 | ||
| SPRING,PUMP DIAPHRAGM | 15 | 92081-1139 | 1 | ||
| DIAPHRAGM,PUMP | 16 | 43028-1012 | 1 | ||
| COVER ASSY,PUMP | 17 | 14025-1139 | 1 | ||
| DIAPHRAGM,SENSOR | 18 | 43028-1010 | 1 | ||
| SPRING,SENSOR DIAPHRA | 19 | 92081-1137 | 1 | ||
| COVER,SENSOR | 20 | 14025-1121 | 1 | ||
| SCREW-PAN-WS-CROS | 21 | 223B0414 | 7 |
| CLAMP,TUBE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.5X7.5X47.5 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.5X7.5X64.5 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.5X7.5X47.5 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD ASSY,PUMP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COTTER PIN,1.0X6 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PUMP ROD | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,PUMP ROD | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,PUMP ROD | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FLOAT CHAMBER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| "O" RING,CHECK VALVE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,SPRING,CHECK VL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WEIGHT,PUMP,CHECK VLV | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BALL,STEEL,CHECK VALV | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,PUMP DIAPHRAGM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM,PUMP | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER ASSY,PUMP | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM,SENSOR | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SENSOR DIAPHRA | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SENSOR | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
