Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

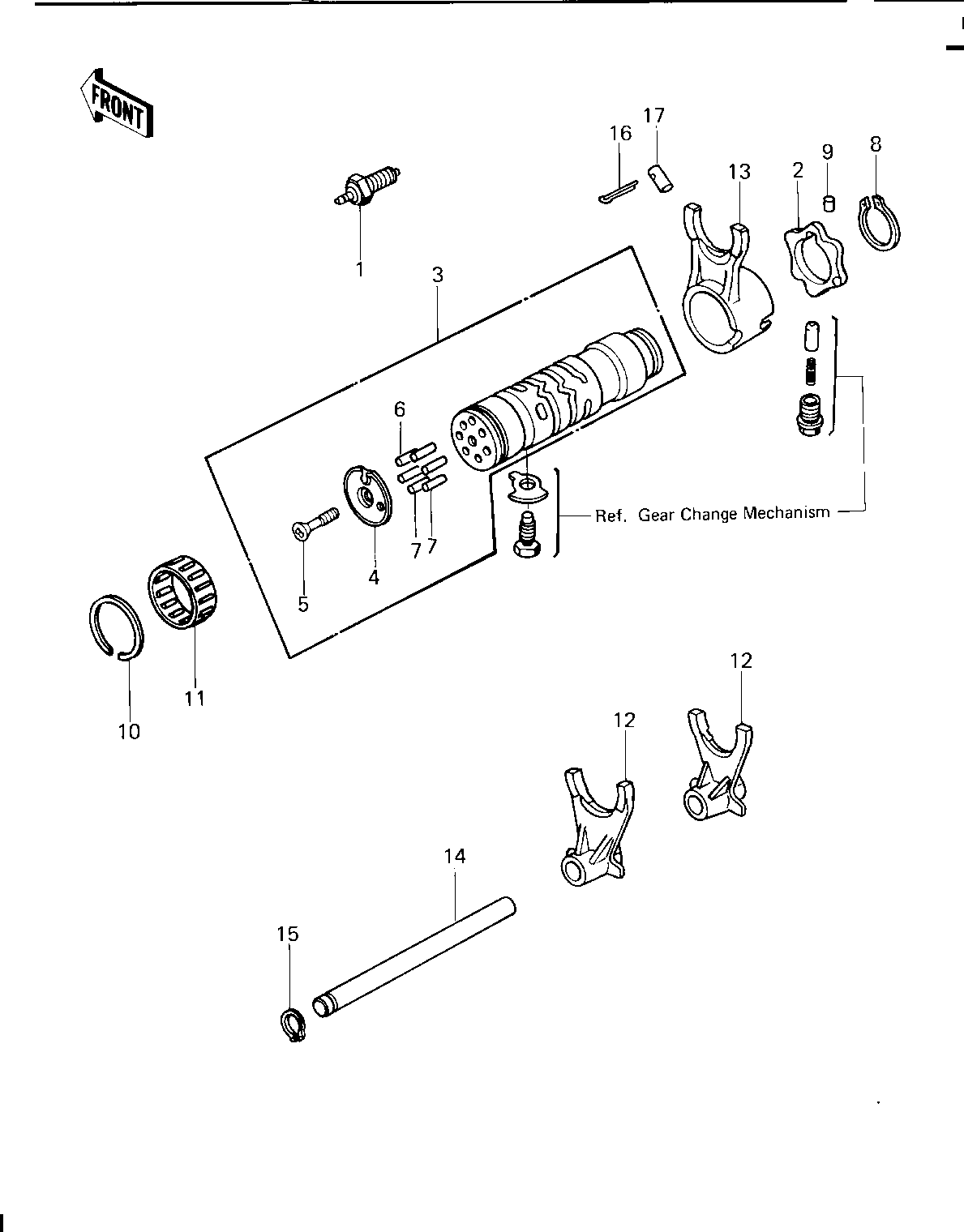

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,NEUTRAL | 1 | 13151-5002 | 1 | ||
| CAM-CHANGE DRUM | 2 | 13145-1058 | 1 | ||
| DRUM-ASSY-CHANGE | 3 | 13239-1069 | 1 | ||
| HOLDER,CHANGE DRUM PI | 4 | 13091-1104 | 1 | ||
| SCREW CNTSNK HD 6X20 | 5 | 221B0620 | 1 | ||
| PIN GEAR CHANGE DRUM | 6 | 92042-014 | 1 | ||
| PIN,GEAR CHNGE DRUM | 7 | 92042-030 | 5 | ||
| CIRCLIP,30MM | 8 | 480J3000 | 1 | ||
| PIN-DOWEL,4X6 | 9 | 610A0406 | 1 | ||
| CIRCLIP,37MM | 10 | 92033-035 | 1 | ||
| BRG,NEDL,37BTM4312 | 11 | 92046-051 | 1 | ||
| SHIFT FORK,LOW,2&3RD | 12 | 13140-1008 | 2 | ||
| SHIFT FORK,4TH & TOP | 13 | 13140-1009 | 1 | ||
| ROD-SHIFT | 14 | 49047-5003 | 1 | ||
| CIRCLIP 12MM | 15 | 480J1200 | 1 | ||
| PIN COTTER 3.0X20 | 16 | 550D3020 | 1 | ||
| DOWEL PIN,8X18 | 17 | 92042-021 | 1 |
| SWITCH,NEUTRAL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM-CHANGE DRUM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY-CHANGE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CHANGE DRUM PI | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X20 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN GEAR CHANGE DRUM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,GEAR CHNGE DRUM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,30MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,4X6 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,37MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRG,NEDL,37BTM4312 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIFT FORK,LOW,2&3RD | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHIFT FORK,4TH & TOP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-SHIFT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 12MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 3.0X20 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DOWEL PIN,8X18 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
