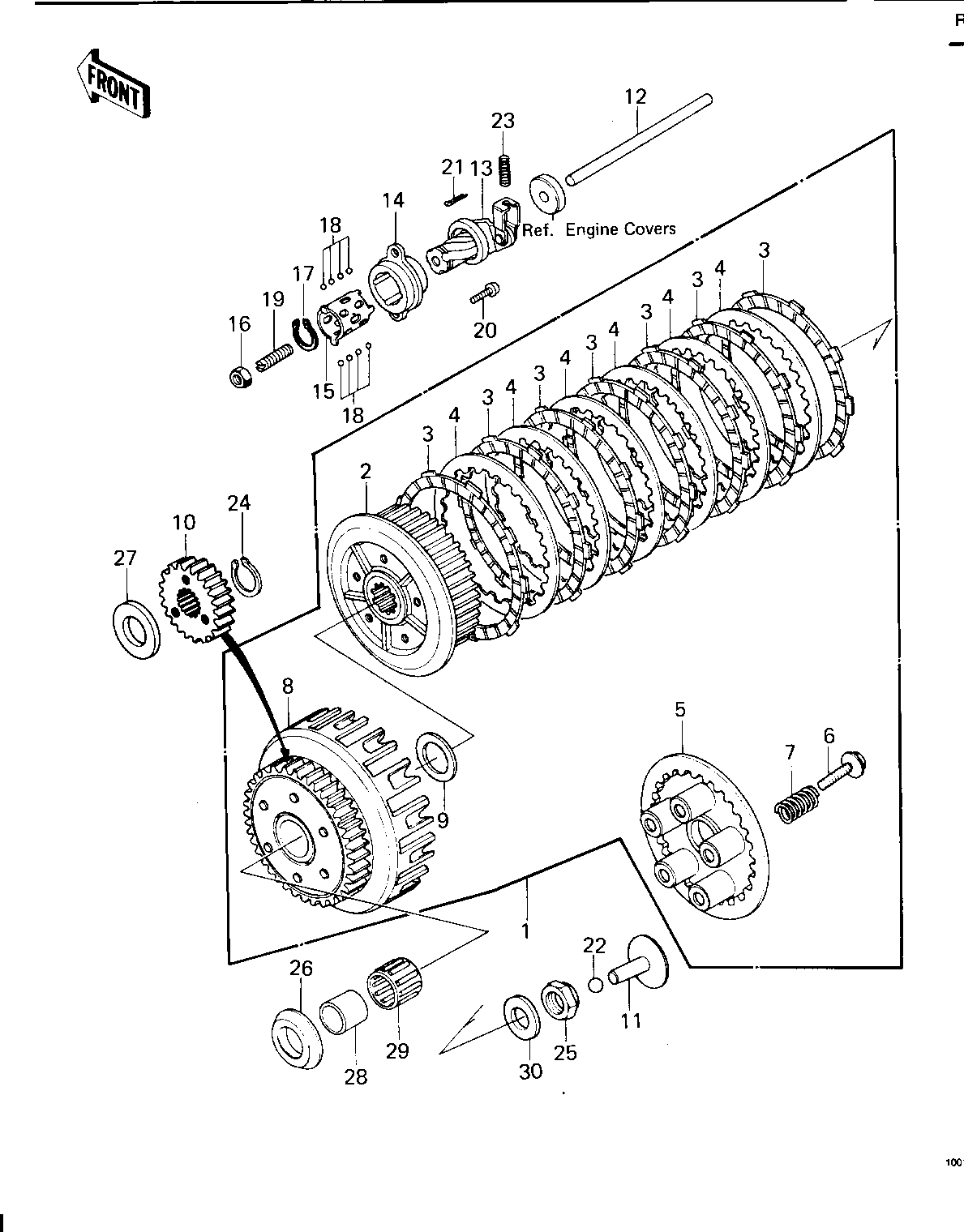

1980 LTD - CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOSS,KICK 1 13061-1008 1 E/NO 026001 ~ 029668
CLUTCH-ASSY 1 13081-1043 1 E/NO 029669 ~ 032216
HUB,CLUTCH 2 13087-043 1
PLATE,CLUTCH FRICTION 3 13088-030 7
PLATE,CLUTCH STEEL 4 13089-022 6
PLATE,CLUTCH SPRING 5 13187-006 1
BOLT,CLUTCH SPR FITT 6 92001-1066 5
SPRING,CLUTCH 7 92081-1033 5
HOUSING,CLUTCH 8 13095-1022 1 E/NO 026001 ~ 029668
HOUSING,CLUTCH 8 13095-1022 1 E/NO 029669 ~ 032216
WASHER TH 25.5X47X2.5 9 92026-022 1
GEAR,2ND SHAFT,29T 10 13121-037 1
PUSHER,CLUTCH SPRING PL 11 13116-022 1
ROD,CLUTCH PUSH 12 13116-035 1 E/NO 026001 ~ 029745
ROD,CLUTCH PUSH 12 13116-1007 1 E/NO 029746 ~ 032216
INNER,CLUTCH RELEASE 13 13102-027 1
OUTER,CLUTCH RELEASE 14 13118-011 1
RETAINER 15 13197-004 1
NUT 8MM 16 318B0800 1
CIRCLIP 15MM 17 480J1500 1
BALL,STEEL,1/8" 18 600A0400 11
SCREW,SLOTTED,8X25 19 92014-014 1
SCREW PAN HEAD 6X16 20 220B0616 2
PIN COTTER 1.6X15 21 550D1615 1
BALL STEEL 3/8' 22 600A1200 1
SPRING-CLUTCH RELEASE 23 92081-069 1
CIRCLIP, 22MM 24 480J2200 1
NUT, 20MM 25 92015-1555 1
SPACER,THRUST,T=5.5MM 26 92026-116 1
COLLAR,T=5MM 27 92027-263 1
BUSHING,CLUTCH 28 92028-178 1
BEARING,KTV323723 29 92046-028 1
WASHER 30 92125-002 1
