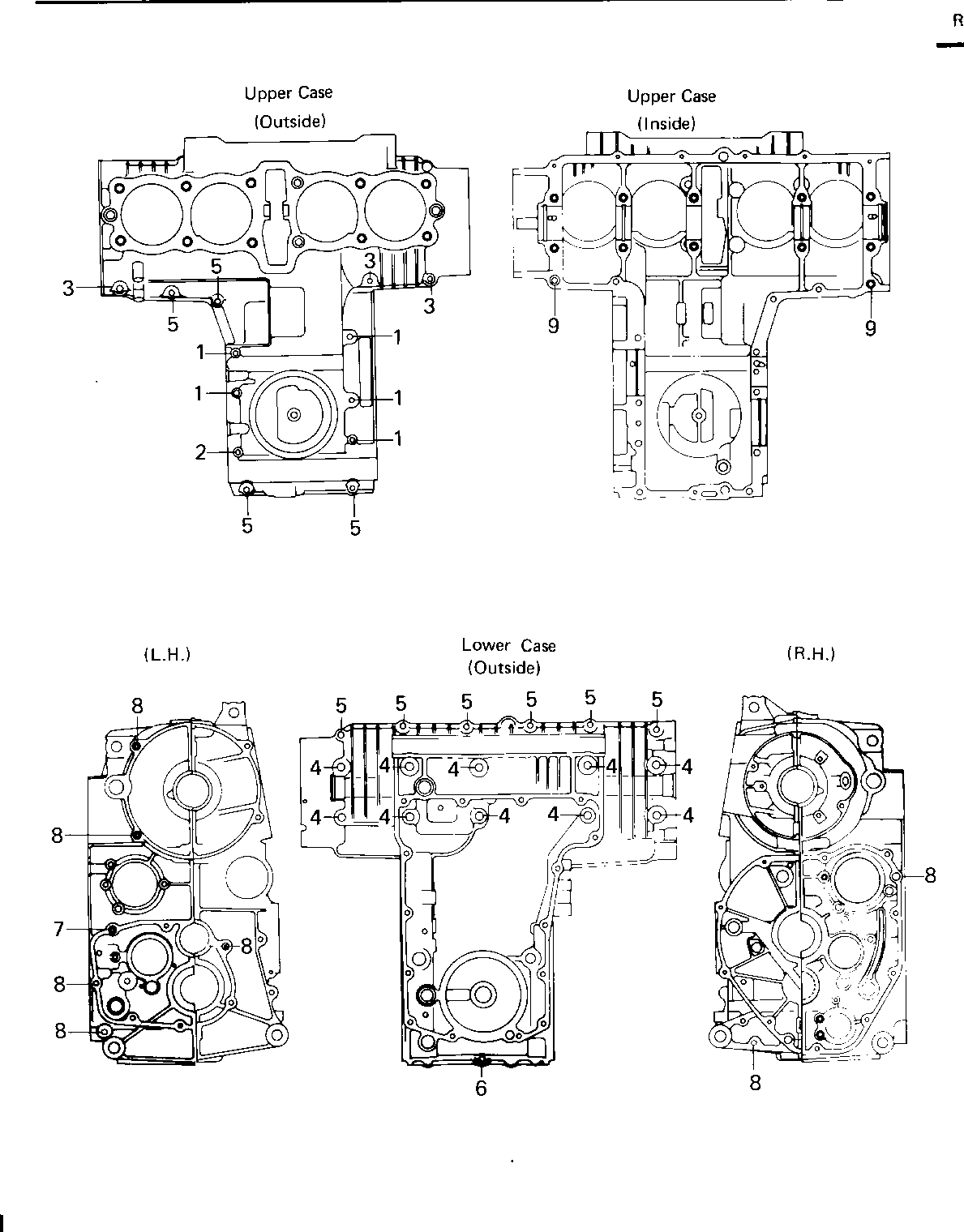

1980 LTD - CRANKCASE BOLT & STUD PATTERN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,HEX HEAD,6X99 | 1 | 92003-111 | 5 | ||
| BOLT,HEX HEAD,6X116 | 2 | 92003-113 | 1 | ||
| BOLT-FLANGED,6X48 | 3 | 92003-179 | 2 | ASTERRISK (*) MARKED PARTS ARE | |
| BOLT-FLANGED,6X48 | 3 | 92003-179 | 1 | ASTERRISK (*) MARKED PARTS ARE | |
| BOLT-FLANGED,8X95 | 4 | 130P0895 | 10 | ||
| BOLT-FLANGED,6X41 | 5 | 92003-109 | 1 | ASTERRISK (*) MARKED PARTS ARE | |
| BOLT-FLANGED,6X41 | 5 | 92003-109 | 9 | ASTERRISK (*) MARKED PARTS ARE | |
| BOLT,6X105 | 6 | 92003-194 | 1 | ||
| PIN,DOWEL,6X14 | 7 | 551A0614 | 1 | ||
| PIN-DOWEL,8X14 | 8 | 92042-007 | 7 | ||
| PIN, DOWEL, 8.2X10X14 | 9 | 92043-1037 | 2 | ASTERRISK (*) MARKED PARTS ARE |
| BOLT,HEX HEAD,6X99 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X116 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X48 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | ASTERRISK (*) MARKED PARTS ARE |
| BOLT-FLANGED,6X48 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ASTERRISK (*) MARKED PARTS ARE |
| BOLT-FLANGED,8X95 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X41 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ASTERRISK (*) MARKED PARTS ARE |
| BOLT-FLANGED,6X41 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | ASTERRISK (*) MARKED PARTS ARE |
| BOLT,6X105 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,6X14 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,8X14 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PIN, DOWEL, 8.2X10X14 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | ASTERRISK (*) MARKED PARTS ARE |
