Parts Diagrams |

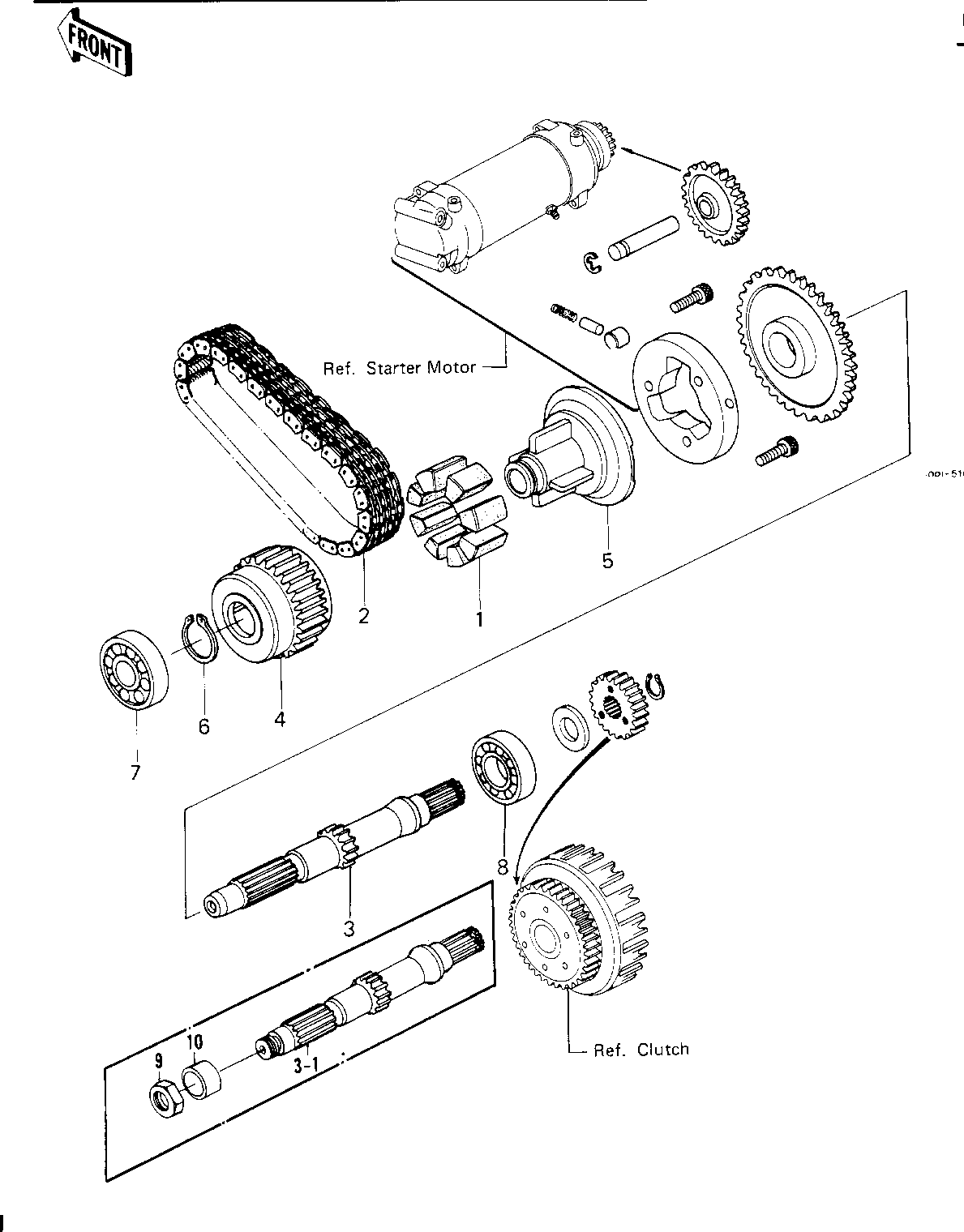

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 13096-029 | 8 | ||
| CHAIN,PRIMARY 52L | 2 | 13122-007 | 1 | ||
| SHAFT,SECONDARY | 3 | 13127-054 | 1 | E/NO 026001 ~ 029655 | |
| SHAFT,SECONDARY | 3-1 | 13127-1019 | 1 | E/NO 029656 ~ 032216 | |
| COUPLING,OUTER | 4 | 13252-001 | 1 | ||
| COUPLING,INNER | 5 | 13253-001 | 1 | ||
| CIRCLIP 28MM | 6 | 480J2800 | 1 | ||
| BEARING BALL #6304 | 7 | 601B6304 | 1 | E/NO 026001 ~ 029655 | |
| BEARING BALL #6205 | 7 | 601B6205 | 1 | E/NO 029656 ~ 032216 | |
| BEARING BALL #6305 | 8 | 601B6305 | 1 | ||
| NUT 18MM | 9 | 92015-019 | 1 | E/NO 029656 ~ 032216 | |
| BUSHING,SECONDARY | 10 | 92028-1037 | 1 | E/NO 029656 ~ 032216 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CHAIN,PRIMARY 52L | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,SECONDARY | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO 026001 ~ 029655 |
| SHAFT,SECONDARY | |
| REF # | 3-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO 029656 ~ 032216 |
| COUPLING,OUTER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING,INNER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 28MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6304 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO 026001 ~ 029655 |
| BEARING BALL #6205 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO 029656 ~ 032216 |
| BEARING BALL #6305 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 18MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO 029656 ~ 032216 |
| BUSHING,SECONDARY | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO 029656 ~ 032216 |
