Parts Diagrams |

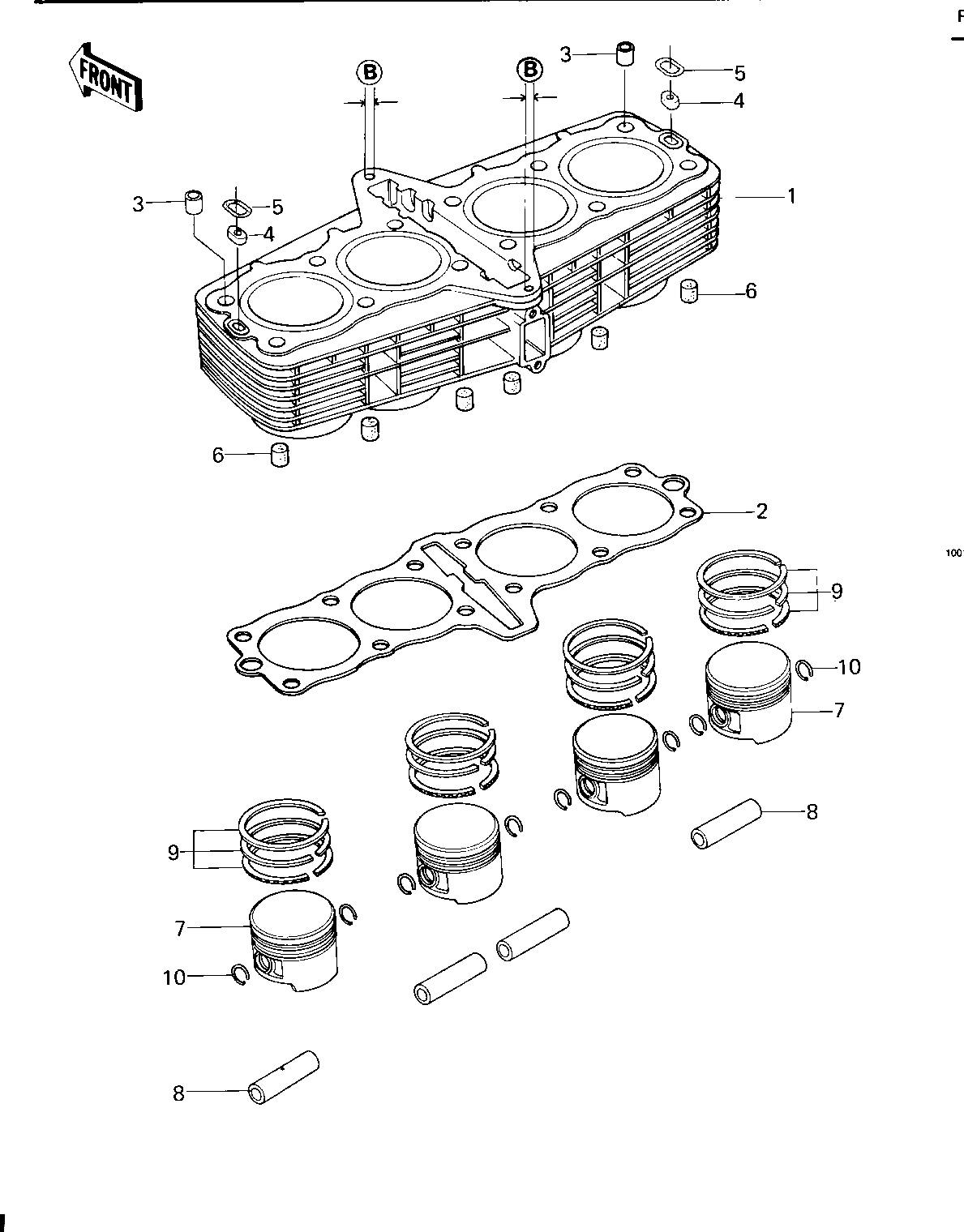

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER | 1 | 11005-1039 | 1 | E/NO 026001 ~ 029655 | |
| CYLINDER | 1 | 11005-1077 | 1 | E/NO 029656 ~ 032216 | |
| GASKET | 2 | 11060-1362 | 1 | ||
| PIN,11X14X12.3 | 3 | 92043-1266 | 2 | ||
| PIN,OIL LINE | 4 | 92043-1210 | 2 | ||
| RING-O | 5 | 92055-1147 | 2 | ||
| PLUG,DAMPER | 6 | 92066-1016 | 6 | ||
| PISTON,STD | 7 | 13001-1002 | 4 | ||
| PISTON,0.020",O.S. | 7 | 13029-077 | (4 | ||
| PISTON,0.040",O.S. | 7 | 13027-069 | (4 | ||
| PIN-PISTON | 8 | 13002-032 | 4 | ||
| RING SET,PISTON,STD | 9 | 13008-059 | 4 | ||
| RING SET,0.020",O.S. | 9 | 13025-061 | (4 | ||
| RING SET,0.040",O.S. | 9 | 13024-060 | (4 | ||
| CIRCLIP PISTON PIN | 10 | 92036-005 | 8 |
| CYLINDER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO 026001 ~ 029655 |
| CYLINDER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO 029656 ~ 032216 |
| GASKET | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,11X14X12.3 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,OIL LINE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,DAMPER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PISTON,STD | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PISTON,0.020",O.S. | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | |
| PISTON,0.040",O.S. | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING SET,PISTON,STD | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING SET,0.020",O.S. | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | |
| RING SET,0.040",O.S. | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | (4 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP PISTON PIN | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
