Parts Diagrams |

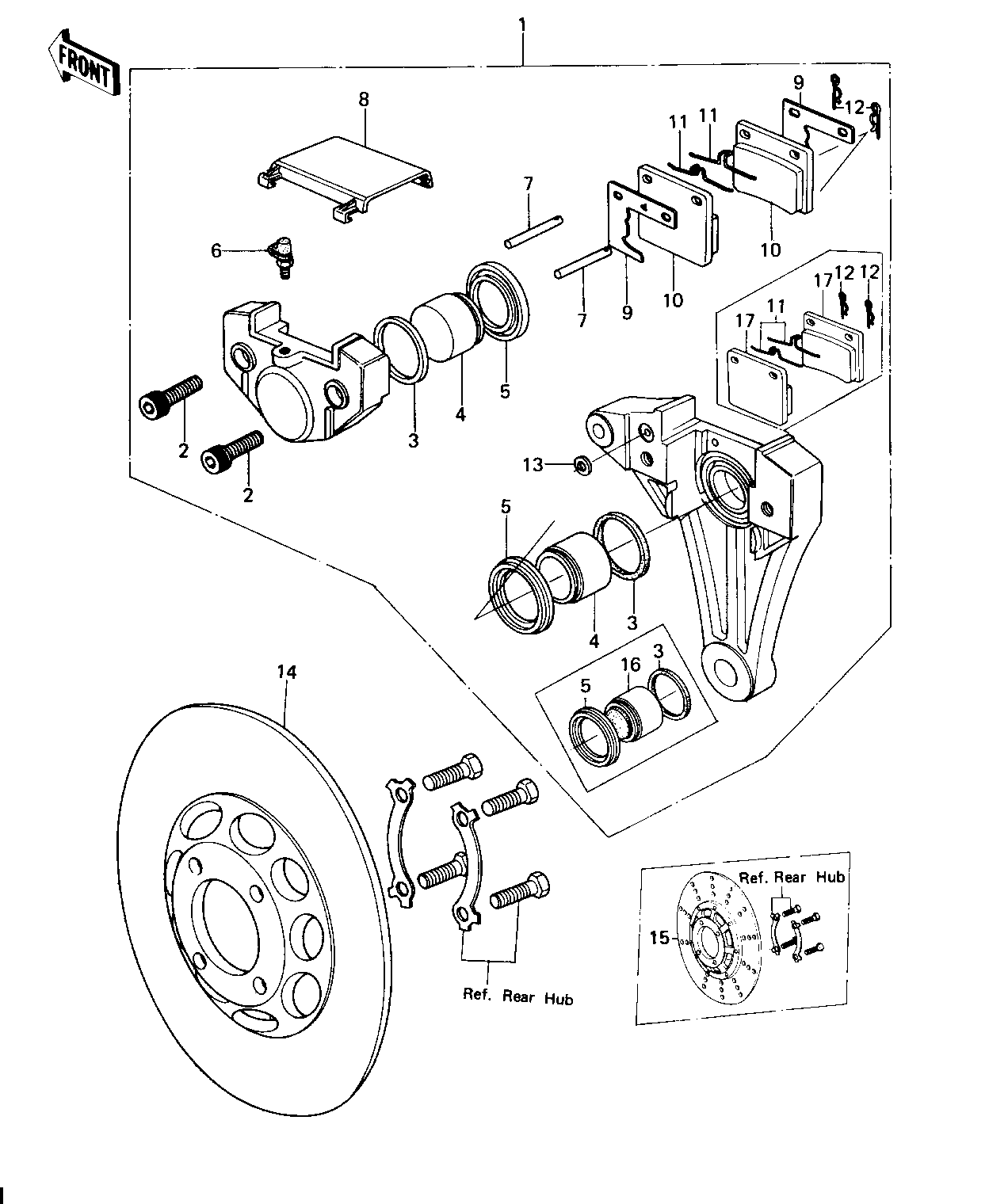

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CALIPER ASSY,REAR | 1 | 43041-1005 | 1 | KZ650-D1/D1A | |
| CALIPER ASSY,REAR | 1 | 43041-1023 | 1 | KZ650-D2 | |
| BOLT,TIE,10X45 | 2 | 92001-1071 | 1 | ||
| RING,PISTON SEAL | 3 | 43049-002 | 1 | ||
| PISTON,REAR CALIPER | 4 | 43048-008 | 1 | KZ650-D1/D1A | |
| DUST SEAL,PISTON | 5 | 43054-004 | 1 | ||
| BLEEDER SET | 6 | 43085-001 | 1 | ||
| PIN | 7 | 43045-007 | 1 | ||
| CAP | 8 | 43024-004 | 1 | ||
| SHIM | 9 | 43076-004 | 1 | ||
| PAD SET | 10 | 43050-1013 | 1 | KZ650-D1/D1A | |
| UNAVAILABLE IN PRICE BOOK | 11 | 43066-002 | 1 | ||
| CLIP | 12 | 43084-003 | 1 | ||
| RING,SEAL6.5X11.5X2.2 | 13 | 43049-1004 | 1 | ||
| PLATE,REAR DISC | 14 | 41080-008 | 1 | KZ650-D1/D1A | |
| DISC PLATE,REAR | 15 | 41080-1020 | 1 | KZ650-D2 | |
| PISTON,BRAKE | 16 | 43020-1011 | 1 | KZ650-D2 | |
| PAD SET | 17 | 43082-1002 | 1 | KZ650-D2 |
| CALIPER ASSY,REAR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D1/D1A |
| CALIPER ASSY,REAR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| BOLT,TIE,10X45 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,PISTON SEAL | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,REAR CALIPER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D1/D1A |
| DUST SEAL,PISTON | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BLEEDER SET | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD SET | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D1/D1A |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLIP | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,SEAL6.5X11.5X2.2 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,REAR DISC | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D1/D1A |
| DISC PLATE,REAR | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| PISTON,BRAKE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
| PAD SET | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ650-D2 |
