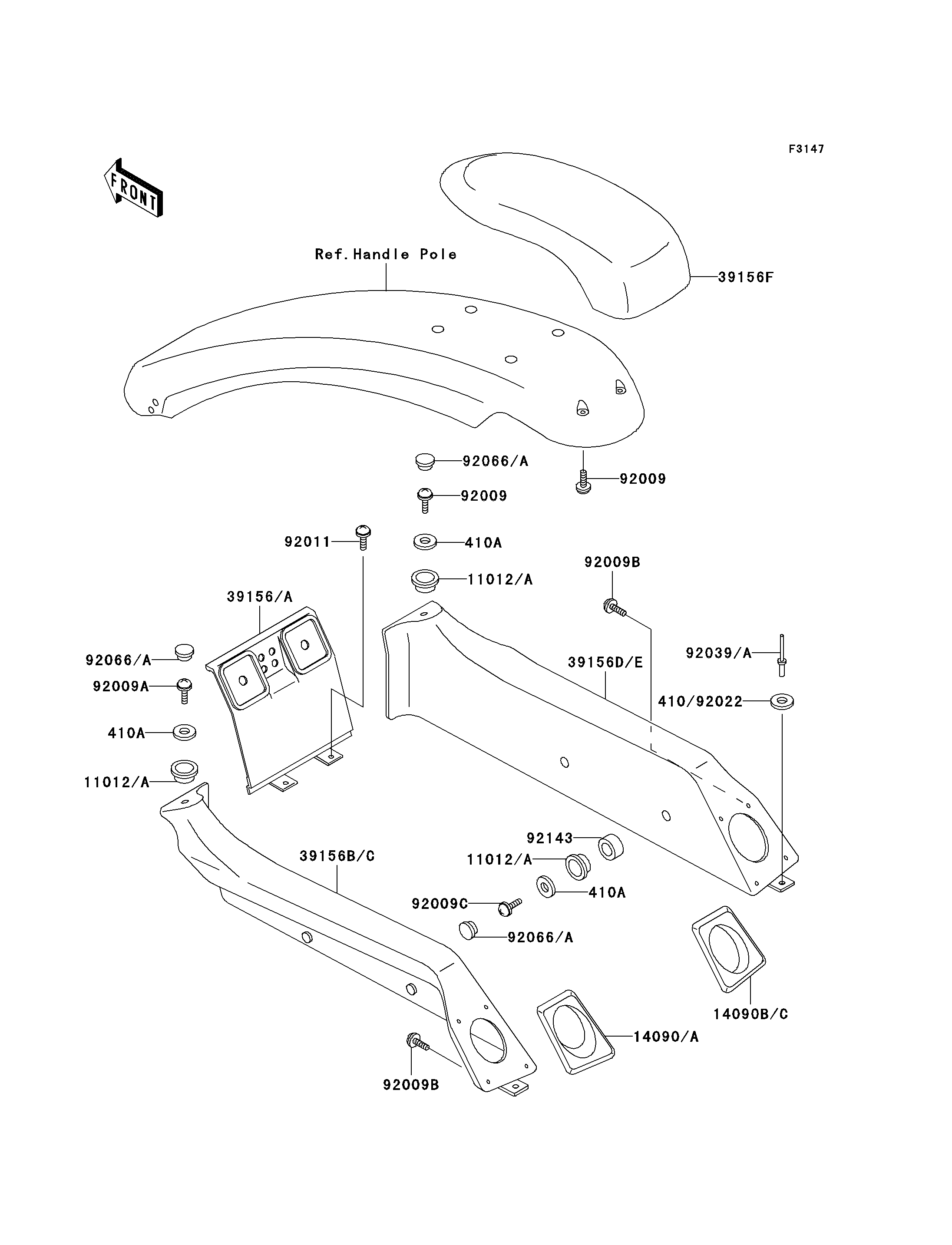

1999 SXI PRO - Pads

DOWNLOAD PDF
SELECT A NEW PART
410A
410A
410A
11012A
11012A
11012A
14090A
14090C
39156
39156B
39156D
39156F
92009
92009
92009A
92009B
92009B
92009C
92011
92022
92039A
92066A
92066A
92066A
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,6MM 410A 410S0600 6
CAP,F,BLACK 11012A 11012-3760-6Z 6
COVER,DECK PAD,LH,F.BLACK 14090A 14090-3716-6Z 1
COVER,DECK PAD,RH,F.BLACK 14090C 14090-3717-6Z 1
PAD,DECK,CNT,BLACK 39156 39156-3752-MA 1
PAD,DECK,LH,BLACK 39156B 39156-3761-MA 1
PAD,DECK,RH,BLACK 39156D 39156-3762-MA 1
PAD,HANDLE POLE,UPP,BLACK 39156F 39156-3787-MA 1
SCREW,TAPPING,5X20 92009 92009-3716 7
SCREW,TAPPING,5X30 92009A 92009-3794 1
SCREW,TAPPING,3X10 92009B 92009-3802 8
SCREW,TAPPING,5X25 92009C 92009-3803 4
SCREW,TAPPING 92011 92011-561 2
WASHER,5X16X1.5 92022 92022-3041 2
RIVET 92039A 92039-3758 2
PLUG,F.BLACK 92066A 92066-3738-6Z 6
COLLAR,6X10X5 92143 92143-3737 4
