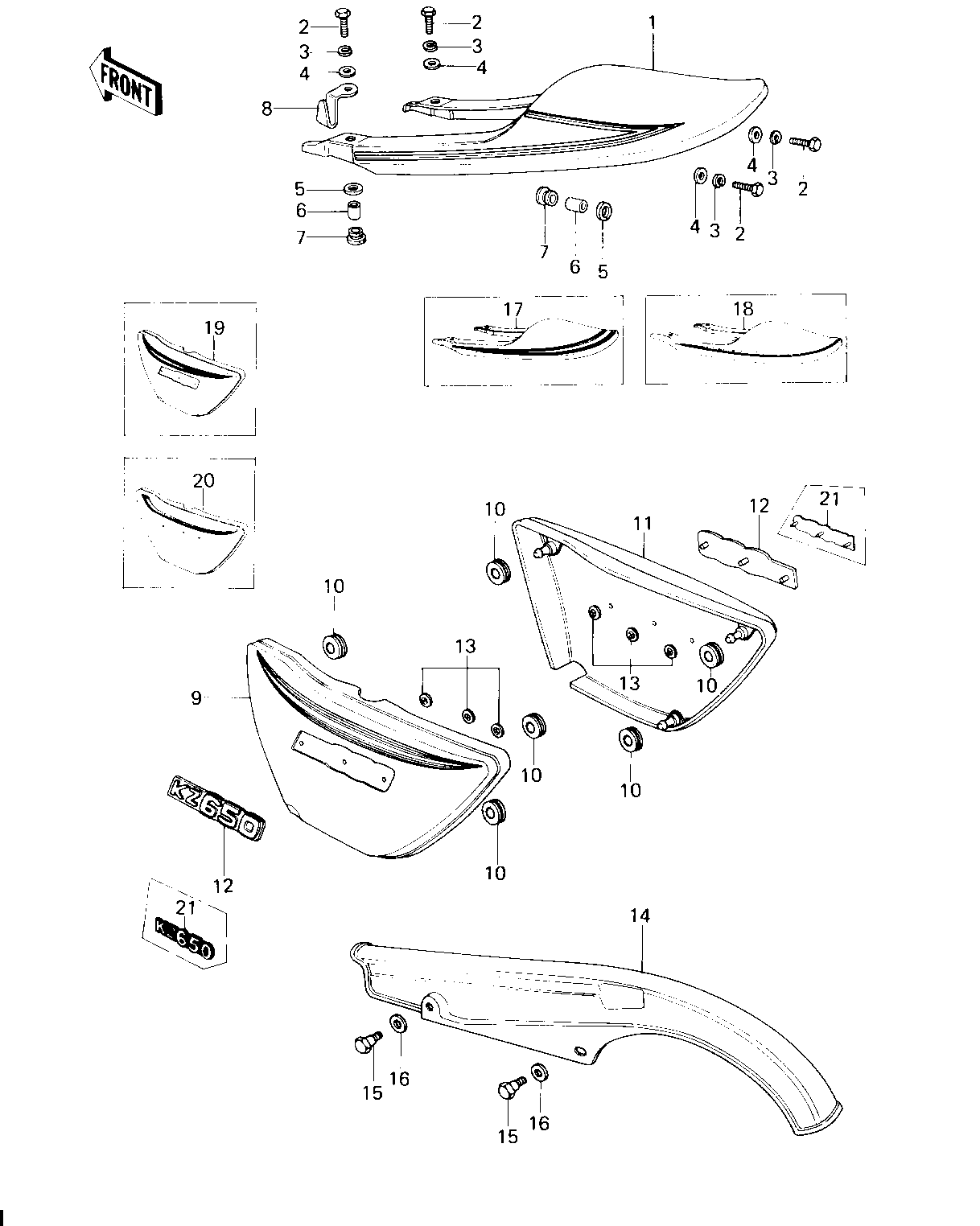

1978 Custom - SIDE COVERS/SEAT COVER/CHAIN COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,REAR SEAT,BLUE | 1 | 53043-016-7M | 1 | KZ650-C1 | |
| COVER,REAR SEAT,SILV | 1 | 53043-016-7N | 1 | KZ650-C1 | |
| BOLT-UPSET | 2 | 112G0625 | 1 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 1 | ||
| WASHER,PLAIN,7MM | 4 | 92022-228 | 1 | ||
| DAMPER RUBBER | 5 | 92075-175 | 1 | ||
| COLLAR | 6 | 92027-241 | 1 | ||
| RUBBER,FENDER COVER | 7 | 92075-174 | 1 | ||
| BRACKET,HELMET HOLDE | 8 | 32122-057 | 1 | ||
| COVER,SIDE,L.H,R.BLU | 9 | 36001-5033-7M | 1 | KZ650-C1 | |
| COVER,SIDE,L.H,M.SLV | 9 | 36001-5035-7N | 1 | KZ650-C1 | |
| GROMMET | 10 | 92071-056 | 1 | ||
| COVER,SIDE,R.H,R.BLU | 11 | 36001-5034-7M | 1 | KZ650-C1 | |
| COVER,SIDE,R.H,M.SLV | 11 | 36001-5036-7N | 1 | KZ650-C1 | |
| COVER,SIDE,R.H,S.SLV | 11 | 36001-5038-7W | 1 | KZ650-C2 | |
| COVER,SIDE,R.H,D.BLU | 11 | 36001-1035-7Z | 1 | KZ650-C3 | |
| EMBLEM,SIDE COVER | 12 | 56018-256 | 1 | KZ650-C1/C2 | |
| NUT,LOCK,3MM | 13 | 92018-005 | 1 | ||
| CASE-CHAIN | 14 | 36014-068 | 1 | ||
| BOLT,HEAX HEAD,6X14 | 15 | 92001-115 | 1 | ||
| WASHER,8.5X20X1.6 | 16 | 92022-1561 | 1 | ||
| COVER,REAR SEAT,SILV | 17 | 53043-016-7W | 1 | KZ650-C2 | |
| COVER,SEAT,L.D.BLUE | 18 | 14025-5007-7Z | 1 | KZ650-C3 | |
| COVER,SIDE,L.H,S.SLV | 19 | 36001-5037-7W | 1 | KZ650-C2 | |
| COVER,SIDE,L.H.D.BLU | 20 | 36001-1034-7Z | 1 | KZ650-C3 | |
| MARK,SIDE COVER | 21 | 56018-1063 | 1 | KZ650-C3 |
