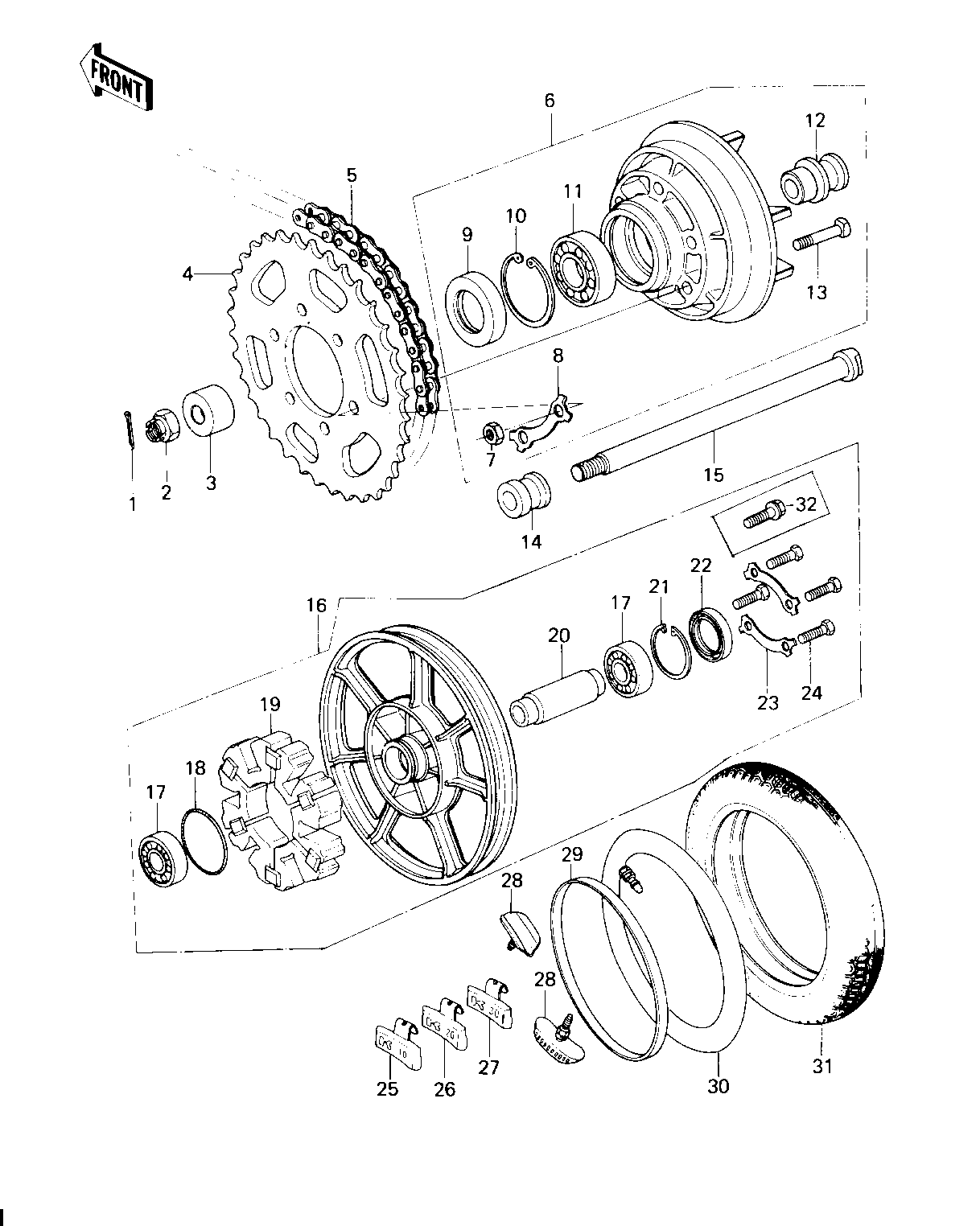

1978 Custom - REAR WHEEL/TIRE/HUB/CHAIN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-COTTER,4.0X35 | 1 | 550D4035 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 92015055 | 1 | ||
| COLLAR,REAR AXLE,22M | 3 | 92027-1023 | 1 | ||
| REAR SPROCKET,42T | 4 | 42041-1003 | 1 | ||
| CHAIN-EX50MV-0X102L | 5 | 92057-1232 | 1 | ||
| COUPLING ASSY,REAR H | 6 | 42033-1003 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 7 | 42045005 | 1 | ||
| WASHER LOCK | 8 | 92088-007 | 1 | ||
| OIL SEAL | 9 | 92050-027 | 1 | ||
| CIRCLIP,62M/M | 10 | 92033-1044 | 1 | ||
| BALL BEARING,#6206 | 11 | 601B6206 | 1 | ||
| SLEEVE,REAR HUB COUP | 12 | 42036-1005 | 1 | ||
| BOLT-REAR SPROCKET | 13 | 92003-087 | 1 | ||
| COLLAR,REAR AXLE,33M | 14 | 92027-1022 | 1 | F/NO. 000001-023100 | |
| COLLAR 39M/M,RR AXLE | 14 | 92027-1174 | 1 | F/NO. 023101 | |
| AXLE,RR | 15 | 41068-1086 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 16 | 41073 -1005 | 1 | KZ650-C1 | |
| SOLID WHEEL ASSY,REA | 16 | 41073-1036 | 1 | F/NO. 010001-021725 | |
| SOLID WHEEL ASSY,REA | 16 | 41073-1036 | 1 | F/NO. 021728-023100 | |
| SOLID WHEEL ASSY,REA | 16 | 41073-1042 | 1 | F/NO. 023101 | |
| BRG,BALL,#6205ZZC3 | 17 | 601B6205ZZ | 1 | USE FOR 41073-1006/1018/1036 | |
| BEARING BALL #6205Z | 17 | 601B6205Z | 1 | USE FOR 41073-1042 | |
| "0" RING,65MM | 18 | 671B2565 | 1 | ||
| SHOCK DAMPER,REAR HU | 19 | 42014-033 | 1 | ||
| COLLAR,REAR HUB BRG | 20 | 92027-1021 | 1 | ||
| RING,SNAP,56.2M/M | 21 | 92033-1043 | 1 | ||
| OIL SEAL WTC35527 | 22 | 92052-006 | 1 | ||
| WASHER,LOCK | 23 | 92088-023 | 1 | USE FOR 41073-1006/1018/1036 | |
| BOLT | 24 | 92001-160 | 1 | USE FOR 41073-1006/1018/1036 | |
| WEIGHT,BALANCE,10GR | 25 | 41075-1001 | 1 | USE FOR 41073-1006/1018 | |
| BALANCER-WHEEL,10G | 25 | 41075-1011 | 1 | USE FOR 41073-1036/1042 | |
| WEIGHT,BALANCE,20GR | 26 | 41075-1002 | 1 | USE FOR 41073-1006/1018 | |
| BALANCER-WHEEL,20G | 26 | 41075-1012 | 1 | USE FOR 41073-1036/1042 | |
| WEIGHT,BALANCE,30GR | 27 | 41075-1003 | 1 | USE FOR 41073-1006/1018 | |
| BALANCER-WHEEL,30G | 27 | 41075-1013 | 1 | USE FOR 41073-1036/1042 | |
| STOPPER,RIM,2.15 | 28 | 41024-1001 | 1 | ||
| BAND,RIM,4.00/5.10-1 | 29 | 41023-1006 | 1 | ||
| TUBE 350/375/410-18 | 30 | 41022-031 | 1 | ||
| TIRE 400H-18 K87 | 31 | 41021-039 | 1 | ||
| BOLT,HEX HEAD,10X30 | 32 | 92001-1173 | 1 | USE FOR 41073-1042 |
