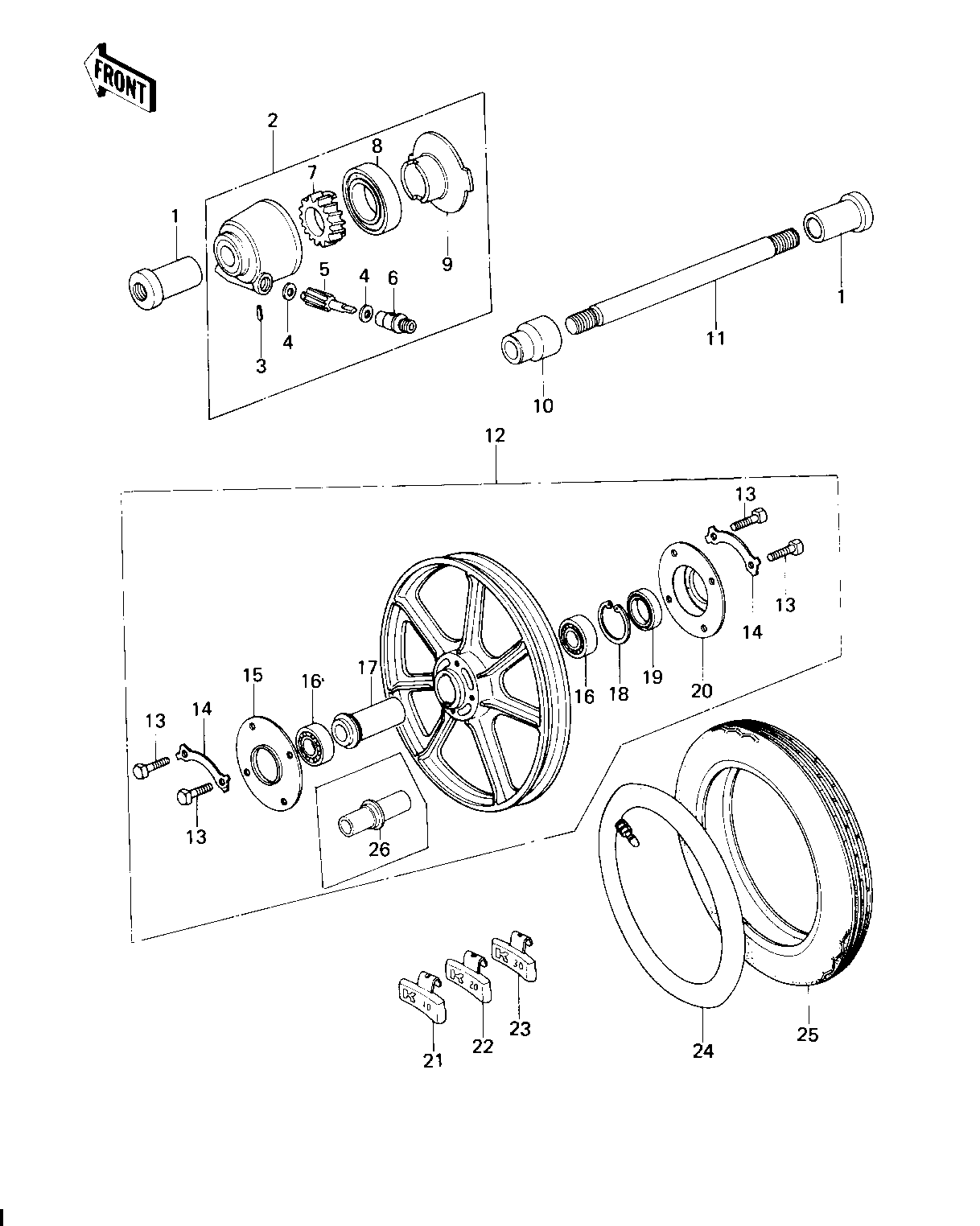

1978 Custom - FRONT WHEEL/TIRE/HUB

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COLLAR,FRONT AXLE 1 41069-033 1
GEAR BOX ASSY 2 41078-008 1
PIN,SPRING 3 41082-001 1
WASHER THRST SPD PIN 4 41063-001 1
PINION,SPEEDOMETER 5 41060-017 1
BUSH,SPEEDMETER CABL 6 41062-005 1
GEAR,SPEEDOMETER 7 41059-026 1
OIL SEAL,BJN30427-C3 8 92049-1057 1
RECEIVER,GEAR 9 41064-013 1
COLLAR,FRONT AXLE 10 41069-032 1
AXLE,FRONT 11 41068-049 1
SOLID WHEEL ASSY,FRN 12 41073-5104 1 KZ650-C1
SOLID WHEEL ASSY,FRT 12 41073-1068 1 F/NO. 010001~021725
SOLID WHEEL ASSY,FRT 12 41073-1068 1 F/NO. 021726~
BOLT 13 92001-158 1
WASHER,LOCK 14 92088-023 1
DUST COVER 15 41042-014 1
BRG,BALL,#6203ZZC3 16 601B6203ZZ 1 USE FOR 41073-1004/-1017
BALL BEARING,#6203ZC 16 601B6203Z 1 USE FOR 41073-1027
COLLAR,FR HUB BEARIN 17 92027-1043 1 USE FOR 41073-1004/-1017
RING, SNAP,43.5M/M 18 92033-1040 1
OIL SEAL 19 654A254008 1
DUST COVER 20 41042-015 1
WEIGHT,BALANCE,10GR 21 41075-1001 1 USE FOR 41073-1004/-1017
BALANCER-WHEEL,10G 21 41075-1011 1 USE FOR 41073-1027
WEIGHT,BALANCE,20GR 22 41075-1002 1 USE FOR 41073-1004/-1017
BALANCER-WHEEL,20G 22 41075-1012 1 USE FOR 41073-1027
WEIGHT,BALANCE,30GR 23 41075-1003 1 USE FOR 41073-1004/-1017
BALANCER-WHEEL,30G 23 41075-1013 1 USE FOR 41073-1027
*** N.L.A.*** (Canada) 24 41022-030 1
TIRE 325H-19 F6B 25 41021-038 1
COLLAR,BRG 26 41039-028 1 USE FOR 41073-1027
