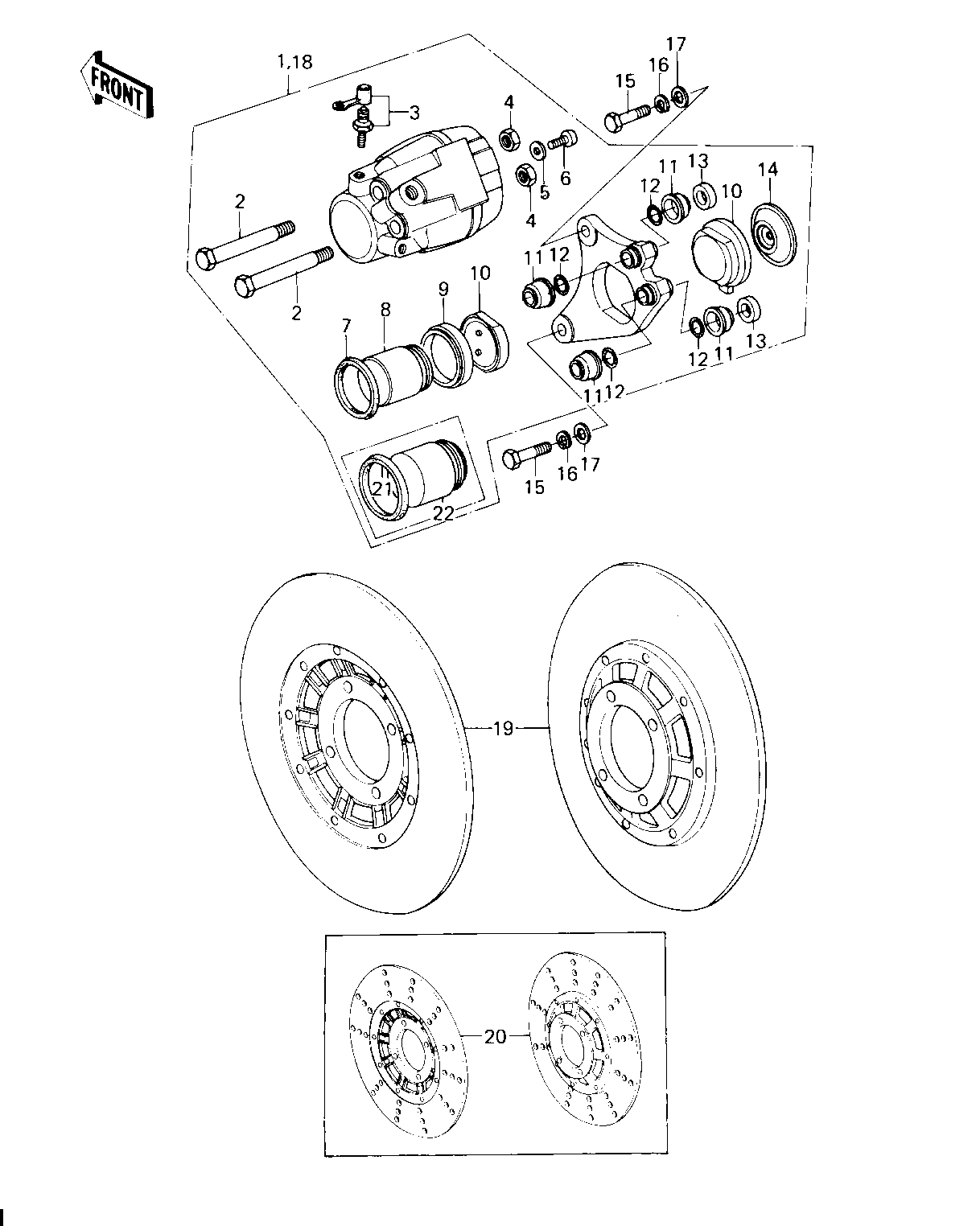

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CALIPER ASSY,FRONT,2 | 1 | 43041-032 | 1 | F/NO. 000001~023100 | |
| CALIPER ASSY,L.H, | 1 | 43041-1024 | 1 | F/NO. 023101~ | |
| BOLT | 2 | 43045-006 | 1 | ||
| BLEEDER SET | 3 | 43085-001 | 1 | ||
| NUT 10MM | 4 | 315B1000 | 1 | ||
| WASHER SPRING 6MM | 5 | 461F0600 | 1 | ||
| SCREW PAN HEAD 6X12 | 6 | 220B0612 | 1 | ||
| RING-PISTON | 7 | 43049-001 | 1 | USE FOR 43041-032/-033 | |
| PISTON | 8 | 43048-1002 | 1 | USE FOR 43041-032/-033 | |
| DUST SEALD,RUBBER | 9 | 43054-003 | 1 | ||
| PAD SET,(FRONT) | 10 | 43050-5001 | 1 | USE FOR 43041-032/-033 | |
| PAD SET | 10 | 43082-1001 | 1 | USE FOR 43041-1024/-1025 | |
| DUST SHILD,SHAFT | 11 | 43052-005 | 1 | ||
| "0" RING | 12 | 43053-006 | 1 | ||
| PLUG | 13 | 43088-002 | 1 | ||
| SPACER | 14 | 43040-004 | 1 | ||
| BOLT | 15 | 92007-032 | 1 | ||
| WASHER SPRING 10MM | 16 | 461F1000 | 1 | ||
| WASHER PLAIN 10MM | 17 | 410B1000 | 1 | ||
| CALIPER ASSY,FRONT,R | 18 | 43041-033 | 1 | F/NO. 000001~023100 | |
| CALIPER ASSY,R.H | 18 | 43041-1025 | 1 | F/NO. 023101~ | |
| DISC COMPLETE,FRONT | 19 | 41080-1002 | 1 | F/NO. 000001~023100 | |
| DISC PLATE,FRONT | 20 | 41080-1019 | 1 | F/NO. 023101~ | |
| RING,PISTON SEAL | 21 | 43049-002 | 1 | USE FOR 43041-1024/-1025 | |
| PISTON,BRAKE,42M/M | 22 | 43020-1012 | 1 | USE FOR 43041-1024/-1025 |
