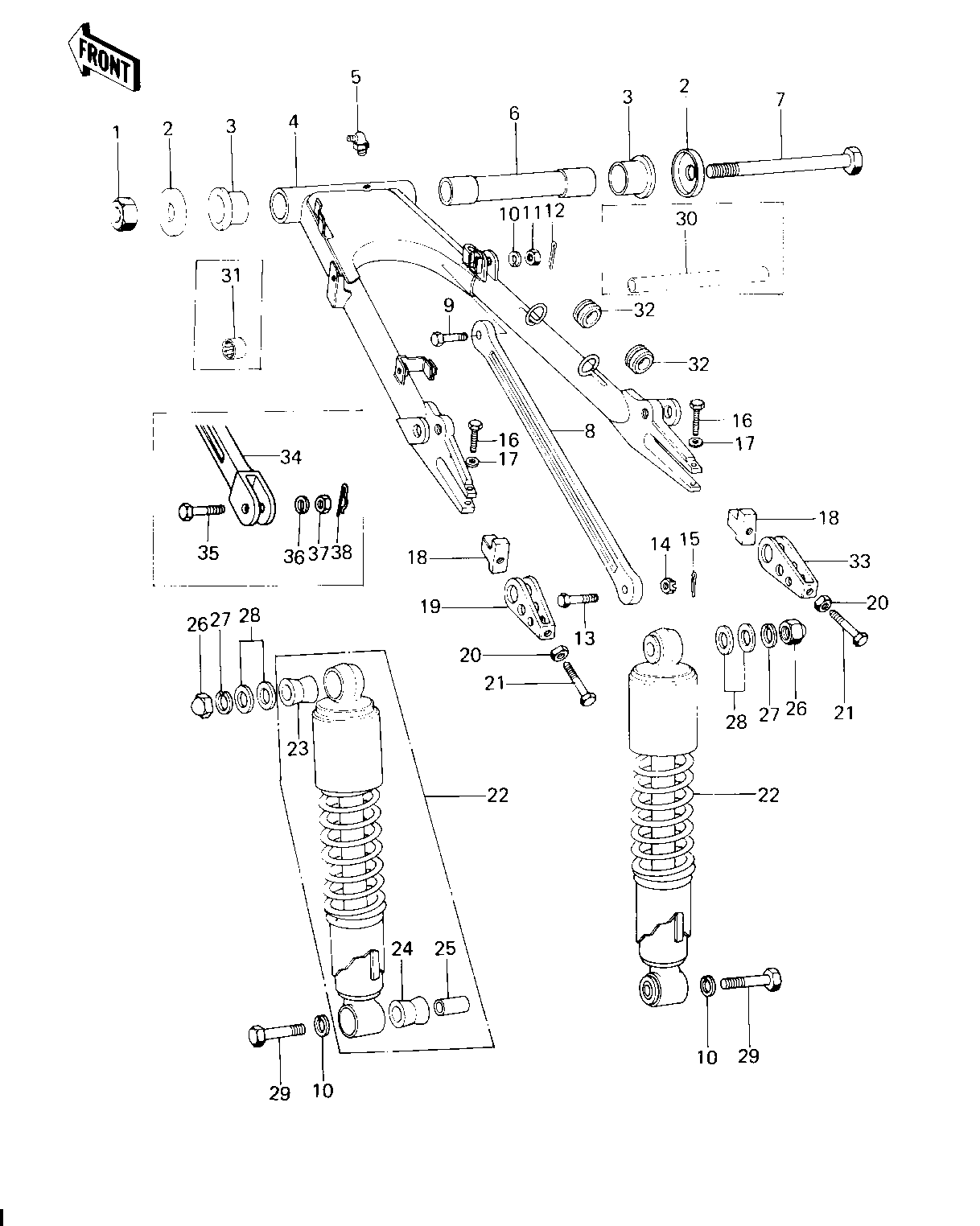

1978 Custom - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-SELF LOCKING 1 92019-012 1
CAP,SWING ARM 2 33035-008 1 KZ660-C1
CAP,SWING ARM 2 33035-009 1 KZ650-C2~
BUSHING-SWING ARM 3 33033-009 1 KZ650-C1
SWING ARM 4 33001-1007 1 KZ650-C1
ARM-COMP-SWING 4 33001-1080 1 KZ650-C2~
GREASE NIPPLE 5 92005-002 1
SLEEVE,SWING ARM 6 33034-024 1 KZ650-C1
SHAFT,SWING ARM 7 33032-050 1
TORQUE LINK 8 43007-047 1 F/NO.000001~023100
BOLT,HEX HEAD,10X39 9 92003-218 1
WASHER SPRING 10MM 10 461F1000 1
NUT,10MM 11 314B1000 1
PIN,SNAP 12 554A0800 1
BOLT,RR TORQUE LINK 13 92003-197 1 F/NO000001~023100
NUT,12MM 14 42045-021 1 F/NO000001~023100
PIN COTTER 3.0X25 15 550D3025 1 F/NO000001~023100
BOLT,FLANGED,8X35 16 92001-1577 1
WASHER SPRING 8MM 17 461F0800 1
STOPPER,CHAIN ADJUST 18 33044-002 1
ADJUSTER,CHAIN 19 33040-056 1
NUT 8MM 20 312B0800 1
BOLT,8X50 21 92001-1399 1
SHOCK ABSBR RR 22 45014-117 1
BUSHING,SHCK ABS RUB 23 45017-015 1
BUSHING,SHOCK ABSORB 24 45016-008 1
BUSHING, SHCK ABS RU 25 45017-012 1
NUT 12MM 26 92020-014 1
WASHER SPRING 12MM 27 461F1200 1
WASHER PLAIN 12MM 28 410B1200 1
BOLT HEX HEAD 10X35 29 113N1035 1
SLEEVE,SWING ARM 30 42036-1012 1 KZ650-C2~
BEARING-NEEDLE,HK221 31 92046-1115 1 KZ650-C2~
DAMPER RUBBER 32 43064-007 1
ADJUSTER,CHAIN 33 33040-1003 1 F/NO.000001~023100
ADJUSTER,CHAIN 33 33040-056 1 F/NO023101~
TORQUE LINK,REAR HUB 34 43007-049 1 F/NO.023101~
BOLT,10X47 35 92001-1145 1 F/NO.023101~
WASHER SPRING 10MM 36 461F1000 1 F/NO.023101~
NUT,10MM 37 314B1000 1 F/NO.023101~
PIN,SNAP 38 554A0800 1 F/NO.023101~
