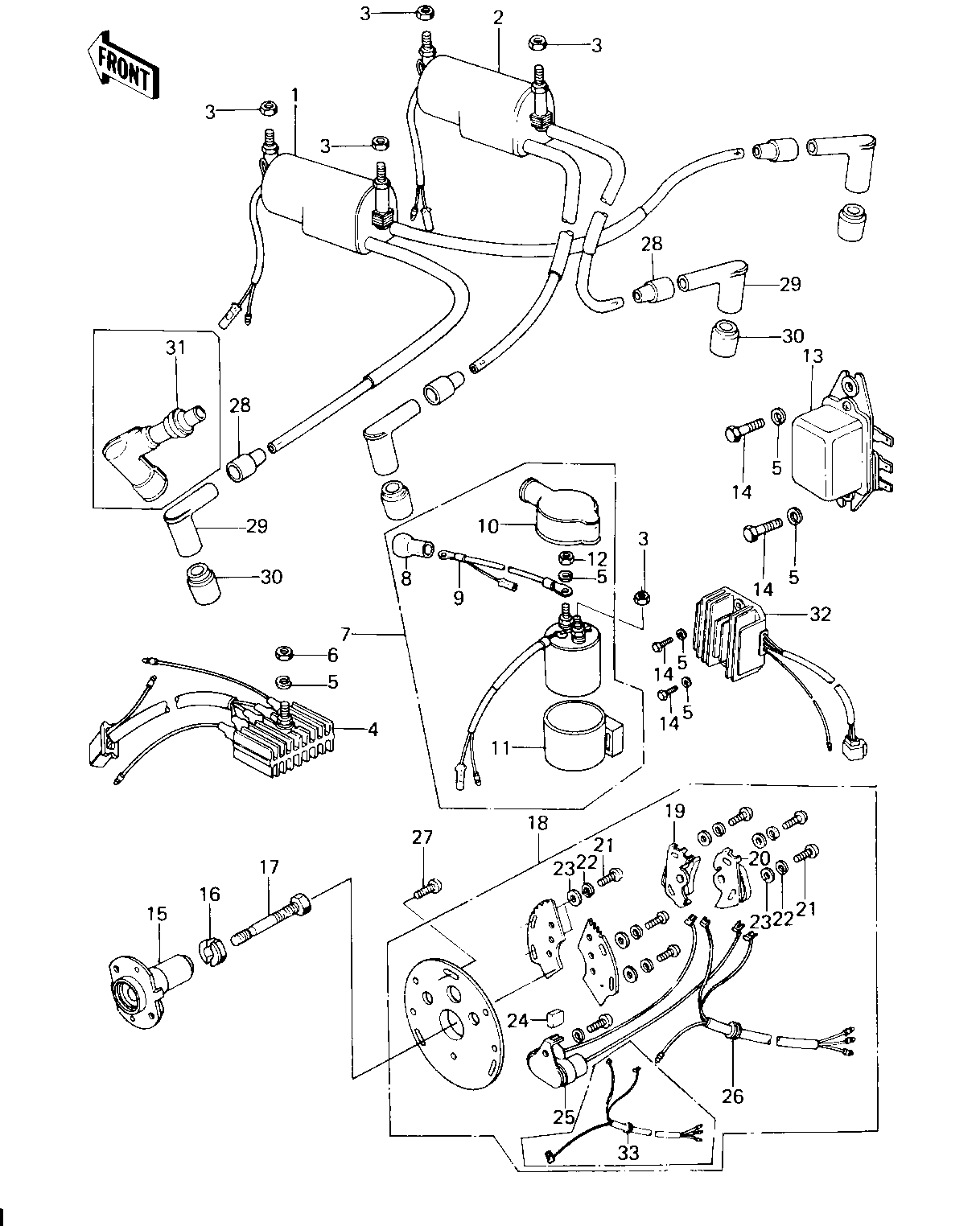

1978 Custom - IGNITION/REGULATOR/RECTIFIER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 21121 088 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 1 | 21121 1001 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 21121 089 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 21121 1002 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 3 | 92017 014 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 4 | 21061 031 | 1 | KZ650-C1 | |
| WASHER SPRING 6MM | 5 | 461F0600 | 1 | KZ650-C2 | |
| NUT 6MM | 6 | 311B0600 | 1 | KZ650-C1 | |
| UNAVAILABLE IN PRICE BOOK | 7 | 21164 007 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 8 | 21017 023 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 9 | 21095 009 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 10 | 21141 004 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 11 | 21064 002 | 1 | ||
| NUT 6MM | 12 | 312B0600 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 13 | 21066 018 | 1 | KZ650-C1 | |
| BOLT-UPSET | 14 | 112G0618 | 1 | KZ650-C1 | |
| BOLT-UPSET,6X16 | 14 | 112G0616 | 1 | KZ650-C2~ | |
| ADVANCER, AUTOMATIC TIMING | 15 | 21148 011 | 1 | ||
| WASHER, SPARK ADVANCER | 16 | 92022 224 | 1 | ||
| BOLT-8X63 | 17 | 92001-1397 | 1 | ||
| BREAKER, ASSY, CONTACT | 18 | 21135-012 | 1 | KZ650-C1/C2 | |
| BREAKER, ASSY, CONTACT | 18 | 21008-1007 | 1 | KZ650-C3 | |
| BREAKER CONTACT, #2, 3, RH | 19 | 21008 028 | 1 | ||
| BREAKER CONTACT, #1, 4, LH | 20 | 21008 027 | 1 | ||
| SCREW PAN HEAD 4X8 | 21 | 220B0408 | 1 | ||
| WASHER SPRING 4MM | 22 | 461F0400 | 1 | ||
| WASHER PLAIN 4MM | 23 | 410B0400 | 1 | ||
| FELT OIL | 24 | 21019 005 | 1 | ||
| CONDENSOR | 25 | 21013 037 | 1 | ||
| WIRING HARNESS, BREAKER | 26 | 21029 038 | 1 | USE FOR 21135-012 | |
| SCREW PAN HEAD 5X12 | 27 | 220B0512 | 1 | ||
| GROMMET B, SPARK PLUG CAP | 28 | 21132 005 | 1 | ||
| CAP, SPARK PLUG | 29 | 21130 024 | 1 | ||
| GROMMET A, SPARK PLUG CAP | 30 | 21131 004 | 1 | ||
| CAP,SPARK PLUG | 31 | 21160-005 | 1 | USE FOR CANADIAN MARKET | |
| REGULATOR | 32 | 21066-029 | 1 | KZ650-C2~ | |
| WIRING HARNESS,BREAK | 33 | 26001-1081 | 1 | USE FOR 21006 100 |
