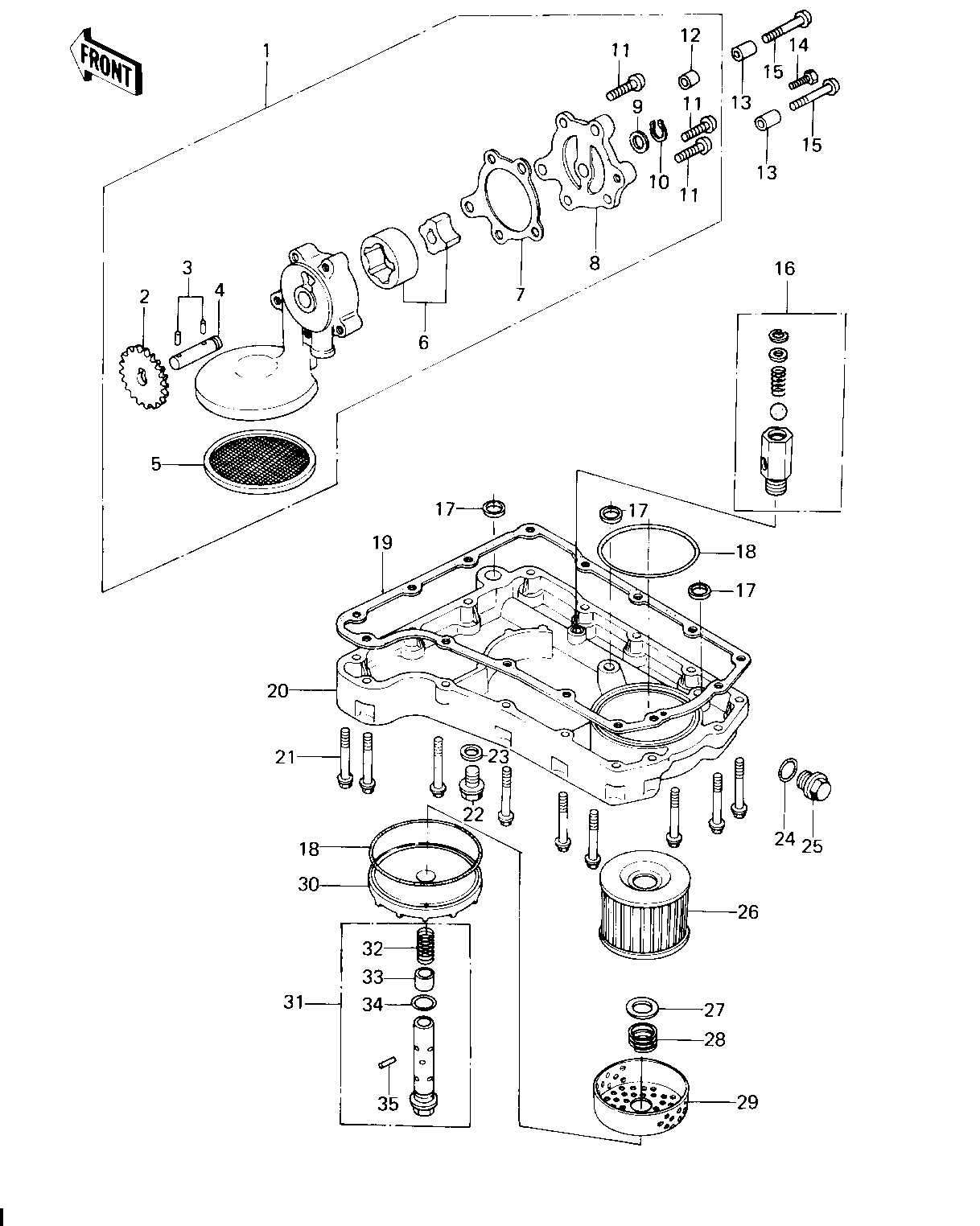

1978 Custom - OIL PUMP/OIL FILTER/OIL PAN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
OIL PUMP ASSY 1 16082-064 2
GEAR,OIL PUMP,57T 2 16085-025 2 57 T
PIN,DOWEL 3 92042-041 2
SHAFT,OIL PUMP 4 16086-004 2
STRAINER,OIL PUMP 5 16111-004 2
ROTOR ASSY,OIL PUMP 6 16154-003 2
GASKET,OIL PUMP COVE 7 16145-004 2
COVER,OIL PUMP 8 16142-005 2
WASHER,PLAIN 9 92022-311 2
CIRCLIP,11MM 10 480J1100 2
SCREW PAN HEAD 6X22 11 220B0622 2
PIN,DOWEL,8X10 12 92043-1302 2
PIN,DOWEL,6.2X8X28 13 92042-050 2
BOLT,HEX HEAD,6X45 14 92001-165 2
SCREW,CONTRUNK HEAD 15 221B0650 2
RELEAF VALVE ASSY 16 16130-1001 2
RELEAF VALVE ASSY 16 16130-1001 2
"O" RING 17 92055-077 2 O D = 19.5
"0" RING,90MM 18 671B2590 2
GASKET,OIL PAN 19 11009-1983 2
PAN-OIL 20 49034-5011 2
BOLT,FLANGED,6X25 21 130G0625 2
PLUG,OIL DRAIN,12X15 22 92066-1174 2
GASKET,DRIN PLUG 23 92065-097 2
RING-O 24 92055-1146 2
PLUG 25 92066-066 2
FILTER,OIL 26 16099-003 2
SHIM-KICK SHAFT 27 92022-144 2
WASHER,20.5X30X1.0 27 92022-1012 2
SPRING,OIL FILTER 28 92081-1018 2
SPRING,OIL FILTER 28 92081-1018 2
PLATE,OIL FILTER 29 13169-1110 2
COVER,OIL FILTER 30 16101-004 2
VALVE,OIL FILTER 31 16126-1108 2
UNAVAILABLE IN PRICE BOOK 32 92061-133 2
PISTON 33 92136-001 2
"0" RING,16MM 34 670B2016 2
SPRING PIN 35 92043-111 2
